WHEN CONNECTING TO THE NETWORK THROUGH A PC

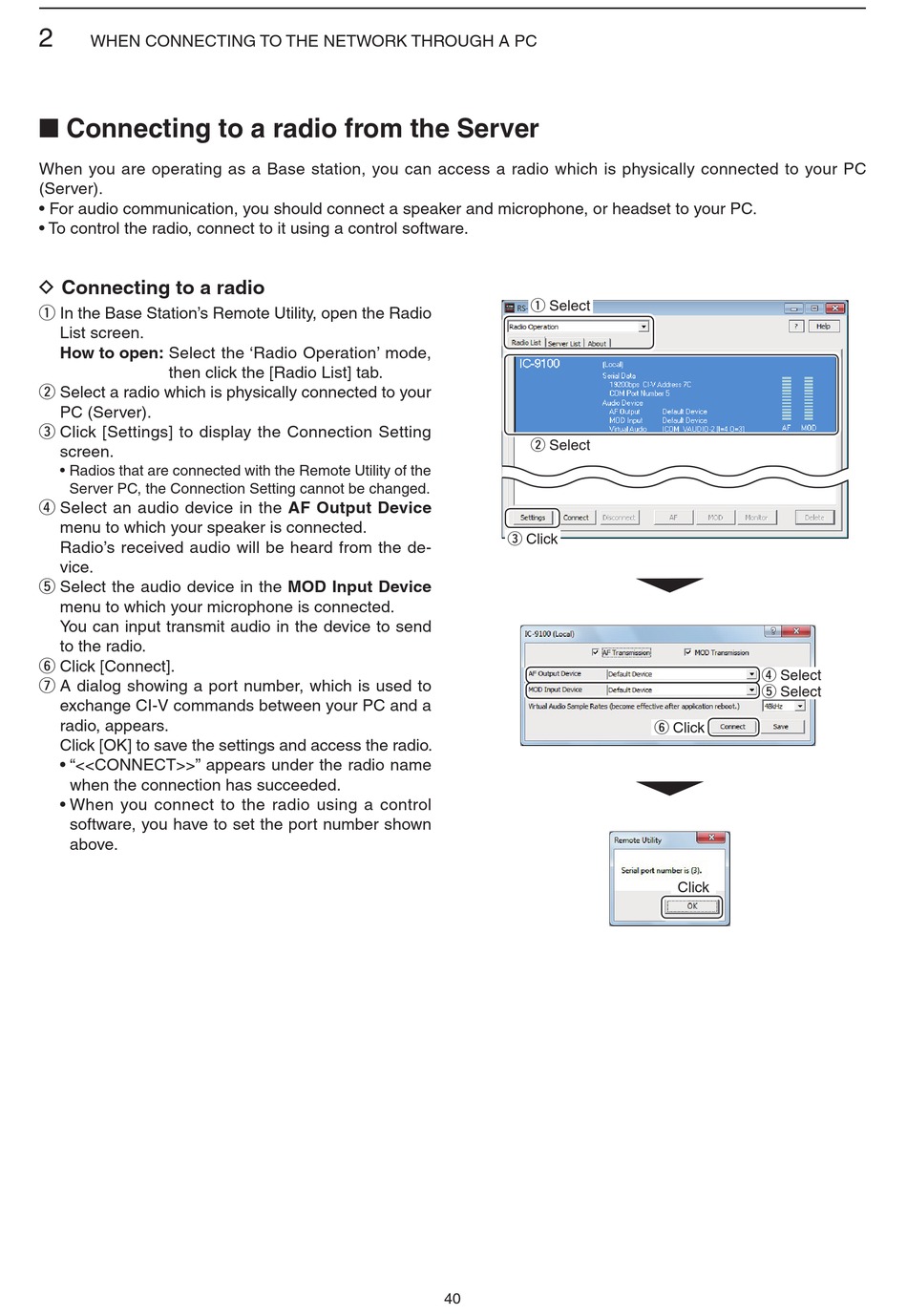

■ Connecting to a radio from the Server

When you are operating as a Base station, you can access a radio which is physically connected to your PC
(Server).
• For audio communication, you should connect a speaker and microphone, or headset to your PC.
• To control the radio, connect to it using a control software.

D Connecting to a radio

q In the Base Station's Remote Utility, open the Radio
List screen.
How to open: Select the 'Radio Operation' mode,
then click the [Radio List] tab.
w Select a radio which is physically connected to your
PC (Server).
e Click [Settings] to display the Connection Setting
screen.
• Radios that are connected with the Remote Utility of the
Server PC, the Connection Setting cannot be changed.
r Select an audio device in the AF Output Device
menu to which your speaker is connected.
Radio's received audio will be heard from the de-
vice.
t Select the audio device in the MOD Input Device
menu to which your microphone is connected.
You can input transmit audio in the device to send
to the radio.
y Click [Connect].
u A dialog showing a port number, which is used to
exchange CI-V commands between your PC and a
radio, appears.
Click [OK] to save the settings and access the radio.
• "<<CONNECT>>" appears under the radio name
when the connection has succeeded.
• When you connect to the radio using a control
software, you have to set the port number shown
above.
q Select
w Select
e Click
40
r Select
t Select
y Click
Click
