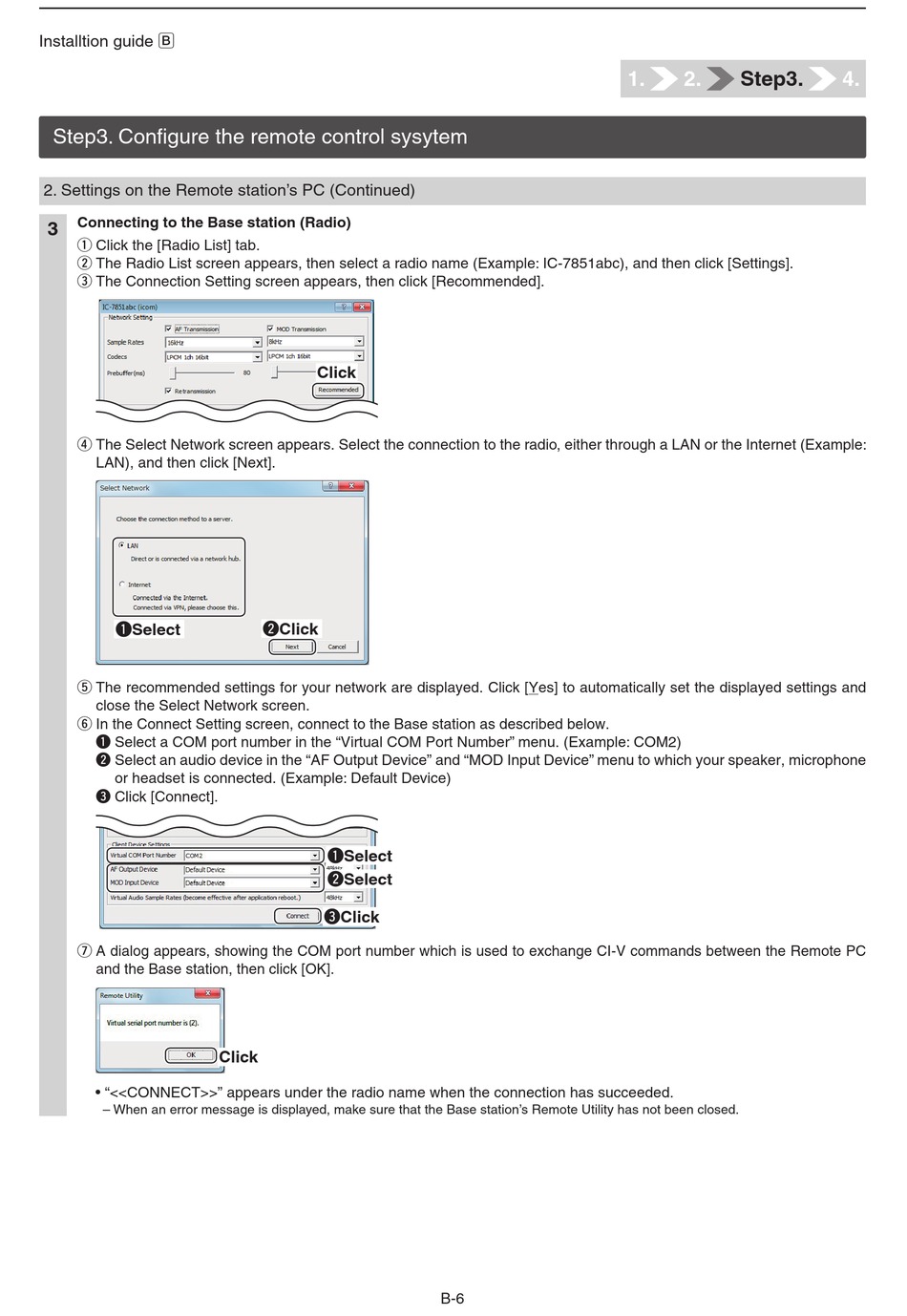

Icom RS-BA1 Installation Manual page 18

Installtion guide B
Step3. Configure the remote control sysytem
2. Settings on the Remote station's PC (Continued)
Connecting to the Base station (Radio)
3
q Click the [Radio List] tab.
w The Radio List screen appears, then select a radio name (Example: IC-7851abc), and then click [Settings].
e The Connection Setting screen appears, then click [Recommended].
r The Select Network screen appears. Select the connection to the radio, either through a LAN or the Internet (Example:
LAN), and then click [Next].
qSelect
t The recommended settings for your network are displayed. Click [Yes] to automatically set the displayed settings and
close the Select Network screen.
y In the Connect Setting screen, connect to the Base station as described below.
q Select a COM port number in the "Virtual COM Port Number" menu. (Example: COM2)
w Select an audio device in the "AF Output Device" and "MOD Input Device" menu to which your speaker, microphone
or headset is connected. (Example: Default Device)
e Click [Connect].
u A dialog appears, showing the COM port number which is used to exchange CI-V commands between the Remote PC
and the Base station, then click [OK].
• "<<CONNECT>>" appears under the radio name when the connection has succeeded.
– When an error message is displayed, make sure that the Base station's Remote Utility has not been closed.
Click
wClick
qSelect
wSelect
eClick
Click
B-6
