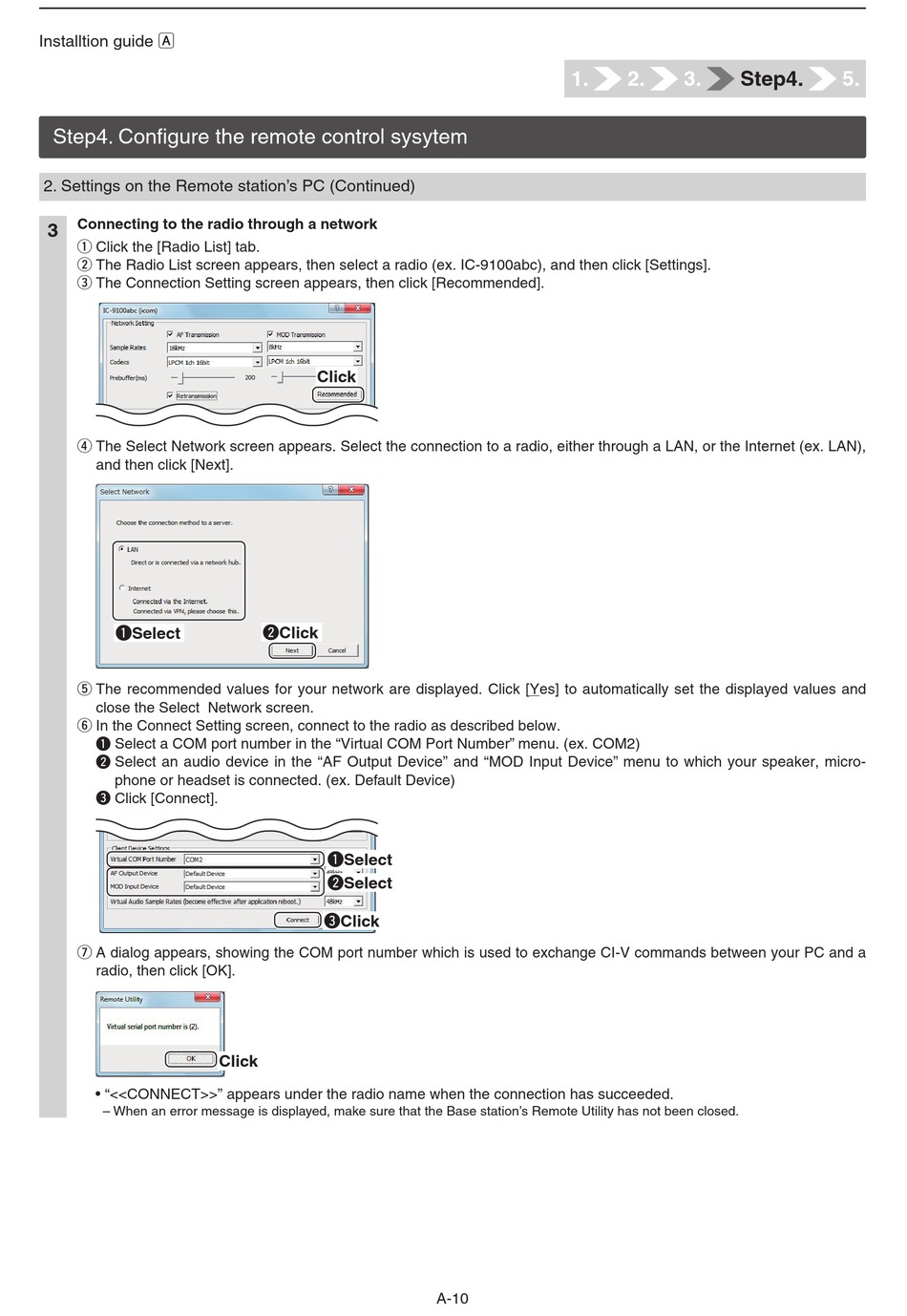

Installtion guide A
Step4. Configure the remote control sysytem
2. Settings on the Remote station's PC (Continued)
Connecting to the radio through a network
3
q Click the [Radio List] tab.
w The Radio List screen appears, then select a radio (ex. IC-9100abc), and then click [Settings].
e The Connection Setting screen appears, then click [Recommended].
r The Select Network screen appears. Select the connection to a radio, either through a LAN, or the Internet (ex. LAN),
and then click [Next].
qSelect
t The recommended values for your network are displayed. Click [Yes] to automatically set the displayed values and
close the Select Network screen.
y In the Connect Setting screen, connect to the radio as described below.
q Select a COM port number in the "Virtual COM Port Number" menu. (ex. COM2)
w Select an audio device in the "AF Output Device" and "MOD Input Device" menu to which your speaker, micro-
phone or headset is connected. (ex. Default Device)
e Click [Connect].
u A dialog appears, showing the COM port number which is used to exchange CI-V commands between your PC and a
radio, then click [OK].
• "<<CONNECT>>" appears under the radio name when the connection has succeeded.
– When an error message is displayed, make sure that the Base station's Remote Utility has not been closed.
Click
wClick
qSelect
wSelect
eClick
Click
1.
A-10
2. 3. Step4. 5.
