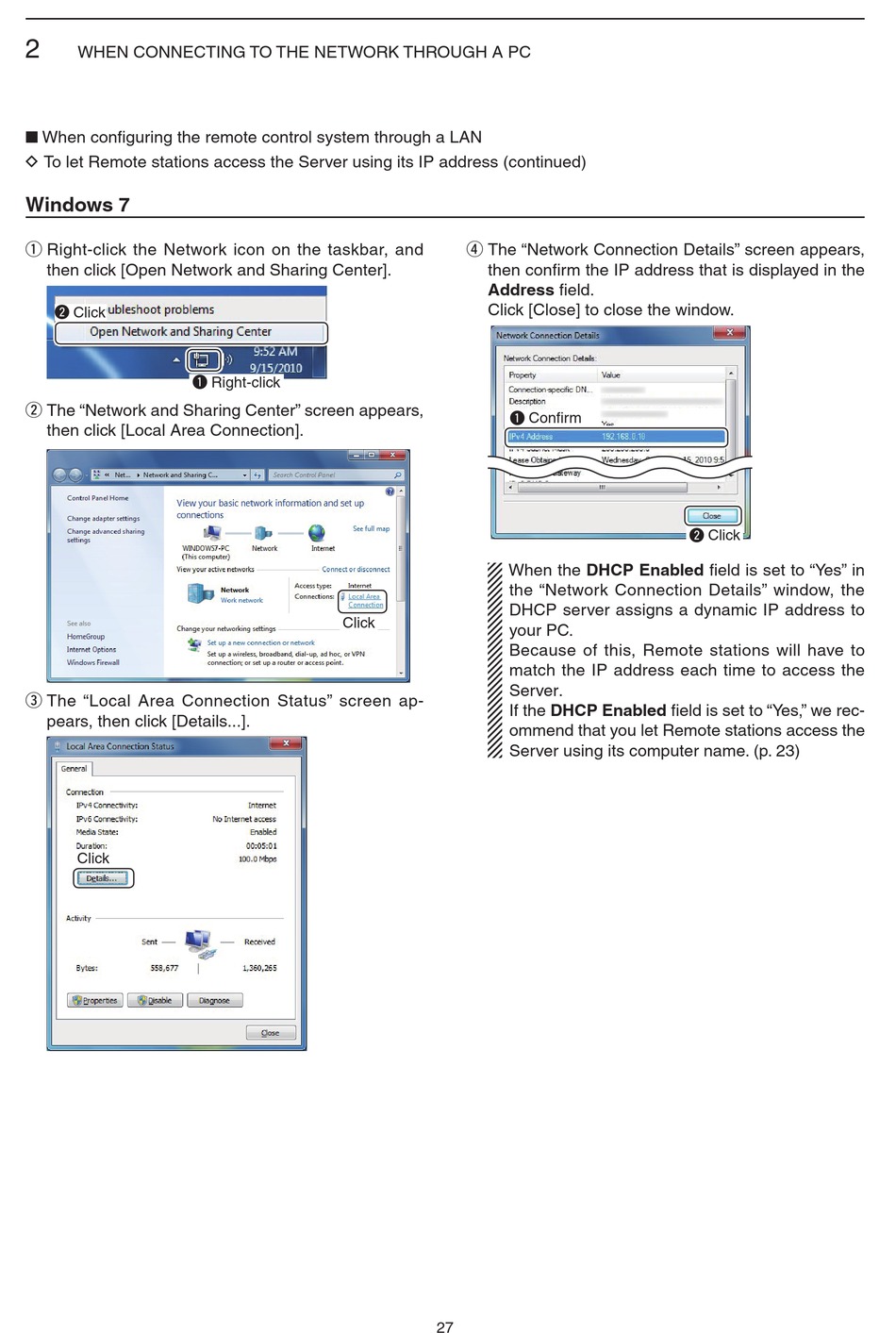

Icom RS-BA1 Installation Manual page 53

2
WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ When confi guring the remote control system through a LAN
D To let Remote stations access the Server using its IP address (continued)
Windows 7
q Right-click the Network icon on the taskbar, and
then click [Open Network and Sharing Center].
w Click
q Right-click
w The "Network and Sharing Center" screen appears,
then click [Local Area Connection].
e The "Local Area Connection Status" screen ap-
pears, then click [Details...].
Click
r The "Network Connection Details" screen appears,
then confi rm the IP address that is displayed in the
Address fi eld.
Click [Close] to close the window.
q Confi rm
When the DHCP Enabled fi eld is set to "Yes" in
the "Network Connection Details" window, the
DHCP server assigns a dynamic IP address to
Click
your PC.
Because of this, Remote stations will have to
match the IP address each time to access the
Server.
If the DHCP Enabled fi eld is set to "Yes," we rec-
ommend that you let Remote stations access the
Server using its computer name. (p. 23)
27
w Click
