5

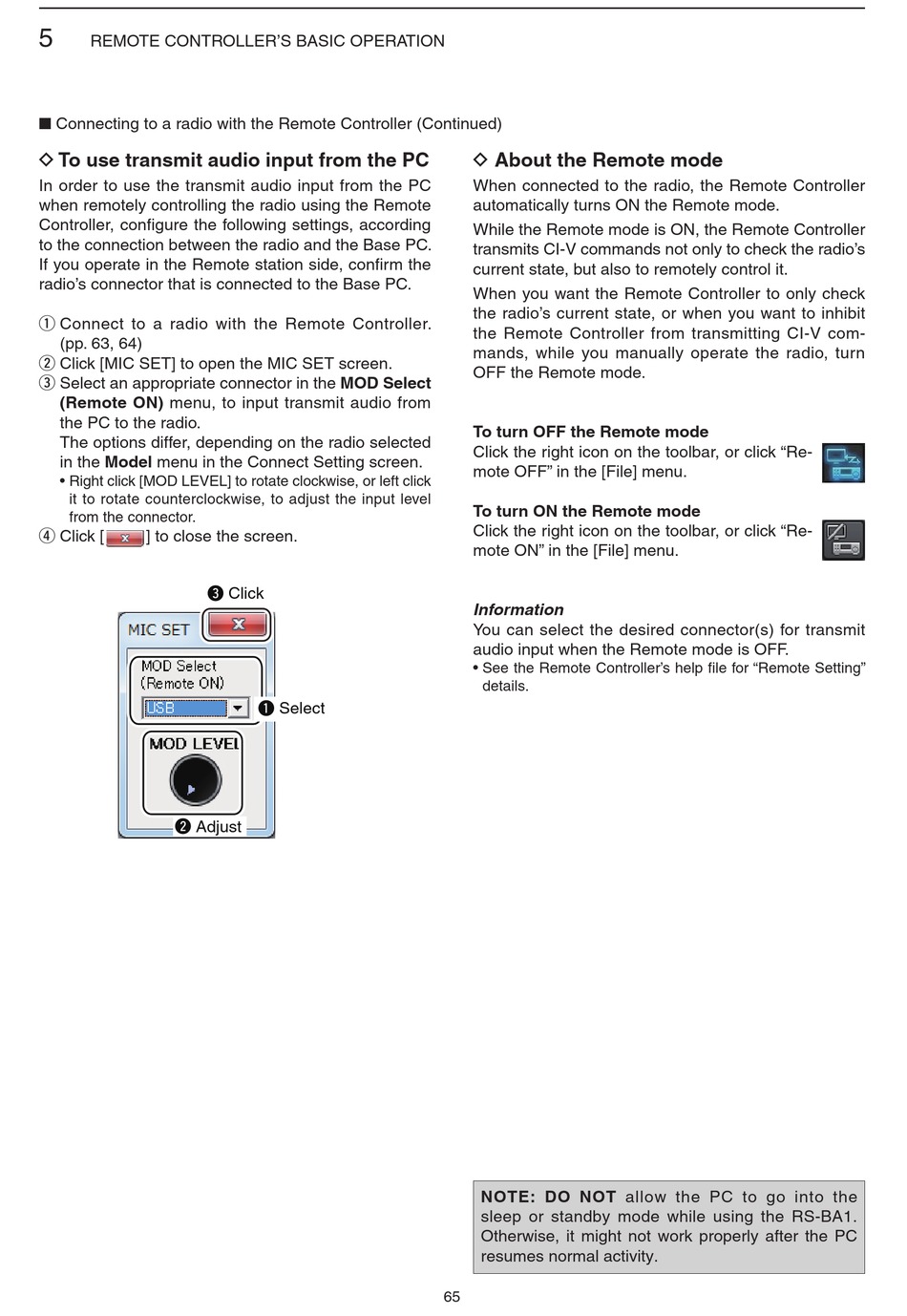

REMOTE CONTROLLER'S BASIC OPERATION
■ Connecting to a radio with the Remote Controller (Continued)

D To use transmit audio input from the PC

In order to use the transmit audio input from the PC
when remotely controlling the radio using the Remote
Controller, confi gure the following settings, according
to the connection between the radio and the Base PC.
If you operate in the Remote station side, confi rm the
radio's connector that is connected to the Base PC.
q Connect to a radio with the Remote Controller.
(pp. 63, 64)
w Click [MIC SET] to open the MIC SET screen.
e Select an appropriate connector in the MOD Select
(Remote ON) menu, to input transmit audio from
the PC to the radio.
The options differ, depending on the radio selected
in the Model menu in the Connect Setting screen.
• Right click [MOD LEVEL] to rotate clockwise, or left click
it to rotate counterclockwise, to adjust the input level
from the connector.
r Click [ ] to close the screen.
e Click
w Adjust
q Select

D About the Remote mode

When connected to the radio, the Remote Controller
automatically turns ON the Remote mode.
While the Remote mode is ON, the Remote Controller
transmits CI-V commands not only to check the radio's
current state, but also to remotely control it.
When you want the Remote Controller to only check
the radio's current state, or when you want to inhibit
the Remote Controller from transmitting CI-V com-
mands, while you manually operate the radio, turn
OFF the Remote mode.
To turn OFF the Remote mode
Click the right icon on the toolbar, or click "Re-
mote OFF" in the [File] menu.
To turn ON the Remote mode
Click the right icon on the toolbar, or click "Re-
mote ON" in the [File] menu.
Information
You can select the desired connector(s) for transmit
audio input when the Remote mode is OFF.
• See the Remote Controller's help fi le for "Remote Setting"
details.
NOTE: DO NOT allow the PC to go into the
sleep or standby mode while using the RS-BA1.
Otherwise, it might not work properly after the PC
resumes normal activity.
65
