D To Terminate A Connection - Icom RS-BA1 Installation Manual

2
WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ To monitor, or disconnect a Remote station (Continued)

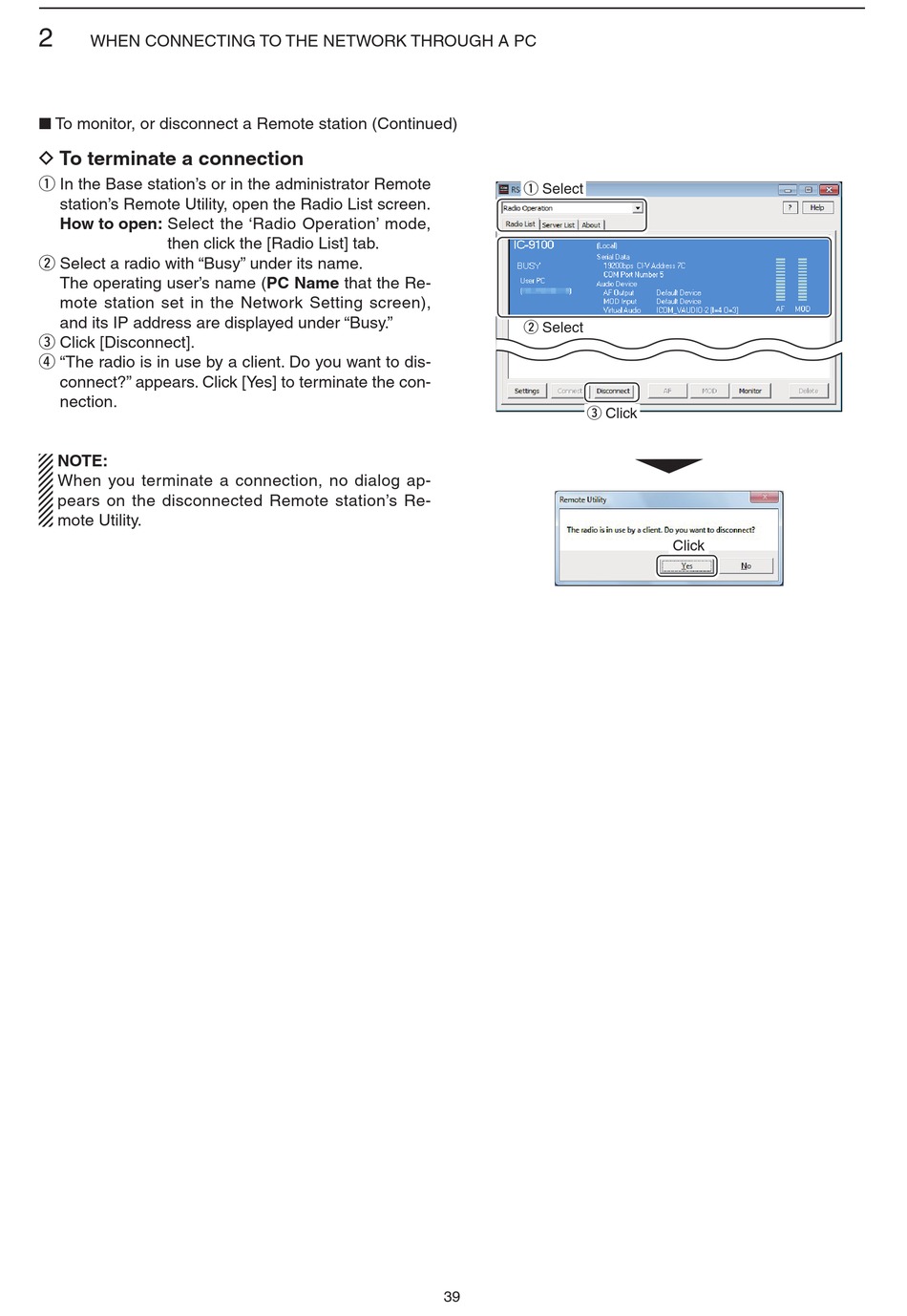

D To terminate a connection

q In the Base station's or in the administrator Remote
station's Remote Utility, open the Radio List screen.
How to open: Select the 'Radio Operation' mode,
then click the [Radio List] tab.
w Select a radio with "Busy" under its name.
The operating user's name (PC Name that the Re-
mote station set in the Network Setting screen),
and its IP address are displayed under "Busy."
e Click [Disconnect].
r "The radio is in use by a client. Do you want to dis-
connect?" appears. Click [Yes] to terminate the con-
nection.
NOTE:
When you terminate a connection, no dialog ap-
pears on the disconnected Remote station's Re-
mote Utility.
q Select
w Select
e Click
39
Click
