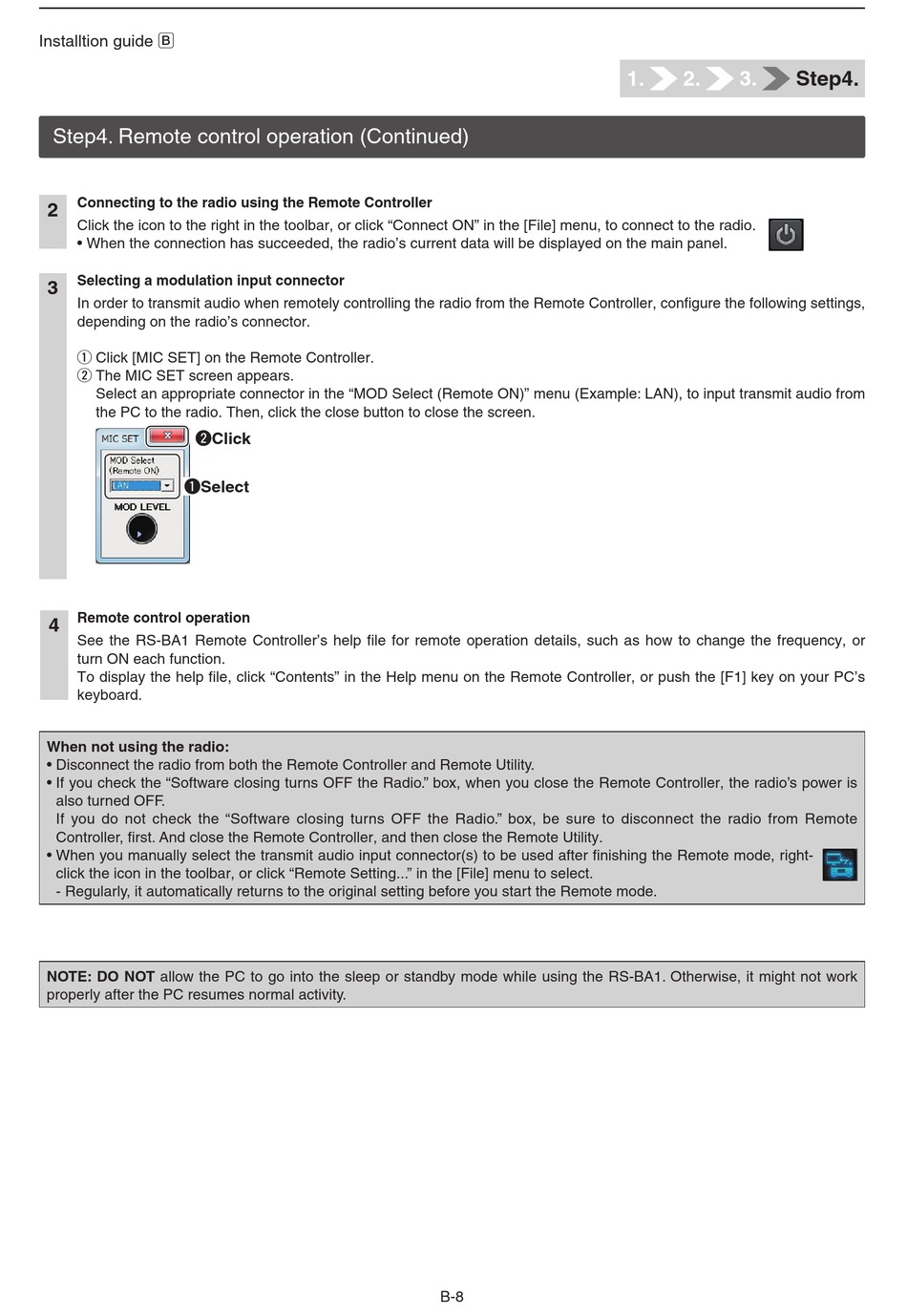

Icom RS-BA1 Installation Manual page 20

Installtion guide B
Step4. Remote control operation (Continued)
Connecting to the radio using the Remote Controller
2
Click the icon to the right in the toolbar, or click "Connect ON" in the [File] menu, to connect to the radio.
• When the connection has succeeded, the radio's current data will be displayed on the main panel.
Selecting a modulation input connector
3
In order to transmit audio when remotely controlling the radio from the Remote Controller, configure the following settings,
depending on the radio's connector.
q Click [MIC SET] on the Remote Controller.
w The MIC SET screen appears.
Select an appropriate connector in the "MOD Select (Remote ON)" menu (Example: LAN), to input transmit audio from
the PC to the radio. Then, click the close button to close the screen.
wClick
qSelect
Remote control operation
4
See the RS-BA1 Remote Controller's help file for remote operation details, such as how to change the frequency, or
turn ON each function.
To display the help file, click "Contents" in the Help menu on the Remote Controller, or push the [F1] key on your PC's
keyboard.
When not using the radio:
• Disconnect the radio from both the Remote Controller and Remote Utility.
• If you check the "Software closing turns OFF the Radio." box, when you close the Remote Controller, the radio's power is
also turned OFF.
If you do not check the "Software closing turns OFF the Radio." box, be sure to disconnect the radio from Remote
Controller, first. And close the Remote Controller, and then close the Remote Utility.
• When you manually select the transmit audio input connector(s) to be used after finishing the Remote mode, right-
click the icon in the toolbar, or click "Remote Setting..." in the [File] menu to select.
- Regularly, it automatically returns to the original setting before you start the Remote mode.
NOTE: DO NOT allow the PC to go into the sleep or standby mode while using the RS-BA1. Otherwise, it might not work
properly after the PC resumes normal activity.
B-8
