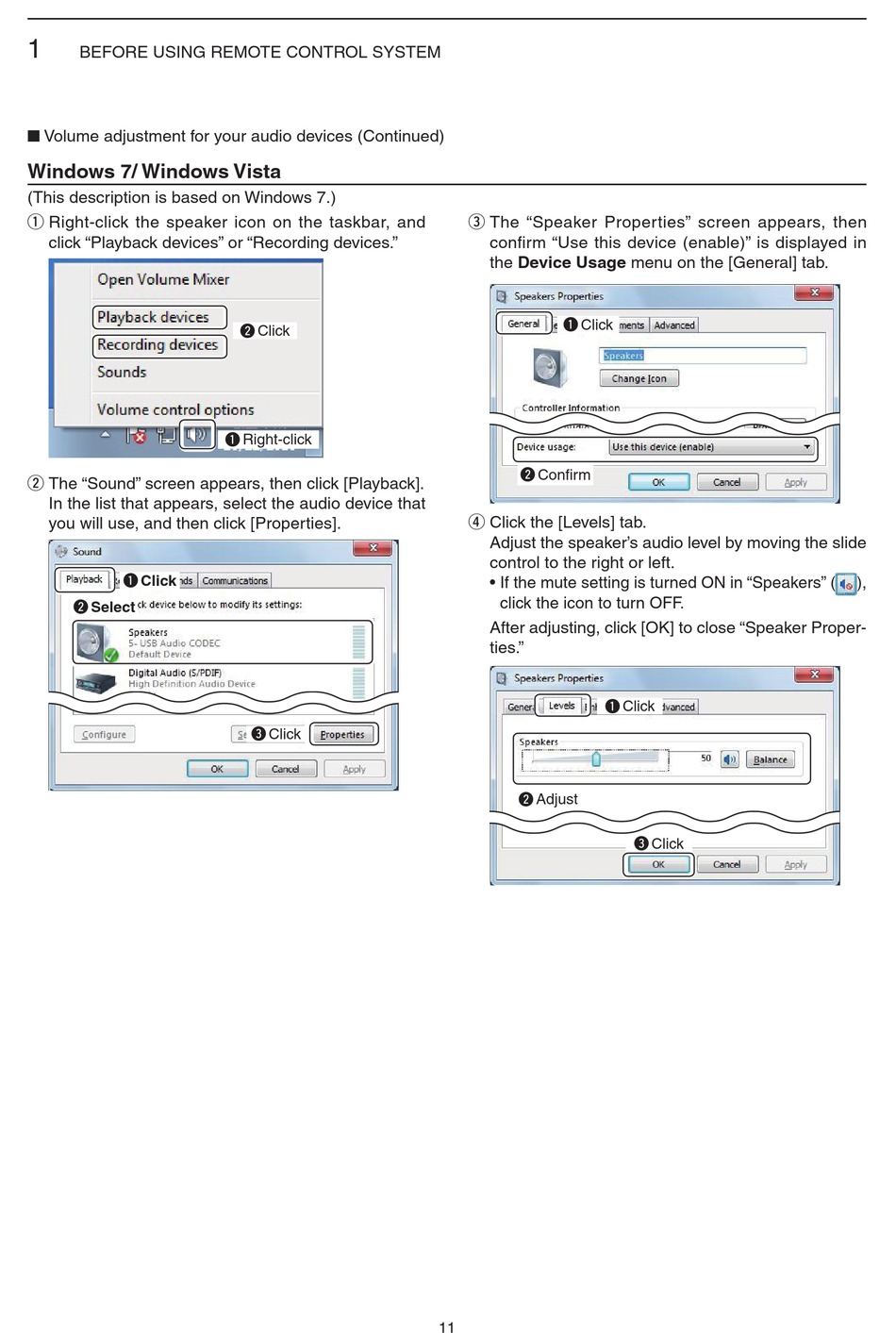

Icom RS-BA1 Installation Manual page 37

1
BEFORE USING REMOTE CONTROL SYSTEM
■ Volume adjustment for your audio devices (Continued)
Windows 7/ Windows Vista
(This description is based on Windows 7.)
q Right-click the speaker icon on the taskbar, and
click "Playback devices" or "Recording devices."
w The "Sound" screen appears, then click [Playback].
In the list that appears, select the audio device that
you will use, and then click [Properties].
q Click
w Select
w Click
q Right-click
e Click
e The "Speaker Properties" screen appears, then
confirm "Use this device (enable)" is displayed in
the Device Usage menu on the [General] tab.
q Click
w Confirm
r Click the [Levels] tab.
Adjust the speaker's audio level by moving the slide
control to the right or left.
• If the mute setting is turned ON in "Speakers" (
click the icon to turn OFF.
After adjusting, click [OK] to close "Speaker Proper-
ties."
q Click
w Adjust
11
e Click
),
