D Radio's Basic Information Setting - Icom RS-BA1 Installation Manual

2
WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ Radio registration (Continued)

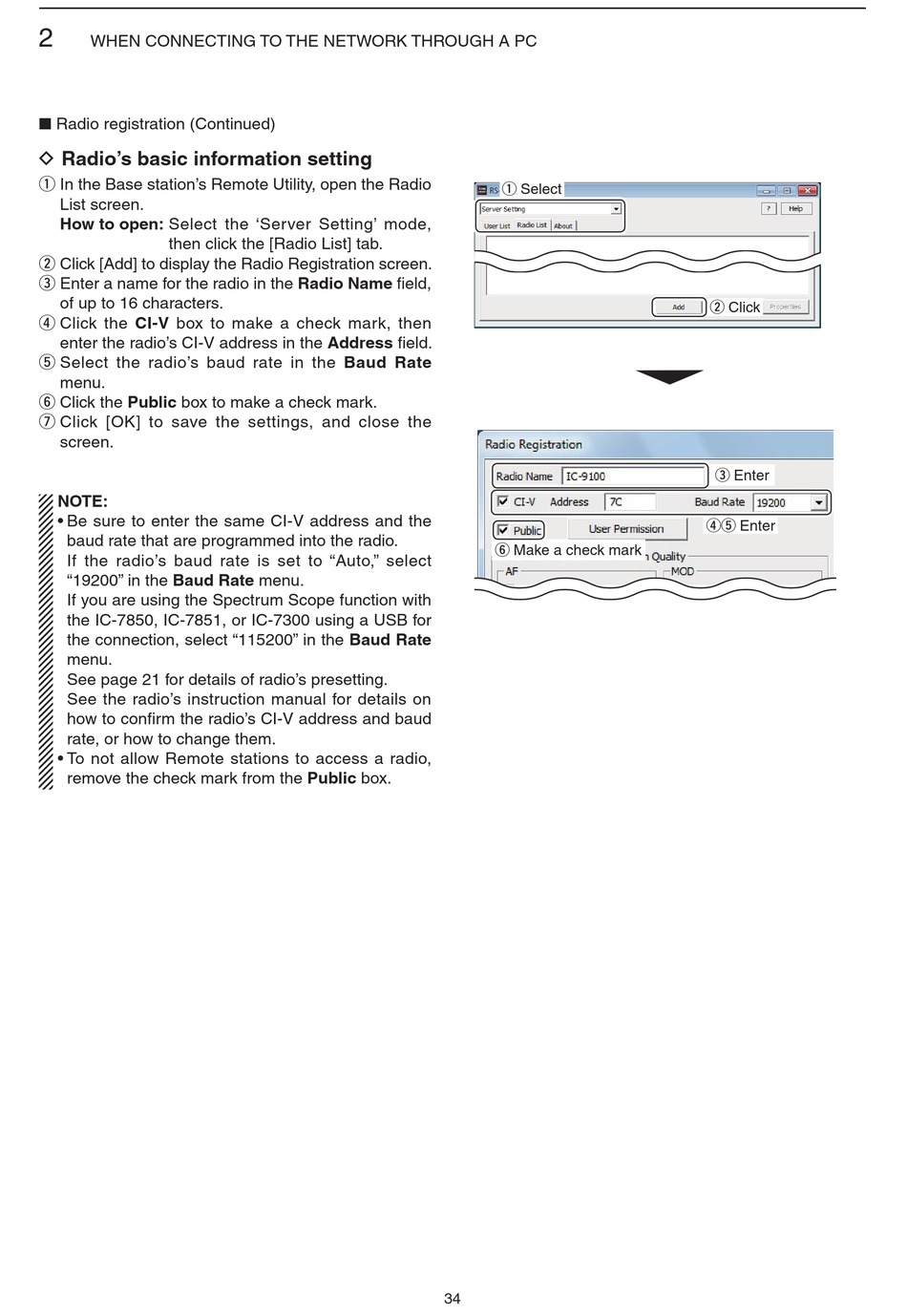

D Radio's basic information setting

q In the Base station's Remote Utility, open the Radio
List screen.
How to open: Select the 'Server Setting' mode,
then click the [Radio List] tab.
w Click [Add] to display the Radio Registration screen.
e Enter a name for the radio in the Radio Name field,
of up to 16 characters.
r Click the CI-V box to make a check mark, then
enter the radio's CI-V address in the Address field.
t Select the radio's baud rate in the Baud Rate
menu.
y Click the Public box to make a check mark.
u Click [OK] to save the settings, and close the
screen.
NOTE:
• Be sure to enter the same CI-V address and the
baud rate that are programmed into the radio.
If the radio's baud rate is set to "Auto," select
"19200" in the Baud Rate menu.
If you are using the Spectrum Scope function with
the IC-7850, IC-7851, or IC-7300 using a USB for
the connection, select "115200" in the Baud Rate
menu.
See page 21 for details of radio's presetting.
See the radio's instruction manual for details on
how to confirm the radio's CI-V address and baud
rate, or how to change them.
• To not allow Remote stations to access a radio,
remove the check mark from the Public box.
q Select
y Make a check mark
34
w Click
e Enter
rt Enter
