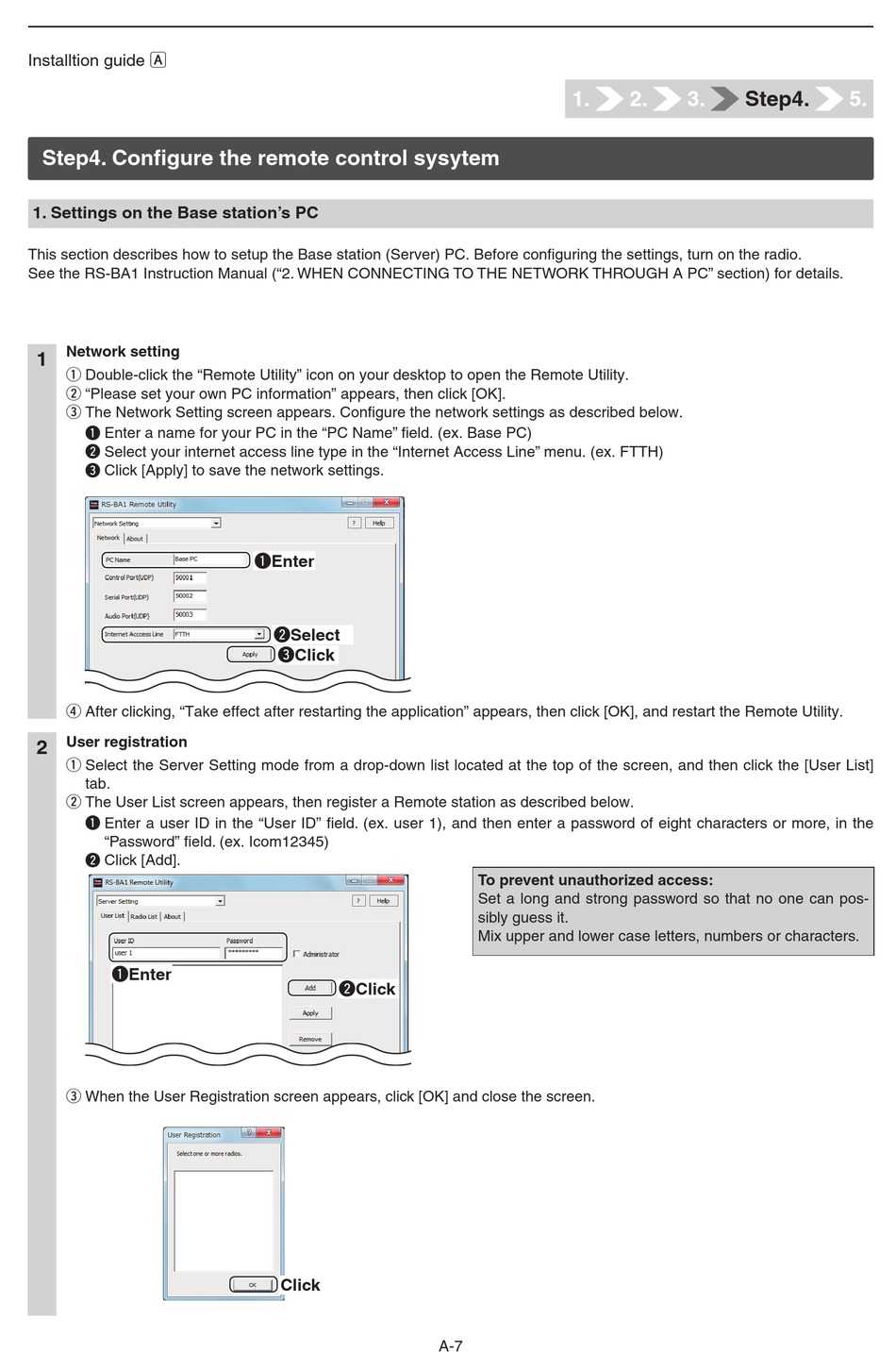

Icom RS-BA1 Installation Manual page 7

Installtion guide A
Step4. Configure the remote control sysytem
1. Settings on the Base station's PC
This section describes how to setup the Base station (Server) PC. Before configuring the settings, turn on the radio.
See the RS-BA1 Instruction Manual ("2. WHEN CONNECTING TO THE NETWORK THROUGH A PC" section) for details.
Network setting
1
q Double-click the "Remote Utility" icon on your desktop to open the Remote Utility.
w "Please set your own PC information" appears, then click [OK].
e The Network Setting screen appears. Configure the network settings as described below.
q Enter a name for your PC in the "PC Name" field. (ex. Base PC)
w Select your internet access line type in the "Internet Access Line" menu. (ex. FTTH)
e Click [Apply] to save the network settings.
r After clicking, "Take effect after restarting the application" appears, then click [OK], and restart the Remote Utility.
User registration
2
q Select the Server Setting mode from a drop-down list located at the top of the screen, and then click the [User List]
tab.
w The User List screen appears, then register a Remote station as described below.
q Enter a user ID in the "User ID" field. (ex. user 1), and then enter a password of eight characters or more, in the
"Password" field. (ex. Icom12345)
w Click [Add].
qEnter
e When the User Registration screen appears, click [OK] and close the screen.
qEnter
wSelect
eClick
wClick
Click
1.
To prevent unauthorized access:
Set a long and strong password so that no one can pos-
sibly guess it.
Mix upper and lower case letters, numbers or characters.
A-7
