3

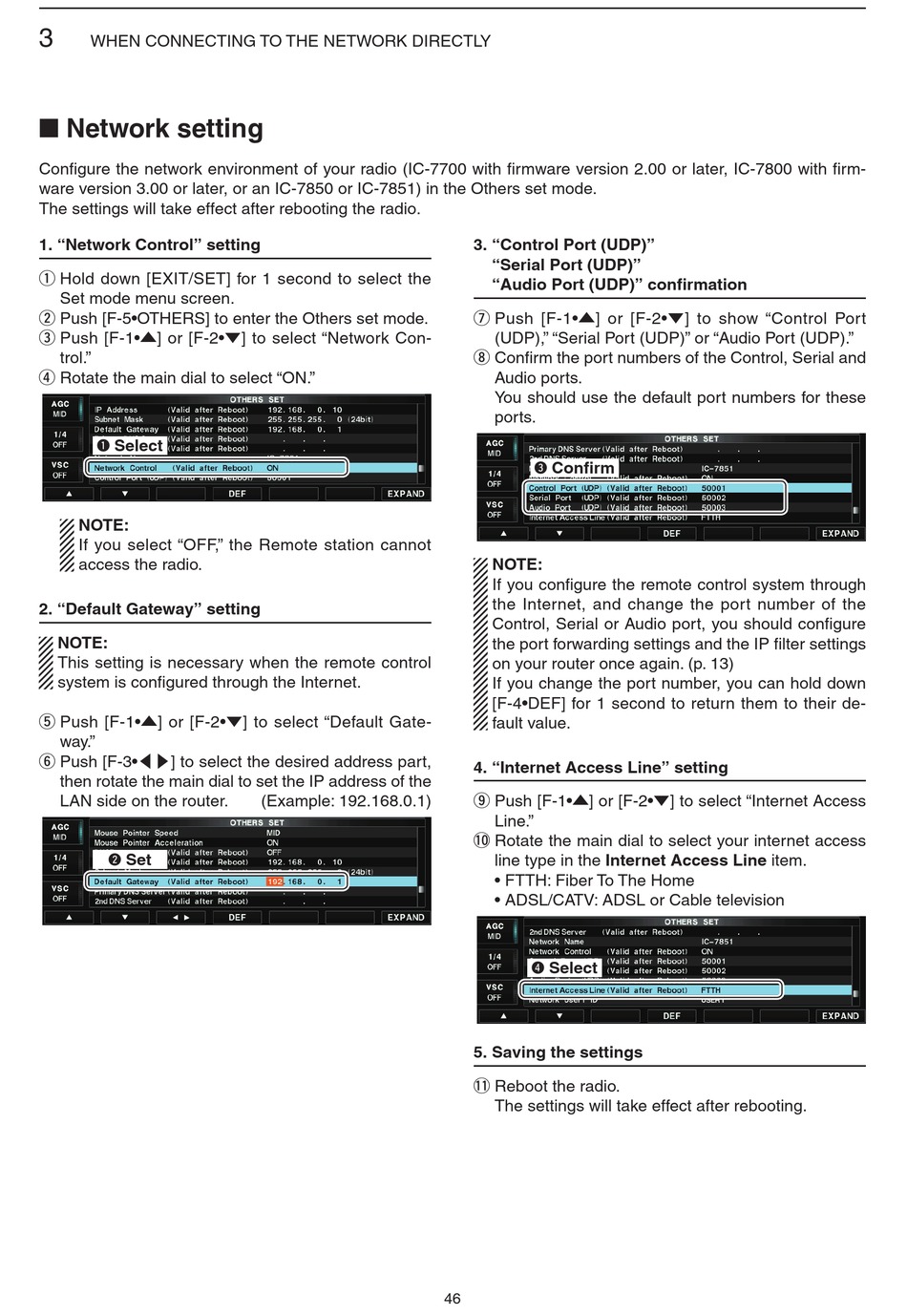

WHEN CONNECTING TO THE NETWORK DIRECTLY

■ Network setting

Configure the network environment of your radio (IC-7700 with firmware version 2.00 or later, IC-7800 with firm-
ware version 3.00 or later, or an IC-7850 or IC-7851) in the Others set mode.
The settings will take effect after rebooting the radio.
1. "Network Control" setting
q Hold down [EXIT/SET] for 1 second to select the
Set mode menu screen.
w Push [F-5•OTHERS] to enter the Others set mode.
e Push [F-1•▲] or [F-2•▼] to select "Network Con-
trol."
r Rotate the main dial to select "ON."
Select
q
NOTE:
If you select "OFF," the Remote station cannot
access the radio.
2. "Default Gateway" setting
NOTE:
This setting is necessary when the remote control
system is configured through the Internet.
t Push [F-1•▲] or [F-2•▼] to select "Default Gate-
way."
y Push [F-3•◀▶] to select the desired address part,
then rotate the main dial to set the IP address of the
LAN side on the router.
Set
w
(Example: 192.168.0.1)
3. "Control Port (UDP)"
"Serial Port (UDP)"
"Audio Port (UDP)" confirmation
u Push [F-1•▲] or [F-2•▼] to show "Control Port
(UDP)," "Serial Port (UDP)" or "Audio Port (UDP)."
i Confirm the port numbers of the Control, Serial and
Audio ports.
You should use the default port numbers for these
ports.
Confirm
e
NOTE:
If you configure the remote control system through
the Internet, and change the port number of the
Control, Serial or Audio port, you should configure
the port forwarding settings and the IP filter settings
on your router once again. (p. 13)
If you change the port number, you can hold down
[F-4•DEF] for 1 second to return them to their de-
fault value.
4. "Internet Access Line" setting
o Push [F-1•▲] or [F-2•▼] to select "Internet Access
Line."
!0 Rotate the main dial to select your internet access
line type in the Internet Access Line item.
• FTTH: Fiber To The Home
• ADSL/CATV: ADSL or Cable television
Select
r
5. Saving the settings
!1 Reboot the radio.
The settings will take effect after rebooting.
