4. Software Control Options

4.7.2. Decoder-related Settings

OSD Settings (the On-Screen Display Feature)
Certain system messages can be displayed on the connected screen;
the followings are defined:
▪ Enable OSD: set it to 'ON' state to enable the OSD feature.
▪ HDCP messages: 'HDCP failed'
USB messages: 'Requesting USB', 'Starting USB', 'Stopping USB'
▪
▪ Video quality messages: 'Graphics mode', 'Movie mode'
▪ Dither messages: reserved
Other messages: reserved
▪
Press the Apply changes button and restart to save the new settings.
Keyboard Shortcuts
A keyboard connected to the USB 1.1 port of a Decoder can be used to
change the assigned Encoder to another one. Thus, the input source
of a Decoder can be changed quickly and easily.
INFO:
The Video Stream ID of the Decoder is changed when a
command is executed.
The shortcut can be set:
▪ to select a certain stream directly, or
▪ to select the next/previous stream in the list.
Setting (Changing) a Shortcut
Step 1. Open the web page of the desired Decoder and navigate to the
Advanced Settings page.
Step 2. Connect an USB keyboard to that computer directly, or through
the desired Decoder and the Encoder (make sure the Encoder
is connected to the computer via USB).
Step 3. Place the cursor in the desired Shortcut box.
Step 4. Press the desired key combination; the new setting will be
displayed and stored.
Executing a Command (Calling a Shortcut)
Connect the keyboard to an USB 1.1 port (not the USB 2.0!) of the
desired Decoder. Press the key(s) three times quickly (within 750 ms).
Stream ID List
You can set a custom list of streams, thus, the Previous/Next stream
shortcuts will select the streams in the desired order.
Scaler Settings
The same options as in the Scaler settings section.
VINX-1x0-HDMI Extenders – User's Manual

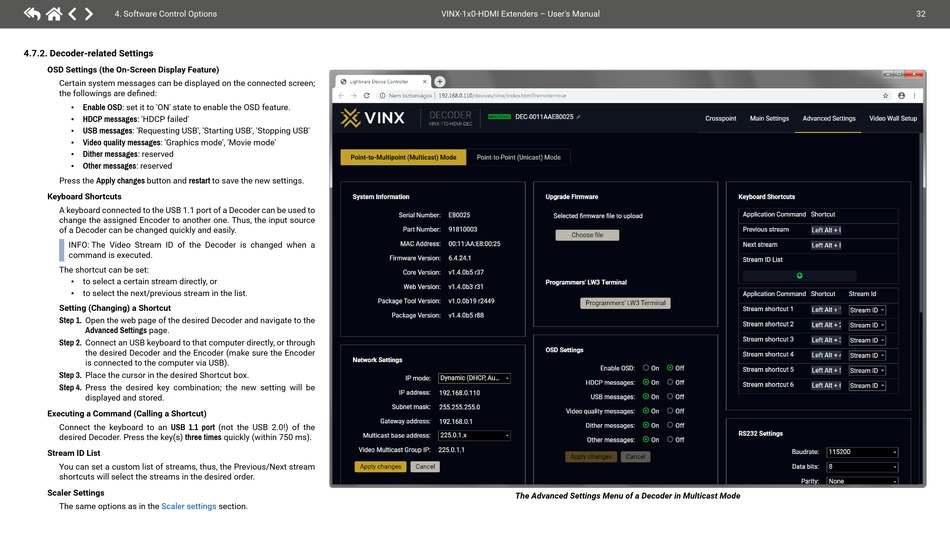

The Advanced Settings Menu of a Decoder in Multicast Mode
