4. Software Control Options

4.4.2. Video Status and Settings (Encoder)

The properties of the incoming and outgoing video signals are
displayed in the following sections.

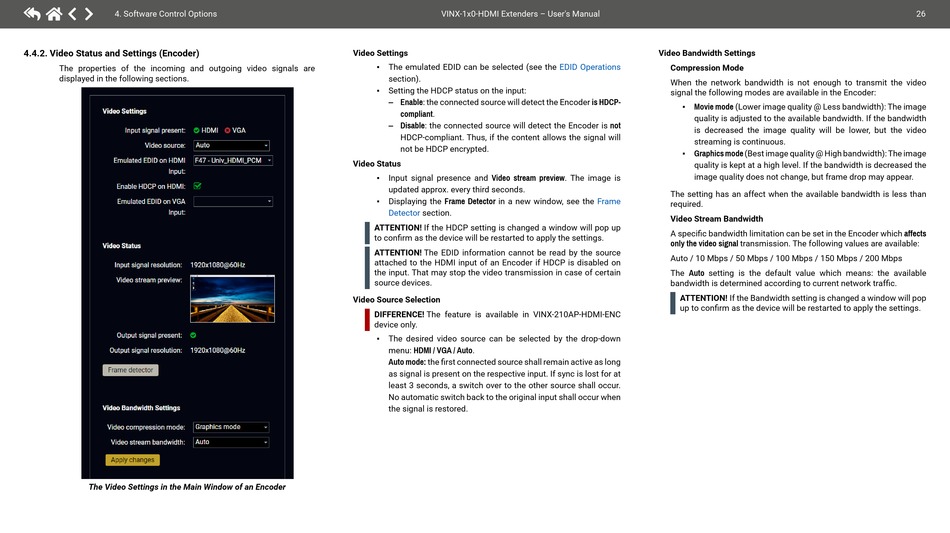

The Video Settings in the Main Window of an Encoder
VINX-1x0-HDMI Extenders – User's Manual
Video Settings
▪ The emulated EDID can be selected (see the
section).
Setting the HDCP status on the input:
▪
– Enable: the connected source will detect the Encoder is HDCP-
compliant.
– Disable: the connected source will detect the Encoder is not
HDCP-compliant. Thus, if the content allows the signal will
not be HDCP encrypted.
Video Status
Input signal presence and Video stream preview. The image is
▪
updated approx. every third seconds.
▪ Displaying the Frame Detector in a new window, see the
Detector section.
AAAENAIING!
If the HDCP setting is changed a window will pop up
to confirm as the device will be restarted to apply the settings.

AAAENAIING! The EDID information cannot be read by the source
attached to the HDMI input of an Encoder if HDCP is disabled on
the input. That may stop the video transmission in case of certain
source devices.
Video Source Selection
DIIIERENCEG!
The feature is available in VINX-210AP-HDMI-ENC
device only.
The desired video source can be selected by the drop-down
▪
menu: HDMI / VGA / Auto.
Auto mode: the first connected source shall remain active as long
as signal is present on the respective input. If sync is lost for at
least 3 seconds, a switch over to the other source shall occur.
No automatic switch back to the original input shall occur when
the signal is restored.
Video Bandwidth Settings
EDID Operations Compression Mode
When the network bandwidth is not enough to transmit the video
signal the following modes are available in the Encoder:
Movie mode (Lower image quality @ Less bandwidth): The image
▪
quality is adjusted to the available bandwidth. If the bandwidth
is decreased the image quality will be lower, but the video
streaming is continuous.
Graphics mode (Best image quality @ High bandwidth): The image
▪
quality is kept at a high level. If the bandwidth is decreased the
image quality does not change, but frame drop may appear.
The setting has an affect when the available bandwidth is less than
Frame
required.
Video Stream Bandwidth
A specific bandwidth limitation can be set in the Encoder which affects
only the video signal transmission. The following values are available:
Auto / 10 Mbps / 50 Mbps / 100 Mbps / 150 Mbps / 200 Mbps
The Auto setting is the default value which means: the available
bandwidth is determined according to current network traffic.

AAAENAIING! If the Bandwidth setting is changed a window will pop
up to confirm as the device will be restarted to apply the settings.
