5. Programmers' Reference

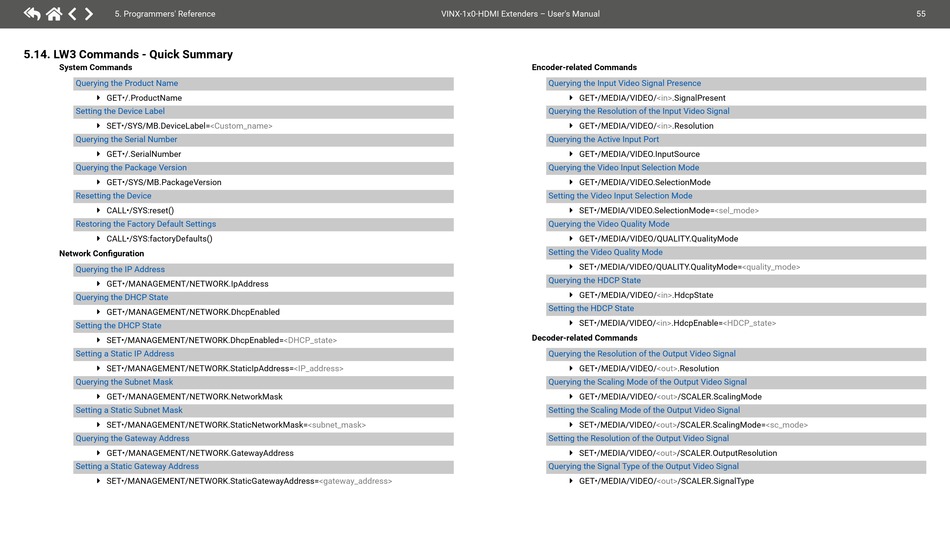

5.14. LW3 Commands - Quick Summary

System Commands
Querying the Product Name
ç GET•/.ProductName
Setting the Device Label
SET•/SYS/MB.DeviceLabel=<Custom_name>
ç
Querying the Serial Number
ç GET•/.SerialNumber
Querying the Package Version
ç GET•/SYS/MB.PackageVersion
Resetting the Device
ç CALL•/SYS:reset()
Restoring the Factory Default Settings
ç CALL•/SYS:factoryDefaults()
Network Configuration
Querying the IP Address
ç GET•/MANAGEMENT/NETWORK.IpAddress
Querying the DHCP State
ç GET•/MANAGEMENT/NETWORK.DhcpEnabled
Setting the DHCP State
SET•/MANAGEMENT/NETWORK.DhcpEnabled=<DHCP_state>
ç
Setting a Static IP Address
SET•/MANAGEMENT/NETWORK.StaticIpAddress=<IP_address>
ç
Querying the Subnet Mask
ç GET•/MANAGEMENT/NETWORK.NetworkMask
Setting a Static Subnet Mask
SET•/MANAGEMENT/NETWORK.StaticNetworkMask=<subnet_mask>
ç
Querying the Gateway Address
ç GET•/MANAGEMENT/NETWORK.GatewayAddress
Setting a Static Gateway Address
SET•/MANAGEMENT/NETWORK.StaticGatewayAddress=<gateway_address>
ç
VINX-1x0-HDMI Extenders – User's Manual
Encoder-related Commands
Querying the Input Video Signal Presence
ç GET•/MEDIA/VIDEO/<in>.SignalPresent
Querying the Resolution of the Input Video Signal
ç GET•/MEDIA/VIDEO/<in>.Resolution
Querying the Active Input Port
ç GET•/MEDIA/VIDEO.InputSource
Querying the Video Input Selection Mode
ç GET•/MEDIA/VIDEO.SelectionMode
Setting the Video Input Selection Mode
SET•/MEDIA/VIDEO.SelectionMode=<sel_mode>
ç
Querying the Video Quality Mode
ç GET•/MEDIA/VIDEO/QUALITY.QualityMode
Setting the Video Quality Mode
SET•/MEDIA/VIDEO/QUALITY.QualityMode=<quality_mode>
ç
Querying the HDCP State
ç GET•/MEDIA/VIDEO/<in>.HdcpState
Setting the HDCP State
SET•/MEDIA/VIDEO/<in>.HdcpEnable=<HDCP_state>
ç
Decoder-related Commands
Querying the Resolution of the Output Video Signal
ç GET•/MEDIA/VIDEO/<out>.Resolution
Querying the Scaling Mode of the Output Video Signal
ç GET•/MEDIA/VIDEO/<out>/SCALER.ScalingMode
Setting the Scaling Mode of the Output Video Signal
SET•/MEDIA/VIDEO/<out>/SCALER.ScalingMode=<sc_mode>
ç
Setting the Resolution of the Output Video Signal
ç SET•/MEDIA/VIDEO/<out>/SCALER.OutputResolution
Querying the Signal Type of the Output Video Signal
ç GET•/MEDIA/VIDEO/<out>/SCALER.SignalType
55
