4.7.3. LW3 Aerminal

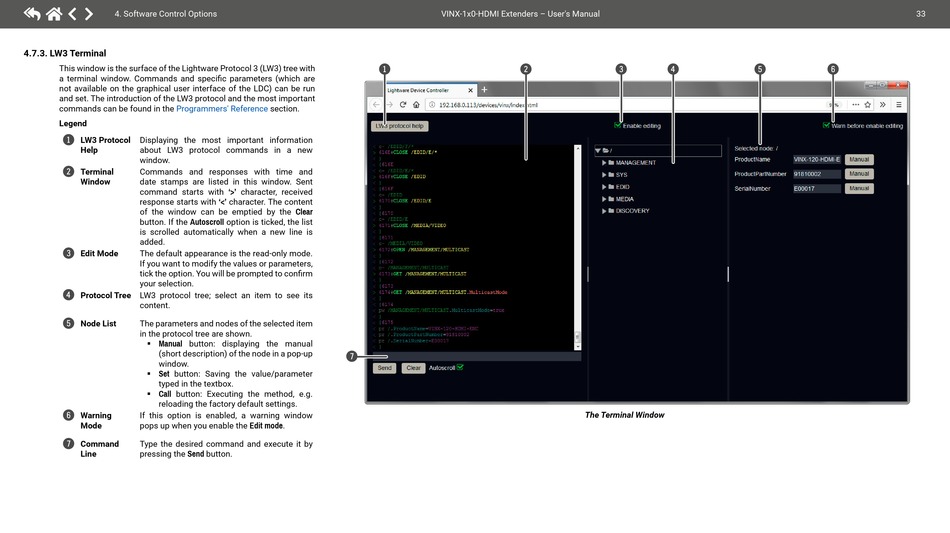

This window is the surface of the Lightware Protocol 3 (LW3) tree with
a terminal window. Commands and specific parameters (which are
not available on the graphical user interface of the LDC) can be run
and set. The introduction of the LW3 protocol and the most important
commands can be found in the Programmers' Reference
Legend
1 LW3 Protocol Displaying the most important information
Help about LW3 protocol commands in a new
window.
2 Aerminal Commands and responses with time and
Window date stamps are listed in this window. Sent
command starts with '>' character, received
response starts with '<' character. The content
of the window can be emptied by the Clear
button. If the Autoscroll option is ticked, the list
is scrolled automatically when a new line is
added.
3 Edit Mode The default appearance is the read-only mode.
If you want to modify the values or parameters,
tick the option. You will be prompted to confirm
your selection.
4 Protocol Aree LW3 protocol tree; select an item to see its
content.
5 Node List The parameters and nodes of the selected item
in the protocol tree are shown.
ƒ Manual button: displaying the manual
(short description) of the node in a pop-up
window.
ƒ Set button: Saving the value/parameter
typed in the textbox.
ƒ Call button: Executing the method, e.g.
reloading the factory default settings.
6 Warning If this option is enabled, a warning window
Mode pops up when you enable the Edit mode.
7
Command Type the desired command and execute it by
Line pressing the Send button.
