2. Installation

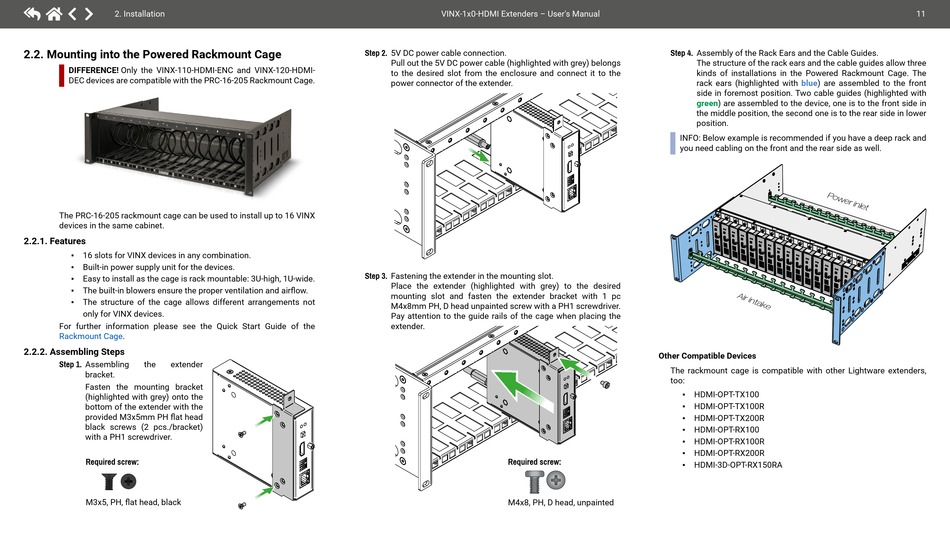

2.2. Mounting into the Powered Rackmount Cage

DIIIERENCEG! Only the VINX-110-HDMI-ENC and VINX-120-HDMI-
DEC devices are compatible with the PRC-16-205 Rackmount Cage.
The PRC-16-205 rackmount cage can be used to install up to 16 VINX
devices in the same cabinet.
2.2.1. Ieatures
▪ 16 slots for VINX devices in any combination.
▪ Built-in power supply unit for the devices.
Easy to install as the cage is rack mountable: 3U-high, 1U-wide.
▪
The built-in blowers ensure the proper ventilation and airflow.
▪
▪ The structure of the cage allows different arrangements not
only for VINX devices.
For further information please see the Quick Start Guide of the
Rackmount Cage.

2.2.2. Assembling Steps

Step 1. Assembling the extender
bracket.
Fasten the mounting bracket
(highlighted with grey) onto the
bottom of the extender with the
provided M3x5mm PH flat head
black screws (2 pcs./bracket)
with a PH1 screwdriver.
Required screw:
M3x5, PH, flat head, black
VINX-1x0-HDMI Extenders – User's Manual
Step 2. 5V DC power cable connection.
Pull out the 5V DC power cable (highlighted with grey) belongs
to the desired slot from the enclosure and connect it to the
power connector of the extender.
Step 3. Fastening the extender in the mounting slot.
Place the extender (highlighted with grey) to the desired
mounting slot and fasten the extender bracket with 1 pc
M4x8mm PH, D head unpainted screw with a PH1 screwdriver.
Pay attention to the guide rails of the cage when placing the
extender.
Required screw:
M4x8, PH, D head, unpainted
Step 4. Assembly of the Rack Ears and the Cable Guides.
The structure of the rack ears and the cable guides allow three
kinds of installations in the Powered Rackmount Cage. The
rack ears (highlighted with blue) are assembled to the front
side in foremost position. Two cable guides (highlighted with
green) are assembled to the device, one is to the front side in
the middle position, the second one is to the rear side in lower
position.

INFO: Below example is recommended if you have a deep rack and
you need cabling on the front and the rear side as well.
Ither Compatible Devices
The rackmount cage is compatible with other Lightware extenders,
too:
HDMI-OPT-TX100
▪
▪ HDMI-OPT-TX100R
▪ HDMI-OPT-TX200R
HDMI-OPT-RX100
▪
▪ HDMI-OPT-RX100R
▪ HDMI-OPT-RX200R
HDMI-3D-OPT-RX150RA
▪
