3. Product Overview

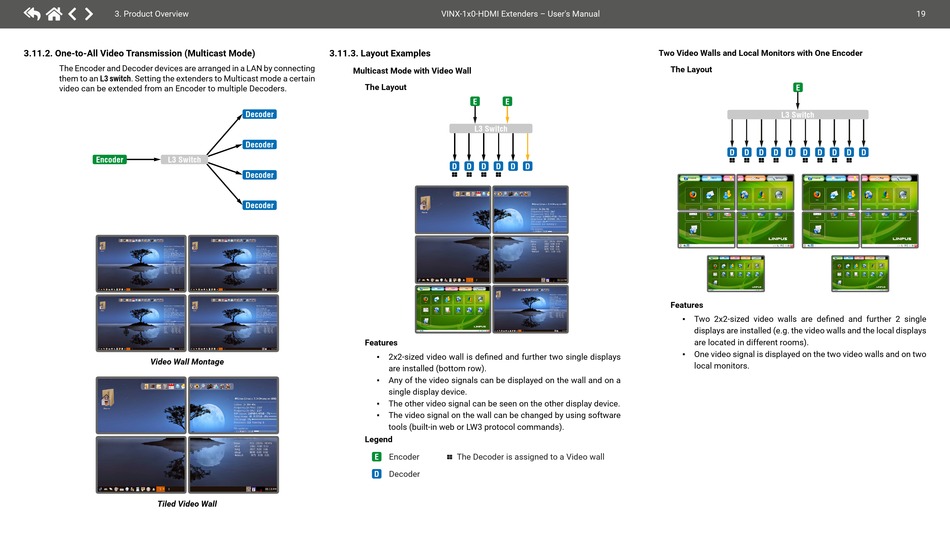

3.11.2. One-to-All Video Transmission (Multicast Mode)

The Encoder and Decoder devices are arranged in a LAN by connecting
them to an L3 switch. Setting the extenders to Multicast mode a certain
video can be extended from an Encoder to multiple Decoders.
Encoder L3 Switch
Video Wall Montage
Tiled Video Wall

3.11.3. Layout Examples

Multicast Mode with Video Wall
Ahe Layout
Decoder
Decoder
Decoder
Decoder
Ieatures
2x2-sized video wall is defined and further two single displays
▪
are installed (bottom row).
▪ Any of the video signals can be displayed on the wall and on a
single display device.
The other video signal can be seen on the other display device.
▪
▪ The video signal on the wall can be changed by using software
tools (built-in web or LW3 protocol commands).
Legend
E Encoder
D Decoder
VINX-1x0-HDMI Extenders – User's Manual
E E
L3 Switch
D D D D D D
The Decoder is assigned to a Video wall
Awo Video Walls and Local Monitors with Ine Encoder
Ahe Layout
E
L3 Switch
D D D D D D D D
Ieatures
▪ Two 2x2-sized video walls are defined and further 2 single
displays are installed (e.g. the video walls and the local displays
are located in different rooms).
▪ One video signal is displayed on the two video walls and on two
local monitors.
19
