2.0 Getting Started

2.1 EFTPOS Professional Mobile Terminal
The EFTPOS Professional Mobile terminal is a complete unit. The terminal also operates as a
PIN Pad for the customer and has an internal thermal printer for fast, quiet printing.

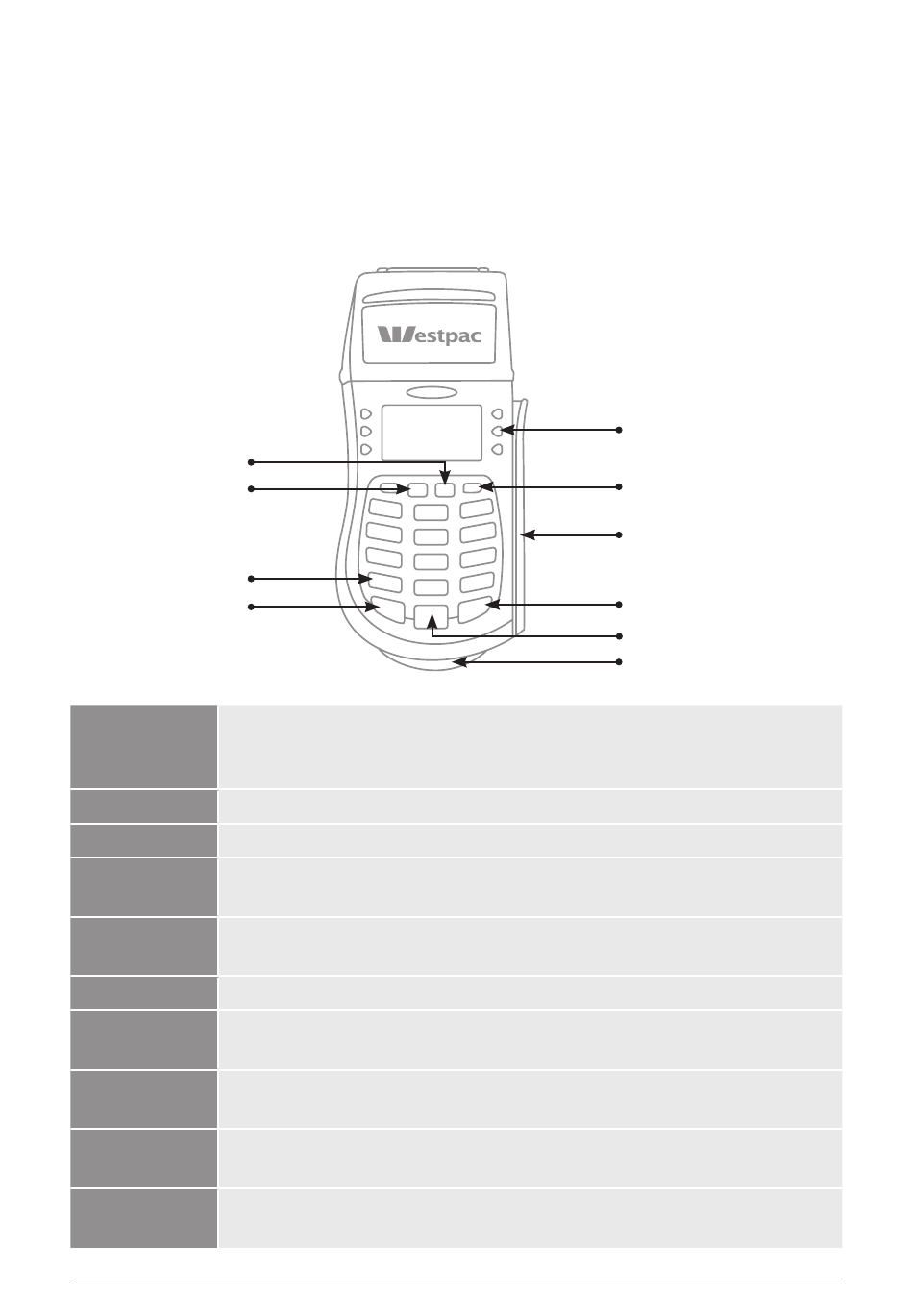

2.2 Keyboard Layout

Reports Key
Menu Key
Paper Feed Key
Cancel Key
The SOFT keys are used to select options displayed on the terminal
Soft Keys:
screen and to move up and down through the menu options displayed
on the screen.
Reports Key: The REPORTS key accesses the Reports menu.
Menu Key: The MENU key allows access to the terminal menu for various functions.
Function/ The FUNCTION key is used to access the terminal functions. It also
Power Key: acts as the POWER key to turn the terminal on and off.
Mag Stripe
Where a cards magnetic stripe is swiped through the terminal.
Reader:
Paper Feed: The FEED key performs a 10mm paper feed.
The ENTER key is used to confirm data entered or displayed and to
Enter Key:
select menu options.
The CANCEL key is used to cancel the current function and return the
Cancel Key:
terminal to the idle state.
The CLEAR key is used to cycle backwards through the transaction
Clear Key:
steps if an error is made.
Chip Card
Where a chip card is inserted.
Reader:
EFTPOS PROFESSIONAL MOBILE GPRS USER GUIDE
1 3
2
4 6
5
7 9
8
*
#
0
Soft Keys
Function Key
Magnetic Stripe Reader
Enter Key
Clear Key
Chip Card Reader
GETTING STARTED
