Hypercom M4230 Quick Manual

Hypercom Quick Guide

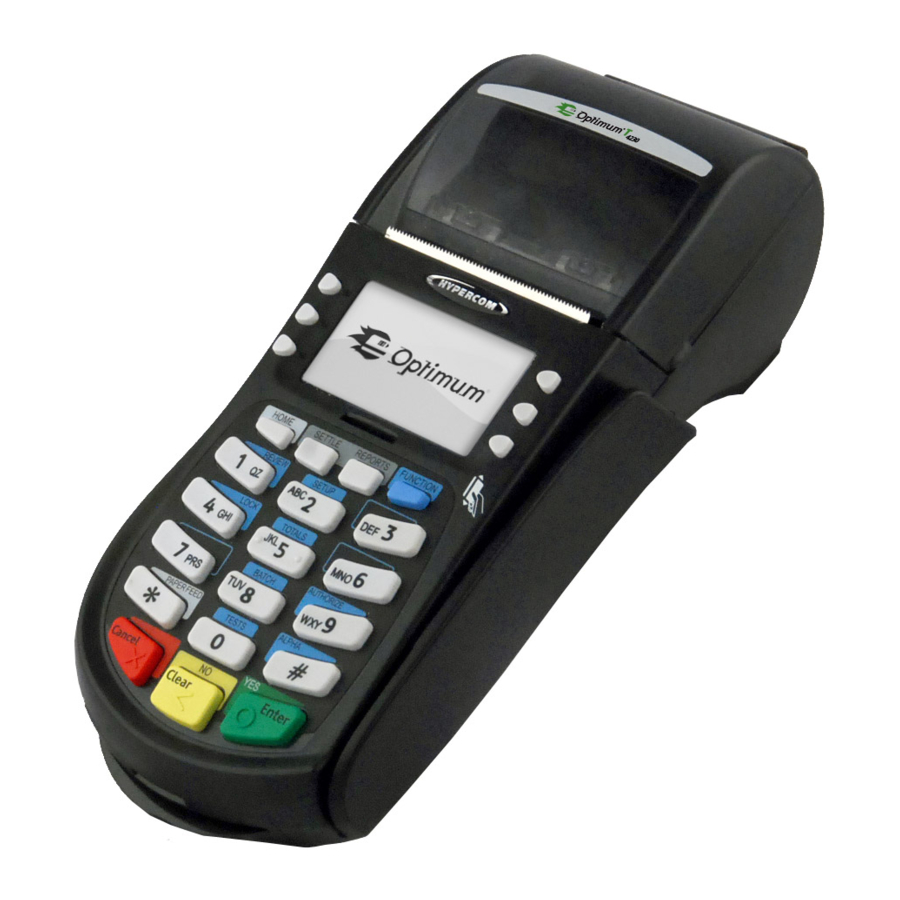

Terminal Models: T4220, T4230, M4230

Purchase Transaction (Debit)

Insert or swipe card
•
Select Merchant (multi merchant only)
•
Enter Amount, press Enter
•
Select Account
•
Enter PIN
•
Terminal/PIN Pad displays result
•

Purchase Transaction (Credit)

Insert or swipe card
•
Select Merchant (multi merchant only)
•
Enter Amount, press Enter
•
Select Credit on PIN Pad/Terminal
•
Enter PIN or Enter
•
Customer Sign (unless PIN)
•
Check signature
•
Press Yes/No on terminal
•

Purchase + Cash (Debit)

Press ENTER, Select 2
•
Insert or swipe card
•
Select Merchant (multi merchant only)
•
Enter Amount, press ENTER
•
Enter Cash Amount, press ENTER
•
Select Account
•
Enter PIN
•
Terminal/PIN Pad displays result
•

Manual Entry (Credit)

Enter card number
•
Enter expiry date
•
CSC on card, Enter YES or NO
•
Select 1 for Single Moto
•
Select Merchant (multi merchant only)
•
Enter Amount, press ENTER
•
Select credit on Terminal/PIN Pad
•

Chip Cards and PIN Bypass

When using a chip card a customer may not know
their PIN number and need to sign. An option
called PIN Bypass is available, press ENTER on the
terminal when the PIN pad is waiting for a PIN to
activate.
Hypercom Quick Guide © Zintel Payments Ltd 2009 Version 1.0

Tipping Transaction (Credit*)

Press ENTER, Select 5
•
Enter purchase amount, press ENTER
•
Insert or swipe card
•
Select credit on Terminal/PIN Pad
•
Customer signs receipt
•
Add Tip now YES/NO
•
Enter Tip Amount
•
* Works with signature only

Modify Tip Transactions

Press Blue Function, type 21
•
Find tip transaction and select adjust to
•
modify.

Transmit Tip Transactions

Press Merchant, 3 (Batch), 4 (TX Tip Trans).
•

Hospitality (Credit Pre-Authorisation)

Press ENTER, Select 6
•
Insert or swipe card
•
Select Merchant (multi merchant only)
•
Enter Amount, press Enter
•
Select Credit on PIN Pad/Terminal
•
Enter PIN or Enter
•
Customer Sign (unless PIN)
•
Check signature
•
Press Yes/No on terminal
•

Finalise (Complete Pre-Authorisation)

Press ENTER, Select 7
•
Enter Trans. No or ENTER to scroll
•
Modify transaction or confirm value.
•

Refund Transaction

Press ENTER, Select Refund
•
Select Merchant (multi merchant only)
•
Enter Amount, press Enter
•
Swipe merchant card
•
Enter merchant PIN
•
Insert or swipe card
•
Select Account
•
Enter PIN
•
Terminal/PIN Pad displays result
•
