C 8
HAPTER

NOZZLE TECHNICAL SPECIFICATIONS

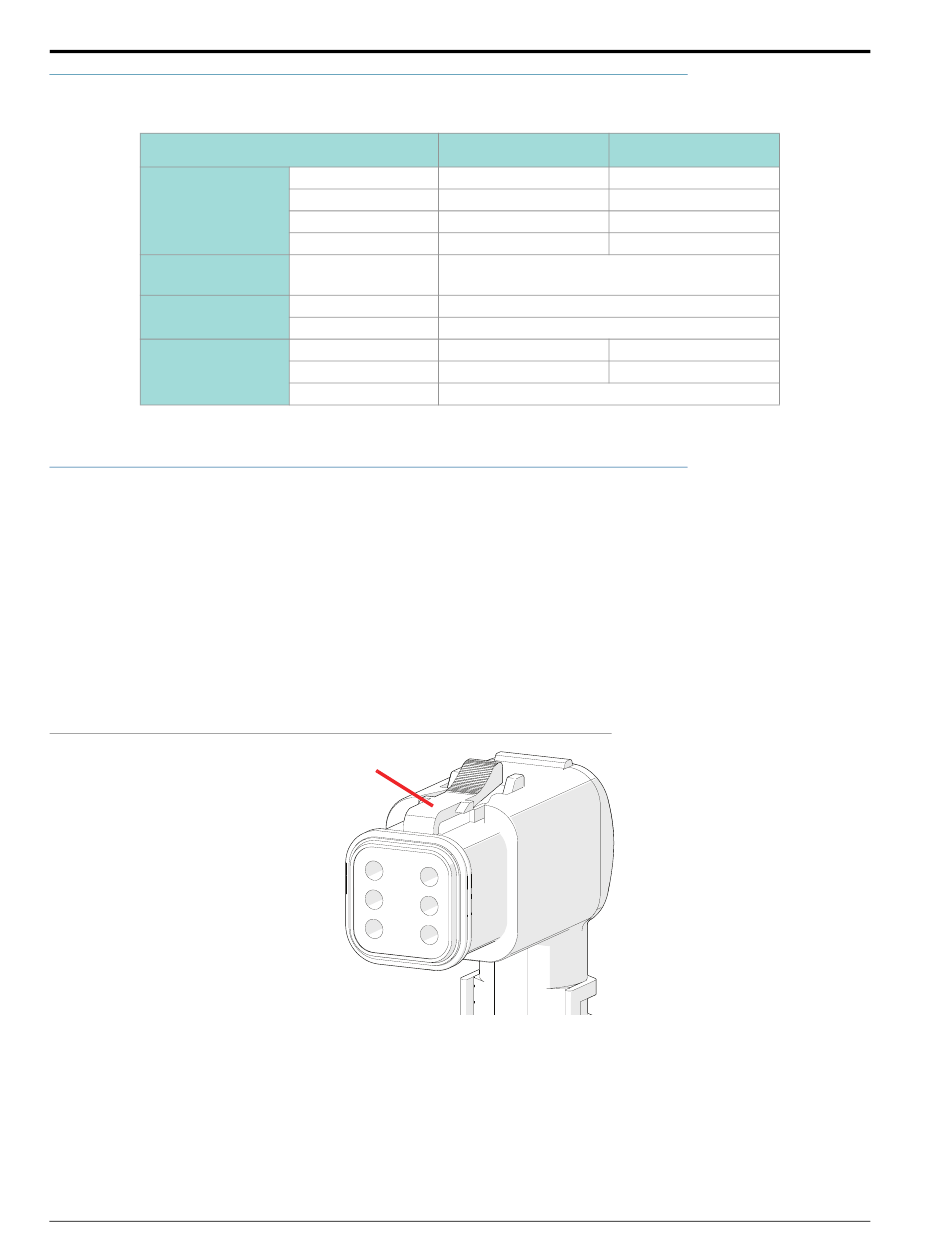

TABLE 2. Hawkeye Nozzle Control Valve Technical Specifications
Dimensions
Power
Input/Output
Environmental

CABLE TROUBLESHOOTING

TROUBLESHOOTING NCV CABLE CONNECTIONS

Nozzle control valve cable troubleshooting may require the system to be powered on and the NCV's
disconnected. Disconnecting the NCV should result in Switch Out output to be 0 at the connection and will also
result in Nozzle Offline errors that require NCV's to be recalibrated.
Disconnect the boom cable from the nozzle control valve. Hold the connector so that the retention clip is facing
toward the 12 o'clock position.
FIGURE 2. Nozzle Control Valve Cable Connector
58
Height
Width
Depth
Weight approximately 7.1 oz.
Operating Voltage
CAN
Switched (In/Out)
Operating Conditions
Storage Conditions
Relative Humidity
Connector
Retention
Clip
1
6
2
5
3
4
ISO Product Controller II and Hawkeye Operation Manual
U.S.
3.8 in.
1.39 in.
1.35 in.
approximately 0.2 kg
13.6 V DC nominal
(10 V drop-out to 16 V spike tolerant)
CANBUS 2.0 Compliant
3V
-22° to 140° F -30 to 60° C
-40° to 158° F -40° to 70° C
10 to 95% relative
Metric
9.65 cm
3.53 cm
3.43 cm
