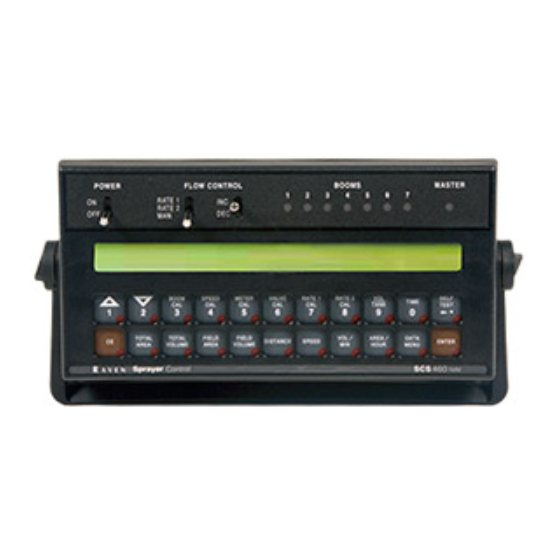

Raven AccuBoom SCS 460 Installation Manual

Spracoupe 3000 series; spracoupe 4000 series
Hide thumbs Also See for AccuBoom SCS 460:
Table of Contents

Advertisement

Quick Links

Download this manual
SpraCoupe 3000/4000 with
SCS 460 Console AccuBoom
Installation Manual
Manual No. 016-0171-079 Rev F
01/17
E28992
Copyright 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AccuBoom SCS 460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raven AccuBoom SCS 460

Summary of Contents for Raven AccuBoom SCS 460

  • Page 1 SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual Manual No. 016-0171-079 Rev F 01/17 E28992 Copyright 2017...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Important Safety Information ................1 Important Safety Information ..................... 1 Instructions for Wire Routing ..................... 1 Instructions for Hose Routing ....................3 Chapter 2 Introduction......................5 Introduction ..........................5 Recommendations ................................. 5 Tools Needed ................................... 5 Preparing for Installation ..............................
  • Page 4 Table of Contents SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...

  • Page 5: Chapter 1 Important Safety Information

    AccuBoom™ system. • Follow all safety information presented within this manual. • If you require assistance with any portion of the installation or service of your Raven equipment, contact your local Raven dealer for support. • Follow all safety labels affixed to the AccuBoom system components. Be sure to keep safety labels in good condition and replace any missing or damaged labels.
  • Page 6 HAPTER • Lines and hoses carrying hot fluids beyond harness component specifications Avoid contact with any sharp edge or abrading surfaces such as, but not limited to: • Sheared or flame cut edges • Edges of machined surfaces • Fastener threads or cap screw heads •...

  • Page 7: Instructions For Hose Routing

    IMPORTANT SAFETY INFORMATION • Inspect all electrical components and connections for damage or corrosion. Repair or replace components, connections, or cable as necessary. • Ensure connections are clean, dry, and not damaged. Repair or replace components, connections, or cable as necessary. •...
  • Page 8 HAPTER • Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or rubbing, especially in articulation and pivot points • Clamp hoses securely to force controlled movement to occur in the desired hose section • Avoid sharp twisting or flexing of hoses in short distances Protect hoses from: •...

  • Page 9: Chapter 2 Introduction

    C H A P T E R 2 INTRODUCTION Congratulations on your purchase of the Raven AccuBoom system! This system was designed to provide accurate and cost-efficient application control by avoiding no-spray zones and eliminating wasteful overlaps. This manual applies to the following machines. For future reference, write the serial number of the machine in the space below.

  • Page 10: Point Of Reference

    This section contains a list of the components that are included in the AccuBoom kit. Before beginning the AccuBoom installation, compare the items in the AccuBoom kit with the components on this list. If you have questions about the kit, contact your local Raven dealer. IMPORTANT: In addition to the following kit components, an AccuBoom CAN node (P/N 063-0172-316) is required for the operation of the AccuBoom system.

  • Page 11: Chapter 3 Accuboom Installation

    A CCUBOOM INSTALLATION CHAPTER C H A P T E R 3 These instructions are designed to assist in the installation of the AccuBoom system on SpraCoupe 3000/4000 Series machines utilizing the SCS 460 Console. Refer to the Installation & Operation manual for the specific field computer being used for instructions on setting up the software and using the AccuBoom system.

  • Page 12: Install The Accuboom Node

    HAPTER FIGURE 2. Field Computer Cable Connection 3. Connect one end of the CAN power adapter cable to the Envizio Pro or Viper Pro interface cable. 4. Route the red power and white ground wires toward the battery. NOTE: Do not connect the power and ground wires at this time. The power and ground wires will be connected at a later phase of the AccuBoom installation.

  • Page 13: Connect The Accuboom Cable To The Boom Switches

    ACCUBOOM INSTALLATION FIGURE 4. AccuBoom Node Installed 4. Determine a suitable location on the inside of the cab, located below the SCS 460 console, in which to mount the node. 5. Using the holes on the node and driver as patterns, drill holes needed to mount the node and driver. NOTE: Drill two holes per device being mounted.
  • Page 14 HAPTER FIGURE 5. Machine Boom Switch Wiring Diagram Before AccuBoom Installation Orange or Red White or Black SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...
  • Page 15 ACCUBOOM INSTALLATION FIGURE 6. Boom Switch Console 1. Remove the four screws (shown in the figure above) used to secure the cover on the boom switch console. 2. Carefully remove the cover of the boom switch console. 3. Locate the parallel positive and negative wires located at the bottom of boom switch 1. NOTE: The positive boom switch wire has an adapter that allows two wires to be connected to the switch connector (parallel).
  • Page 16 HAPTER TABLE 1. 3-Boom Valve Wire Connections SpraCoupe Wire Boom Switch Number AccuBoom Connector Connector Sheilding Number Black Unshielded 505B Gray Shielded 506B Brown Unshielded 507B Yellow Shielded 508B Blue Unshielded 509B Orange Shielded 510B Black/White Unshielded Not Connected Purple Shielded Not Connected Brown/White...
  • Page 17 ACCUBOOM INSTALLATION FIGURE 8. Boom Valve Wires Connected 1- Wire 1+ Wire Connected Connected to the to the Parallel Negative Boom Positive Boom Switch Switch Wire Wire 7. Connect the AccuBoom 1+ wire to the parallel positive boom switch wire. 8.
  • Page 18 HAPTER FIGURE 9. Boom Switch Wire Connections Connection Ground Wire Positive Boom Switch Connection 13. Disconnect the ground wire from each of the boom switches. FIGURE 10. Machine Boom Switch Wiring Diagram After AccuBoom Installation SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...

  • Page 19: Install The Master Spray/Hold Switch Wiring

    ACCUBOOM INSTALLATION INSTALL THE MASTER SPRAY/HOLD SWITCH WIRING FIGURE 11. Machine’s Master Spray/Hold Switch Connection 1. Pull the joystick cable connections out from under the side console. 2. Locate and disconnect the 2-pin weatherpack master spray/hold switch connectors. FIGURE 12. Master Boom Enable Switch Connected 3.

  • Page 20: Connect The Can Bus Cable

    HAPTER CONNECT THE CAN BUS CABLE FIGURE 13. CAN Bus Cable Connected to the CAN Power Cable 1. Connect the single end of the CAN bus cable (P/N 115-0171-326) to the machine’s existing product control CAN cable. 2. Connect the other end of the CAN bus cable to the SCS console AccuBoom cable (P/N 115-1001-008). 3.
  • Page 21 ACCUBOOM INSTALLATION 4. Connect the CAN power adapter cable (P/N 115-0171-368) power connections to the battery. 5. Reconnect the machine’s battery connections. Manual No. 016-0171-079 Rev F...
  • Page 22 HAPTER SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...

  • Page 23: Section Mapping Setup

    S ECTION MAPPING SETUP CHAPTER C H A P T E R 4 This section contains section mapping settings that are used to program the AccuBoom controller. Refer to the Installation and Operation Manual and the appropriate section in this chapter for the specific field computer being used for programming and section mapping settings.
  • Page 24 HAPTER SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...
  • Page 25 AccuBoom system. NOTE: If the LEDs are not displayed as outlined in the figure below, check the CAN connections and the control cable connections on the node. If the issue persists, contact your local Raven dealer for additional technical support. NOTE: All boom switches must remain in the off position while AccuBoom control is in operation.
  • Page 26 HAPTER SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...

  • Page 27: Chapter 5 Troubleshooting

    Index AccuBoom Installation Connecting the AccuBoom Cable to the Boom Switches Connecting the CAN Bus Cable Installing the AccuBoom Node Installing the CAN Power and Ground Installing the Logic Power and Ground Connections Installing the Master Spray/Hold Switch Wiring AccuBoom Kit Contents Important Safety Information Introduction AccuBoom Kit Contents...
  • Page 28 Index SpraCoupe 3000/4000 with SCS 460 Console AccuBoom Installation Manual...
