HAWKEYE TOOLS MENU OVERVIEW

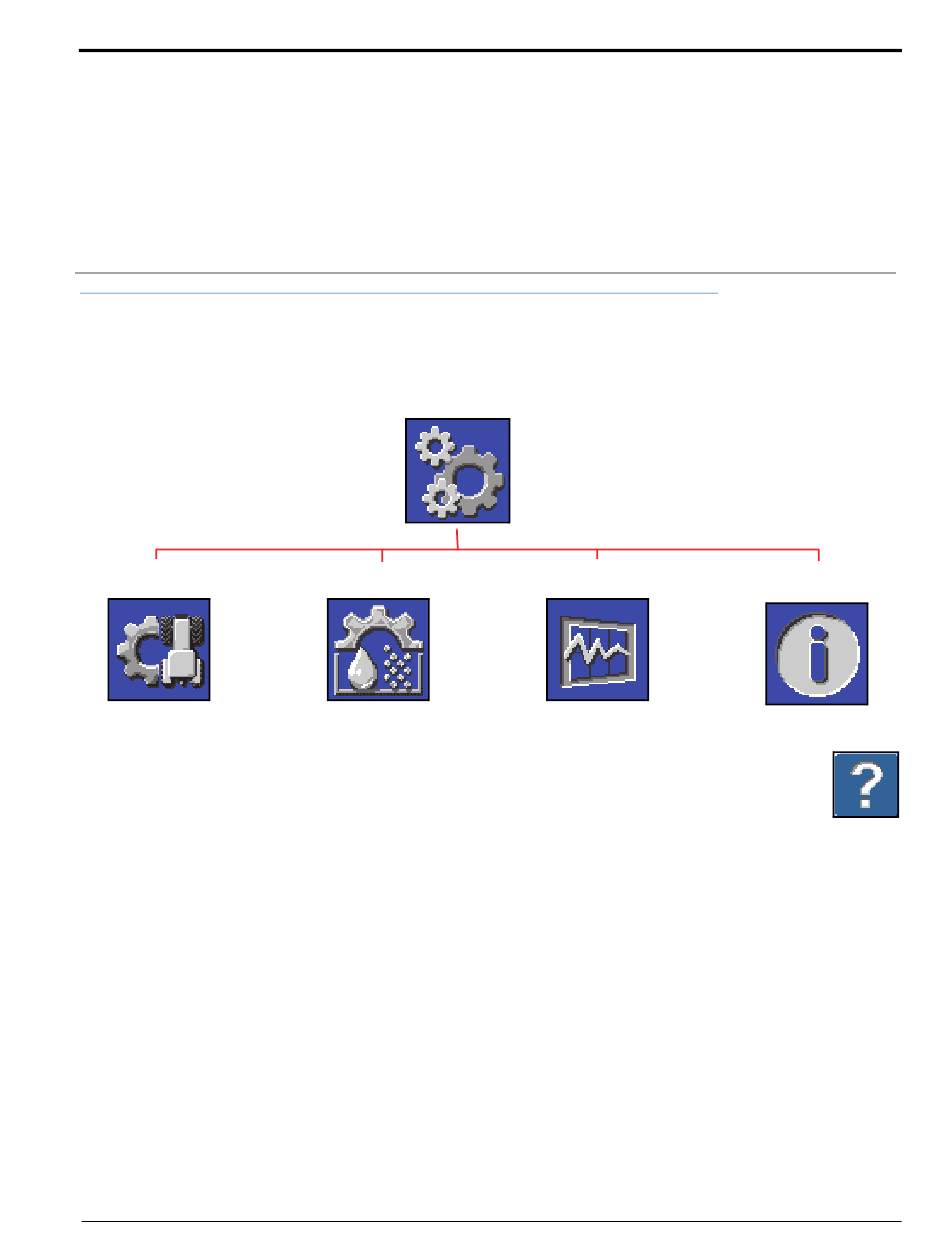

System settings and information are displayed in four categories which may be viewed by selecting the tabs
displayed along the top of the Tools Menu.
Equipment
Settings
NOTE: If needed, press the help button on any screen for additional information.
Equipment Settings. Access the equipment settings to change the nozzle control mode, enable virtual
section control, select tip sizes, verify section widths, or to restart the injection or Hawkeye
Calibration wizards.
System Settings. Adjust the following setting and feature categories for the main product or any of
the injection products:
Product Controller Diagnostics. Access system information which may provide advanced diagnostic and control
function information for the Hawkeye
System Information. Select to view details of the Hawkeye
software version numbers, run-time, or task controller connectivity.
P/N 016-0171-584-H
H AWKEYE
C H A P T E R 4
AND SIDEKICK PRO ICD SETUP
Tools
System
Settings
• User Settings
• Tank Fill Settings
• Alarm Settings
®
system.
®
NOZZLE CONTROL
Product Controller
Diagnostics
• Presets Settings
• Product Control Settings
• Pressure Settings
®
Product Controller II ECU such as hardware and
System
Information
®
System
Help
