4. Select the Tank Fill Settings button. The following information will be available:
• Full Refill Button
• Tank Level
• Fill Meter Calibration Value and Units
NOTE:

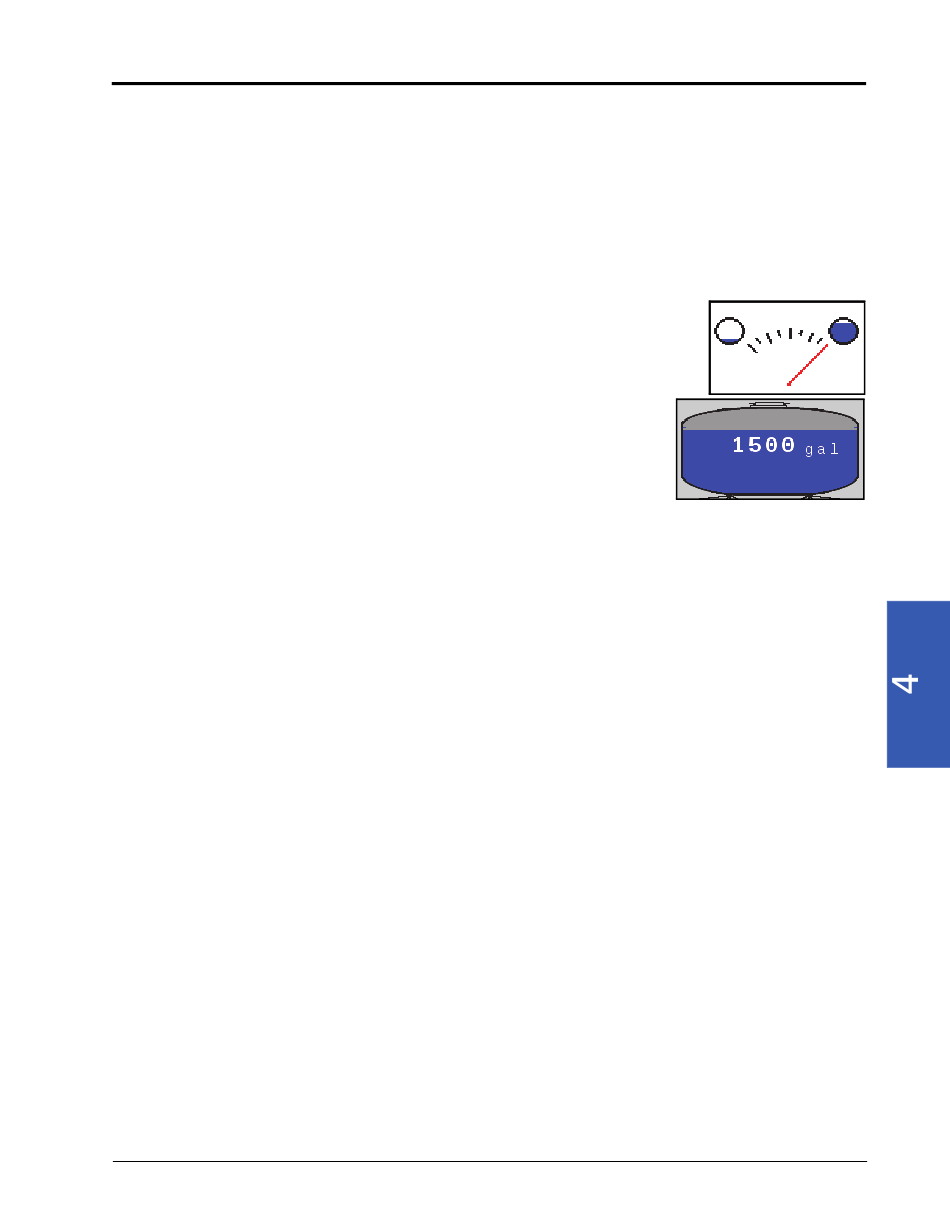

The tank fill prompt is also accessible by selecting the tank indicator on the
screen.
5. Select the Product tab that corresponds to the product being edited.
FULL REFILL BUTTON
Select to reset the current tank volume to the configured tank capacity. Use this button
to quickly reset the tank volume when refilling tanks during field operation.
TANK CAPACITY
Enter the maximum tank capacity. Using the tank capacity and current tank level
values, the tank indicator on the lower home screen will display the level of product
remaining for the current application.
NOTE:
Tank capacity value cannot be changed while in an application job.
TANK LEVEL
Enter the current tank level. This feature may be used to manually set the tank level at a level different from the
capacity value, adjust the product volume if products are added through the top of the tank, or to correct the tank
volume for a known volume of product added to the tank. Either enter the volume manually upon refilling or use
the tank flowmeter to automatically monitor the tank level.
LOW TANK LIMIT
Enable the Low Tank feature and enter the desired volume threshold at which an alert will be displayed for low
tank condition.
NOTE:
To provide low tank alarms during field applications, ensure the Low Tank option is enabled on the
Alarms Setup screen. Refer to the System Settings Tab - Alarm section on page 30 for additional
assistance with enabling the low tank alarm.
FILL METER CALIBRATION VALUE AND UNITS (MAIN HAWKEYE PRODUCT ONLY)
The fill meter calibration, or meter cal, value and units may be found on the tag attached to the flow meter
installed in the tank fill system. Be sure to select the appropriate units for the flow meter calibration to ensure
proper calibration of the tank fill system.
NOTE:
Raven flow meters use a meter cal in pulses per 10 gallons [37.9 L].
Copy the information from the tag for future reference as tags may fade or be lost during operation.
MAX TANK FILL PWM
The maximum PWM the product pump will run at while filling the product tank while using the remote tank fill
feature.
Hawkeye® Nozzle Control and Sidekick Pro ICD Setup: Tools Menu Settings Definitions
HAWKEYE® NOZZLE CONTROL AND SIDEKICK PRO ICD SETUP
• Tank Capacity
• Low Tank Limit
• Max Tank Fill PWM
®
Hawkeye
lower home
29
