RBR Enterprise Vector 300 LS/
Venturi LS SmartTrax™ Installation
Manual
P/N 016-5030-010 Rev A
06/15
E20321
Copyright 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartTrax and is the answer not in the manual?

Questions and answers

Related Manuals for Raven SmartTrax

Summary of Contents for Raven SmartTrax

  • Page 1 RBR Enterprise Vector 300 LS/ Venturi LS SmartTrax™ Installation Manual P/N 016-5030-010 Rev A 06/15 E20321 Copyright 2013...
  • Page 2 GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to use Raven systems, or products used as components of systems, which rely upon the reception of these signals or availability of these services.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Important Safety Information..........1 Hydraulic Safety ........................2 Electrical Safety ........................2 Chapter 2 Introduction................3 Preparing for Installation ......................3 Recommendations ......................4 Point of Reference ....................... 4 Updates ............................. 4 Kit Contents ..........................5 Chapter 3 Hydraulic System Installation..........
  • Page 4 Table of Contents RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...

  • Page 5: Important Safety Information

    • Follow all safety information presented within this manual. • If you require assistance with any portion of the installation or service of your Raven equipment, contact your local Raven dealer for support. • Follow all safety labels affixed to the SmarTrax system components. Be sure to keep safety labels in good condition and replace any missing or damaged labels.

  • Page 6: Hydraulic Safety

    CAUTION Hydraulic Safety • Raven Industries recommends that appropriate protective equipment be worn at all times when working on the hydraulic system. • Never attempt to open or work on a hydraulic system with the equipment running. Care should always be taken when opening a system that has been previously pressurized.

  • Page 7: Introduction

    I ntroduction CHAPTER C h a p t e r 2 Congratulations on your purchase of the SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of the machine via Global Positioning System (GPS) coordinates. This manual applies to the following machines: MAKE: RBR MODEL: Vector 300 LS/Venturi LS YEAR: 2013...

  • Page 8: Recommendations

    Recommendations Raven Industries recommends the following best practices when installing or operating the SmarTrax system for the first time, at the start of the season, or when moving the SmarTrax system to another machine: •...

  • Page 9: Kit Contents

    Introduction At Raven Industries, we strive to make your experience with our products as rewarding as possible. One way to improve this experience is to provide us with feedback on this manual. Your feedback will help shape the future of our product documentation and the overall service we provide.
  • Page 10 Chapter 2 SmarTrax Installation Kit (P/N 117-5030-010) TABLE 1. Picture Item Description Part Number Qty. Bracket - Hydraulic Valve Mounting 107-0171-907 Cable - Node Harness 115-4001-173 Cable - Valve Harness 115-4001-174 Assembly - SmarTrax Enable Foot Switch 063-0172-470 Bolt - 5/16”-18 x 7/8” Hex 311-0052-104 Bolt - 3/8”-16 UNC x 1/4”...
  • Page 11 Introduction Hydraulic Installation Kit (P/N 117-0199-127) TABLE 2. Picture Item Description Part Number Qty. Fitting - -6 JIC M/F 90° Swivel Elbow 333-0012-042 Fitting - -4 JIC (M) to -6 SAE O-Ring (M) 333-0012-044 Straight Adapter Fitting - -6 JIC (M) to -10 SAE O-Ring (M) 333-0012-106 Straight Adapter Fitting - -10 JIC M/F 90°...
  • Page 12 Chapter 2 RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...

  • Page 13: Hydraulic System Installation

    H ydraulic System CHAPTER C h a p t e r 3 Installation WARNING Hydraulics are under pressure. Care should always be taken with a system that has been pressurized. Before beginning the SmarTrax hydraulic installation, turn off the machine and relieve pressure by turning the steering wheel left and right.

  • Page 14: Install Fittings In The Smartrax Valve

    Chapter 3 NOTICE The appearance of the SmarTrax hydraulic valve may vary slightly from the images contained in this manual. However, the fittings, hose connections, and cable connections remain the same. Install Fittings in the SmarTrax Valve Before mounting the SmarTrax valve (P/N 334-0003-088) on the machine, install the proper fittings in the valve.

  • Page 15: Mount The Smartrax Valve

    Hydraulic System Installation Mount the SmarTrax Valve SmarTrax Valve Mounting Location FIGURE 2. Identify the SmarTrax valve (P/N 334-0003-088) mounting location on the inside of the machine’s frame, below the walkway. SmarTrax Valve Installed FIGURE 3. Secure the SmarTrax valve to the valve mounting bracket using four 5/16”-18 x 7/8” hex bolts (P/N 311- 0052-104) and four 5/16”...

  • Page 16: Install The Left And Right Steering Hoses

    Chapter 3 Install the Left and Right Steering Hoses Steering Orbital Location FIGURE 4. Locate the machine’s steering orbital under the hood, just in front of the cab. Left Steering Port on Steering Orbital FIGURE 5. Left Steering Port Remove the cap from the tee fitting installed in the left steering port (upper-right corner) of the steering orbital.
  • Page 17 Hydraulic System Installation Left Steering Hose Installed on Steering Orbital FIGURE 6. Machine’s Left Steering Hose Installed Left Steering Hose (P/N 214-1000-780) Install the straight end of the supplied hydraulic hose (P/N 214-1000-780) on the open port of the tee fitting. Left Steering Hose Installed on SmarTrax Valve FIGURE 7.
  • Page 18 Chapter 3 Right Steering Port on Steering Orbital FIGURE 8. Right Steering Port Remove the cap from the tee fitting installed in the right steering port (lower-right corner) of the steering orbital. Right Steering Hose Installed on Steering Orbital FIGURE 9. Machine’s Right Steering Hose Installed Right...

  • Page 19: Install The Pressure And Tank Hoses

    Hydraulic System Installation Right Steering Hose Installed on SmarTrax Valve FIGURE 10. Connect the 90° end of the installed hydraulic hose to the fitting installed in Port B of the SmarTrax valve. Install the Pressure and Tank Hoses Pressure Hose Installed on Steering Orbital FIGURE 11.
  • Page 20 Chapter 3 Pressure Hose Installed on SmarTrax Valve FIGURE 12. Connect the straight end of the installed hydraulic hose to the fitting installed in Port P of the SmarTrax valve (P/N 334-0003-088). Tank Hose Installed on Steering Orbital FIGURE 13. Machine’s Tank Hose Installed Tank Hose (P/N 214-1000-959)

  • Page 21: Install The Load Sense Hoses

    Hydraulic System Installation Connect the -10 JIC end of the installed hydraulic hose to the fitting installed in Port T of the SmarTrax valve. Install the Load Sense Hoses Locate and disconnect the machine’s load sense hose from the right side of the steering orbital. LSPV Connection on SmarTrax Valve FIGURE 15.
  • Page 22 Chapter 3 LS STEER Connection on SmarTrax Valve FIGURE 17. LS STEER Connection on Side of SmarTrax Valve Connect the 90° end of the installed hydraulic hose to the fitting installed in Port LS STEER of the SmarTrax valve. RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...

  • Page 23: Hydraulic Diagram

    Hydraulic System Installation Hydraulic Diagram Manual No. 016-5030-010 Rev. A...
  • Page 24 Chapter 3 RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...

  • Page 25: Cab Component Installation

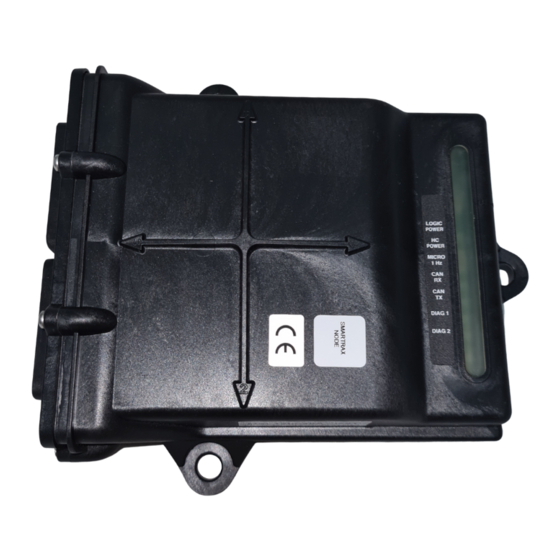

    C ab Component CHAPTER C h a p t e r 4 Installation Install the SmarTrax Node Mount the SmarTrax Node SmarTrax Node Installed FIGURE 1. Using the mounting tabs on the SmarTrax node (P/N 063-0173-228) as a template, mark and pre-drill holes on the machine’s existing mounting bracket in the right-rear corner of the cab.

  • Page 26: Node Mounting Locations

    Chapter 4 Node Mounting Locations Node Mounting FIGURE 2. Direction Arrows Any two arrows must be parallel with level ground Mounting Tabs When choosing the location for the SmarTrax node, consider the following points: • Mount the SmarTrax node inside the machine’s cab on a flat, level surface for proper performance and cable connection.

  • Page 27: Install The Node Harness

    Cab Component Installation Select a suitable location for the foot switch (P/N 063-0172-470) to be installed. Note: The foot switch should be installed in a location where the operator has easy access to it and is able to fully press the pedal. Using the holes in the foot switch as a template, drill holes in the floor of the cab.
  • Page 28 Chapter 4 Connect the VALVE connector to the open 4-pin port of the SmarTrax valve. Valve Harness Wiring Diagram FIGURE 5. RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...

  • Page 29: System Diagrams

    Cab Component Installation System Diagrams Manual No. 016-5030-010 Rev. A...
  • Page 30 Chapter 4 RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...
  • Page 31 Cab Component Installation Manual No. 016-5030-010 Rev. A...
  • Page 32 Chapter 4 RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...

  • Page 33: Startup Procedures

    S tartup Procedures CHAPTER C h a p t e r 5 WARNING When starting the machine for the first time after installing SmarTrax, be sure that all persons stand clear in case a hose has not been properly tightened. WARNING Do not use hands to check for leaks.

  • Page 34: Calibrate The Smartrax System

    Chapter 5 Access the System Diagnostic screen by selecting the MACHINE TEST option on the Machine Type screen and turn the wheels using the Raven console. Note: If there are issues with the SmarTrax system, turn off the machine and correct them immediately.
  • Page 35 Index Cab Component Installation Installing the Foot Switch 22 Installing the Node Harness 23 Installing the SmarTrax Node 21 Mounting the SmarTrax Node 21 Node Mounting Locations 22 Installing the Valve Harness 23 System Diagrams 25 Hydraulic System Installation Hydraulic Diagram 19 Installing Fittings in the SmarTrax Valve 10 Installing Left and Right Steering Hoses 12 Installing Load Sense Hoses 17...
  • Page 36 Index RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual...
  • Page 37 Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility. The Return...
  • Page 38 How Can I Get Service? Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval.
