NOZZLE CONTROL VALVE DIAGNOSTIC DEFINITIONS

SECTION DIAGNOSTICS PROMPT

®
To access Hawkeye
nozzle control valve diagnostics information by configured section:
1. Open the UT Menu and select the Hawkeye
2. From the home screen, select the Nozzle Diagnostics softkey along the right side of the display. The following
settings and information may be displayed for each configured section:
• Section
• Nozzle Flow Offset%

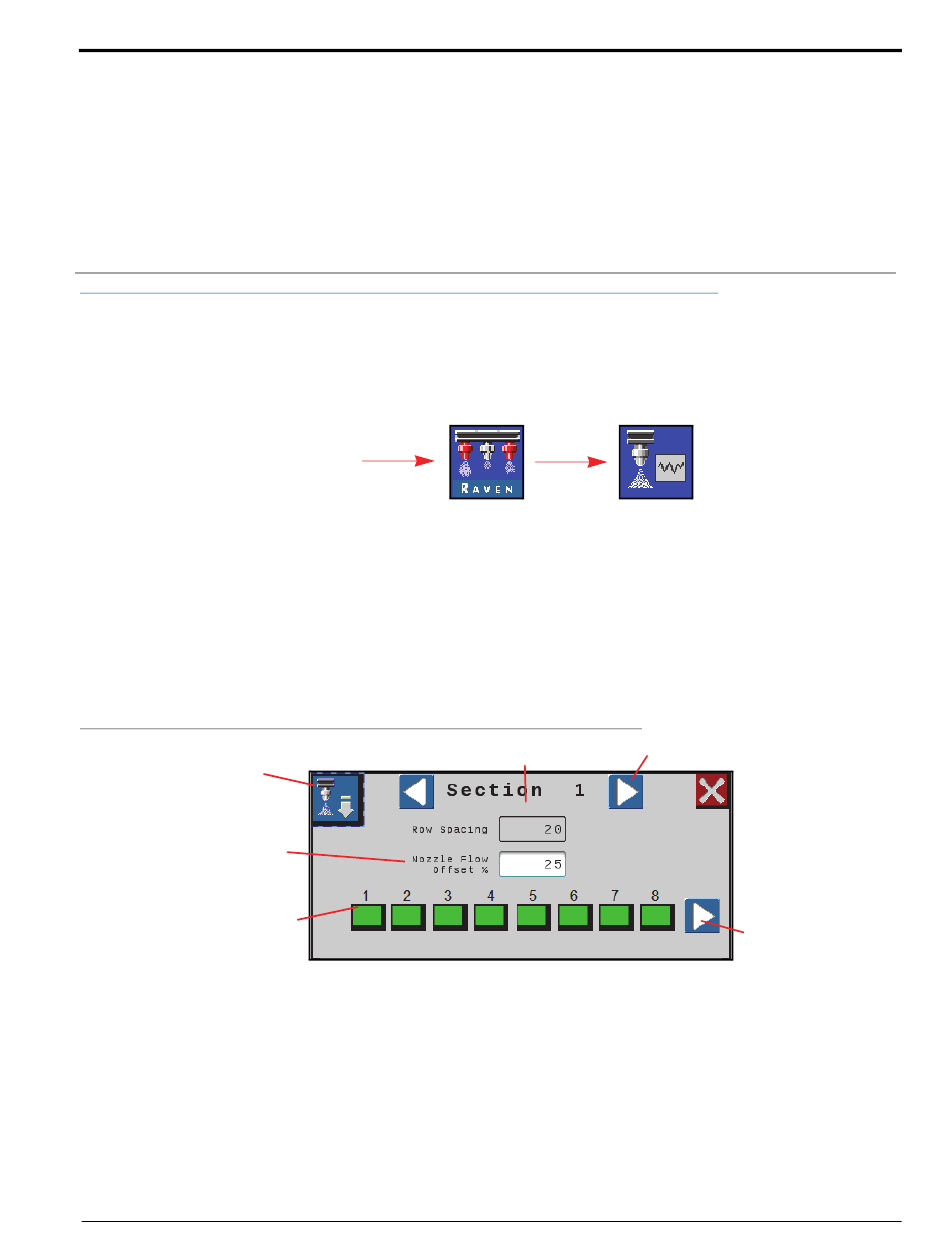

FIGURE 1. Advanced Nozzle Diagnostics
Advanced
Diagnostics
Nozzle Flow Offset%
Section Nozzle
Status
CURRENT SECTION DISPLAY
The current section for which diagnostic information is being displayed is shown at the top of the nozzle
diagnostics prompt. Select the left or right section select arrow buttons to cycle through sections configured for
®
use with the Hawkeye
nozzle control system.
NOZZLE SPACING
The nozzle spacing value set during the calibration wizard is displayed on the diagnostics prompt. Verify this value
matches the tip spacing on the equipment to ensure accurate application of products during field operations.
P/N 016-0171-584-H
H AWKEYE NOZZLE CONTROL
C H A P T E R 7
VALVE DIAGNOSTICS
UT Menu
Hawkeye Menu
®
Menu button.
Nozzle Spacing
Nozzle
Diagnostics
• Nozzle Spacing
• Section Nozzle Status
Section Select
Nozzle Select
53
