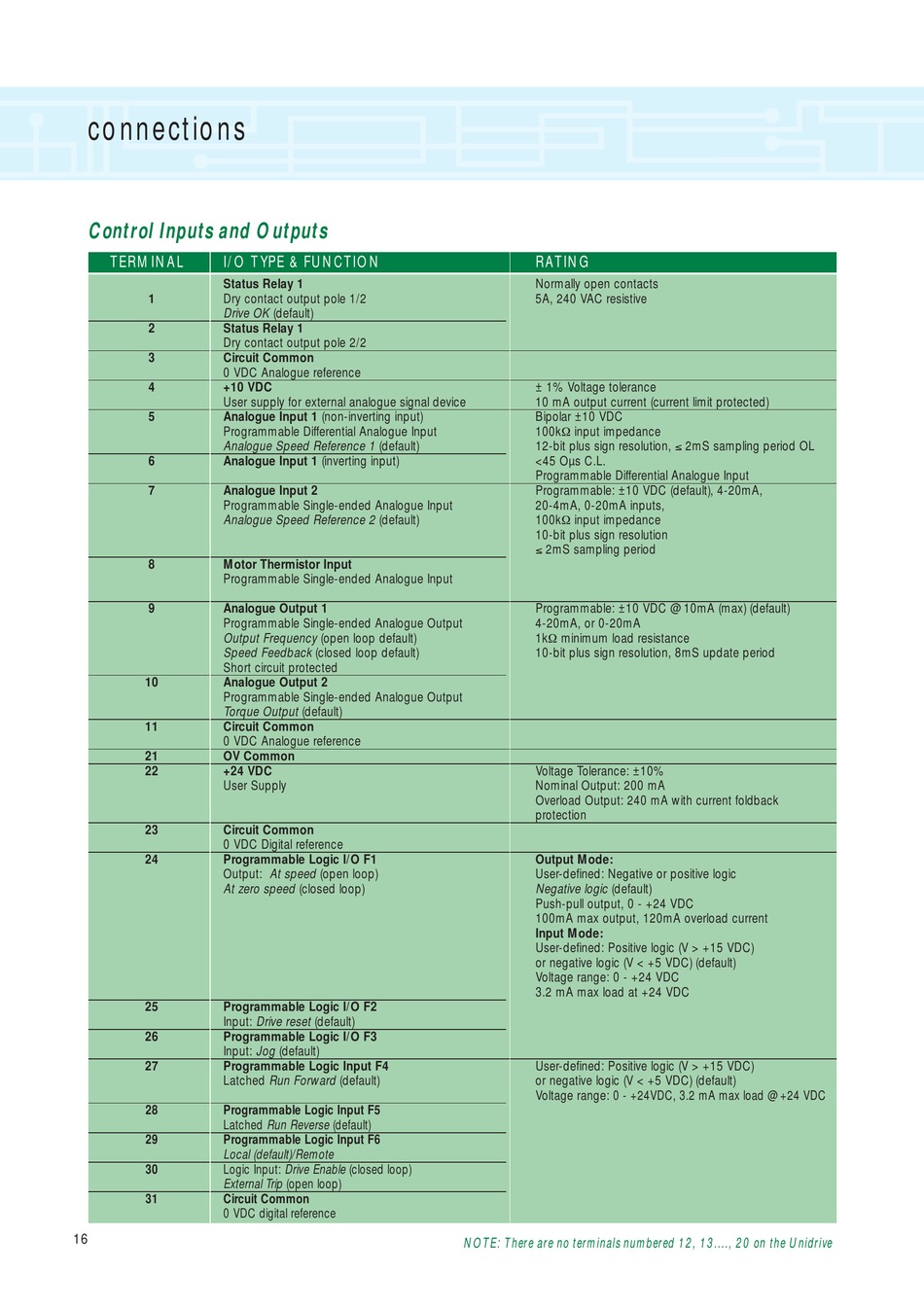

connections
Control Inputs and Outputs
TERMINAL
I/O TYPE & FUNCTION
Status Relay 1
1
Dry contact output pole 1/2
Drive OK (default)
2
Status Relay 1
Dry contact output pole 2/2
3
Circuit Common
0 VDC Analogue reference
4
+10 VDC
User supply for external analogue signal device
5
Analogue Input 1 (non-inverting input)
Programmable Differential Analogue Input
Analogue Speed Reference 1 (default)
6
Analogue Input 1 (inverting input)
7
Analogue Input 2
Programmable Single-ended Analogue Input
Analogue Speed Reference 2 (default)
8
Motor Thermistor Input
Programmable Single-ended Analogue Input
9
Analogue Output 1
Programmable Single-ended Analogue Output
Output Frequency (open loop default)
Speed Feedback (closed loop default)
Short circuit protected
10
Analogue Output 2
Programmable Single-ended Analogue Output
Torque Output (default)
11
Circuit Common
0 VDC Analogue reference
21
OV Common
22
+24 VDC
User Supply
23
Circuit Common
0 VDC Digital reference
24
Programmable Logic I/O F1
Output: At speed (open loop)
At zero speed (closed loop)
25
Programmable Logic I/O F2
Input: Drive reset (default)
26
Programmable Logic I/O F3
Input: Jog (default)
27
Programmable Logic Input F4
Latched Run Forward (default)
28
Programmable Logic Input F5
Latched Run Reverse (default)
29
Programmable Logic Input F6
Local (default)/Remote
30
Logic Input: Drive Enable (closed loop)
External Trip (open loop)
31
Circuit Common
0 VDC digital reference
16
RATING
Normally open contacts
5A, 240 VAC resistive
± 1% Voltage tolerance
10 mA output current (current limit protected)
Bipolar ±10 VDC
100k½ input impedance
12-bit plus sign resolution, ² 2mS sampling period OL
<45 Oµs C.L.
Programmable Differential Analogue Input
Programmable: ±10 VDC (default), 4-20mA,
20-4mA, 0-20mA inputs,
100k½ input impedance
10-bit plus sign resolution
² 2mS sampling period
Programmable: ±10 VDC @ 10mA (max) (default)
4-20mA, or 0-20mA
1k½ minimum load resistance
10-bit plus sign resolution, 8mS update period
Voltage Tolerance: ±10%
Nominal Output: 200 mA
Overload Output: 240 mA with current foldback
protection
Output Mode:
User-defined: Negative or positive logic
Negative logic (default)
Push-pull output, 0 - +24 VDC
100mA max output, 120mA overload current
Input Mode:
User-defined: Positive logic (V > +15 VDC)
or negative logic (V < +5 VDC) (default)
Voltage range: 0 - +24 VDC
3.2 mA max load at +24 VDC
User-defined: Positive logic (V > +15 VDC)
or negative logic (V < +5 VDC) (default)
Voltage range: 0 - +24VDC, 3.2 mA max load @ +24 VDC
NOTE: There are no terminals numbered 12, 13...., 20 on the Unidrive
