Electrical Installation
4.1
Power terminal connections

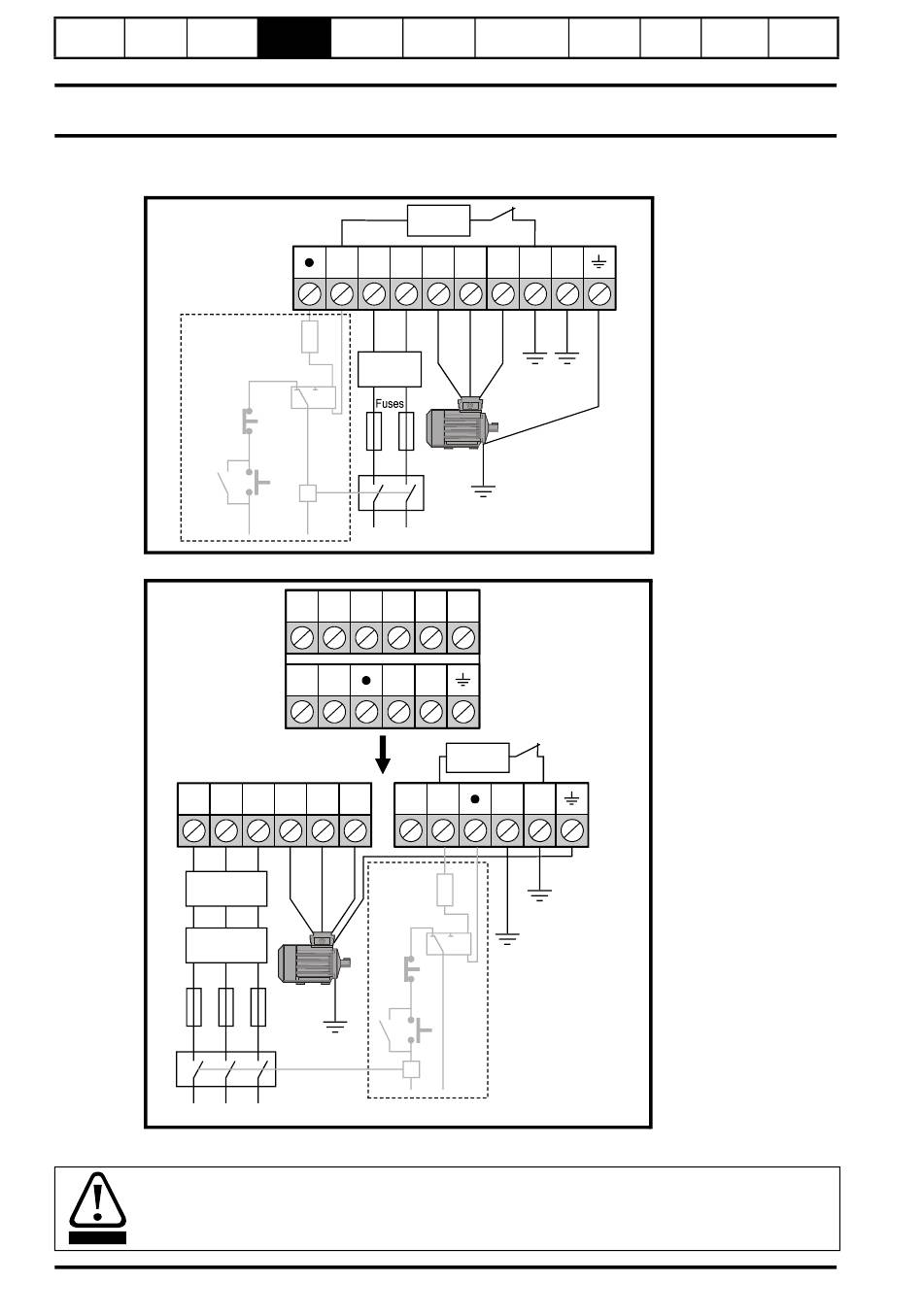

Figure 4-1 Size A power terminal connections
Optional
Thermal
protection
device
Stop
Start/
Reset
Figure 4-2 Sizes B and C power terminal connections
L1
L2
Optional
EMC filter
Optional
line reactor
Mains supply
*For further information, see section 4.3 Internal EMC filter on page 12.
Fuses/MCB
The AC supply to the drive must be fitted with suitable protection against overload and
short circuits. Failure to observe this requirement will cause risk of fire.
