typical applications
Unidrive
with UD70
Product
Measuring
Photoeye
Measuring
Separation
Conveyor
Conveyor
Unimotor
MC Series
Unimotor
Sync Encoder
Unimotor
Feed Control
Merge Conveyer
Conveyor
Unimotor
CTIU
Operator interface
Unidrive
Z
X
Y
X
Y
Z

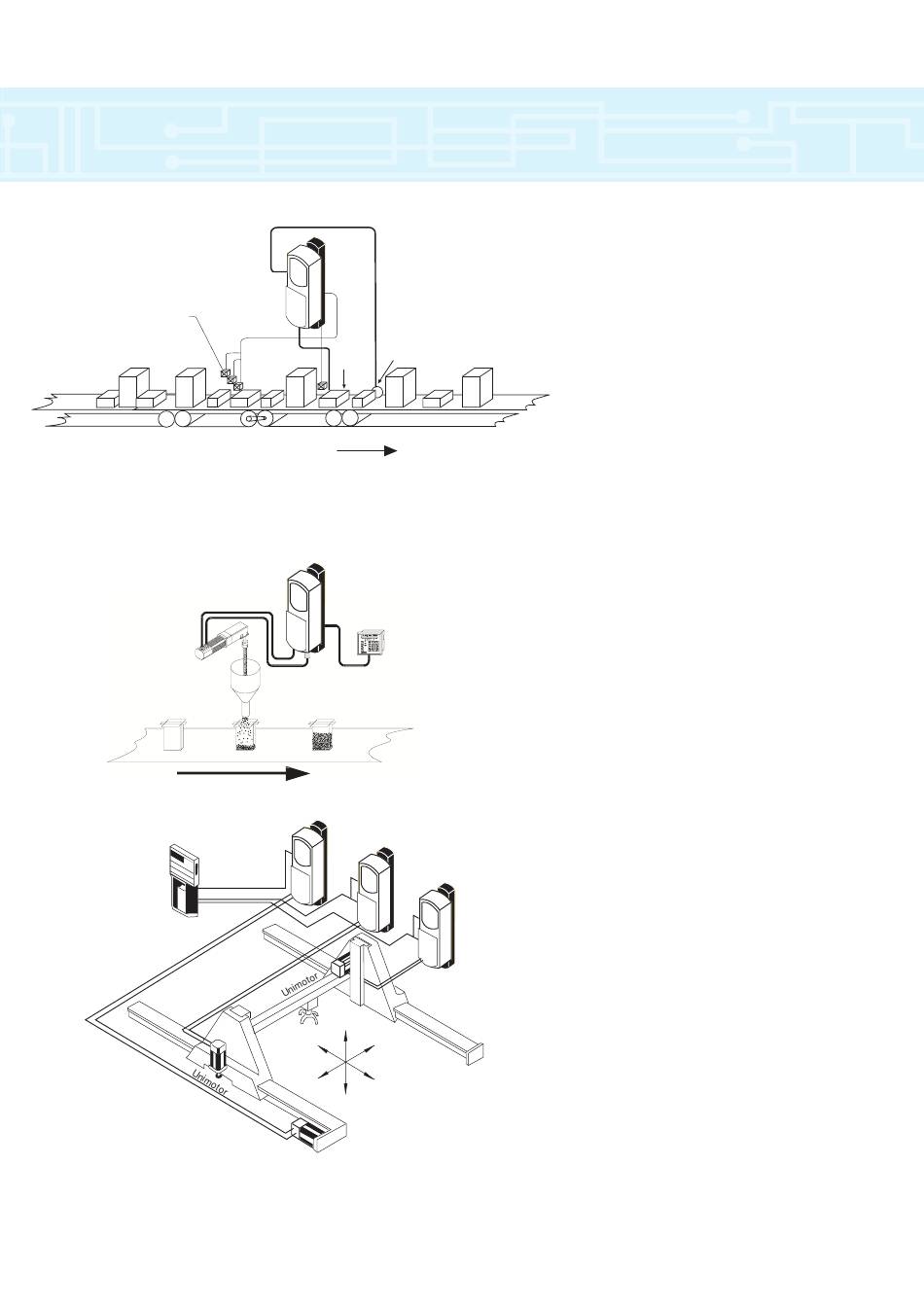

Constant Controller Maintains Constant Gap
Objective: Provide desired "Tail to Head" spacing.
Regardless of product length.
Solution: Unidrive with UD70 applications module.
Operation: Photocells trigger the PCM-19 to monitor
encoder input for product position, length and
height. The UD70 preforms all the
calculations required to deliver the product
to the merge conveyor at the user defined
parameters.
Results:
Easy configuration and control of product
tail to head or head to head spacing onto a
merge conveyor.
Auger Filler for Dry Material
Objective: Eliminate problems with clutch-brakes.
Solution: Unidrive and UD70 count position control.
Operation: Unidrive indexes exact revolutions for specific
volume. Operator only needs to enter user
units into CTIU operator interface.
Results:
Increased accuracy eliminates overfilling to
meet minimum weight requirements.
Waste is eliminated.
XYZ Axes Application
Objective: Increase accuracy and performance of multi-
axis systems.
Solution: MC204 and Unidrive
Operation: Unidrive read analog signals from multi-axis
controller to determine position and speed.
Results:
Fast and accurate positioning of all axis.
55
