Control Techniques Unidrive Servo Series Product Data page 37

accessories

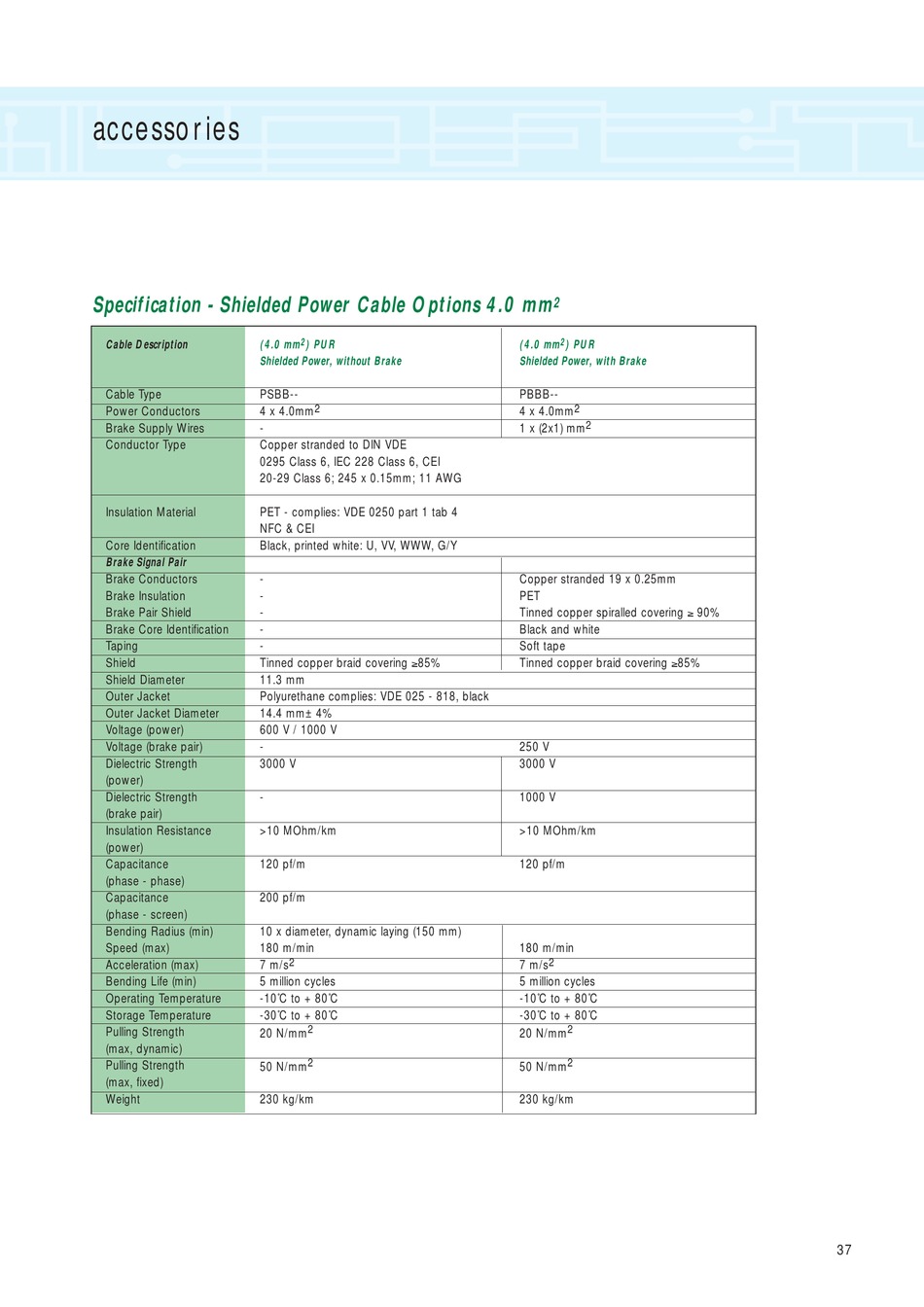

Specification - Shielded Power Cable Options 4.0 mm
Cable Description (4.0 mm
Shielded Power, without Brake
Cable Type PSBB--
Power Conductors 4 x 4.0mm
Brake Supply Wires -
Conductor Type Copper stranded to DIN VDE
0295 Class 6, IEC 228 Class 6, CEI
20-29 Class 6; 245 x 0.15mm; 11 AWG
Insulation Material PET - complies: VDE 0250 part 1 tab 4
NFC & CEI
Core Identification Black, printed white: U, VV, WWW, G/Y
Brake Signal Pair
Brake Conductors -
Brake Insulation -
Brake Pair Shield -
Brake Core Identification -
Taping -
Tinned copper braid covering ³85%
Shield
Shield Diameter 11.3 mm
Outer Jacket Polyurethane complies: VDE 025 - 818, black
Outer Jacket Diameter 14.4 mm± 4%
Voltage (power) 600 V / 1000 V
Voltage (brake pair) -
Dielectric Strength 3000 V
(power)
Dielectric Strength -
(brake pair)
Insulation Resistance >10 MOhm/km
(power)
Capacitance 120 pf/m
(phase - phase)
Capacitance 200 pf/m
(phase - screen)
Bending Radius (min) 10 x diameter, dynamic laying (150 mm)
Speed (max) 180 m/min
Acceleration (max) 7 m/s
Bending Life (min) 5 million cycles
Operating Temperature -10˚C to + 80˚C
Storage Temperature -30˚C to + 80˚C
Pulling Strength
20 N/mm
(max, dynamic)
Pulling Strength
50 N/mm
(max, fixed)
Weight 230 kg/km
2
) PUR
2
2
2
2
2
2
(4.0 mm ) PUR
Shielded Power, with Brake
PBBB--
2
4 x 4.0mm
2
1 x (2x1) mm
Copper stranded 19 x 0.25mm
PET
Tinned copper spiralled covering ³ 90%
Black and white
Soft tape
Tinned copper braid covering ³85%
250 V
3000 V
1000 V
>10 MOhm/km
120 pf/m
180 m/min
2
7 m/s
5 million cycles
-10˚C to + 80˚C
-30˚C to + 80˚C
2
20 N/mm
2
50 N/mm
230 kg/km
37
