STEP 2: Wire the drive

Power Connections

Connect the supply and motor connections using the cables and fuses or MCB's quoted in the table 1-2. When using a
single-phase supply, the supply should be connected to L1 and L2.

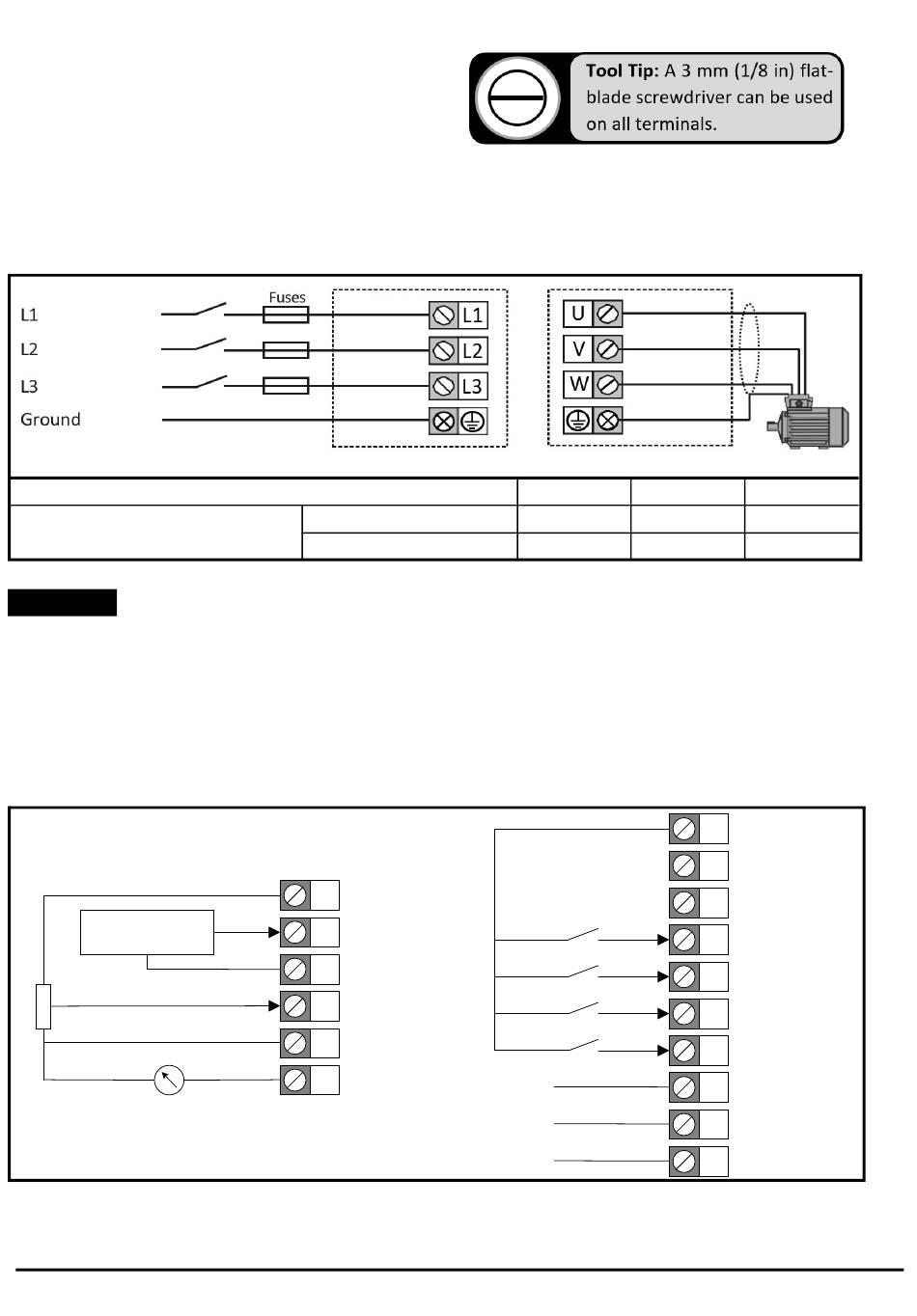

Figure 1-2 Power terminal connection
Recommended Torque Setting
NOTE
To meet UL requirements, UL Listed closed-loop connectors sized according to the field wiring must be used for
ground connections.
Ground connections
Ground conductor size:- Either 10 mm² or two conductors of the same cross-sectional area as the input conductors.
For location of ground connection refer to Figure 1-1.
Control connections
Figure 1-3
Helium control terminal connections (Default Configurations)
Remote Reference
Local Reference
10k
Ramp Output
For other IO configurations see Control Connections section in the User Guide or use Marshal.
3
Drive Voltage Rating
Power Connections
Ground Connections
1
+10 V Output
2
4-20 mA Input...
3
0 V
4
0-10 V Input...
5
0 V
6
Analog Output
110 V
0.5 Nm
1.5 Nm
Drive Healthy
Drive Unhealthy
Commander S100 Step by Step Guide
230 V 400 V
0.5 Nm 0.6 Nm
1.5 Nm 1.5 Nm
9
+24 V Output
10
0 V
11
No Default Funciton...
12
Enable...
13
Run Forward...
14
Run Reverse...
15
Reference Select...
41
Relay Normally Open
42
Relay Common
43
Relay Normally Closed
