drive installation

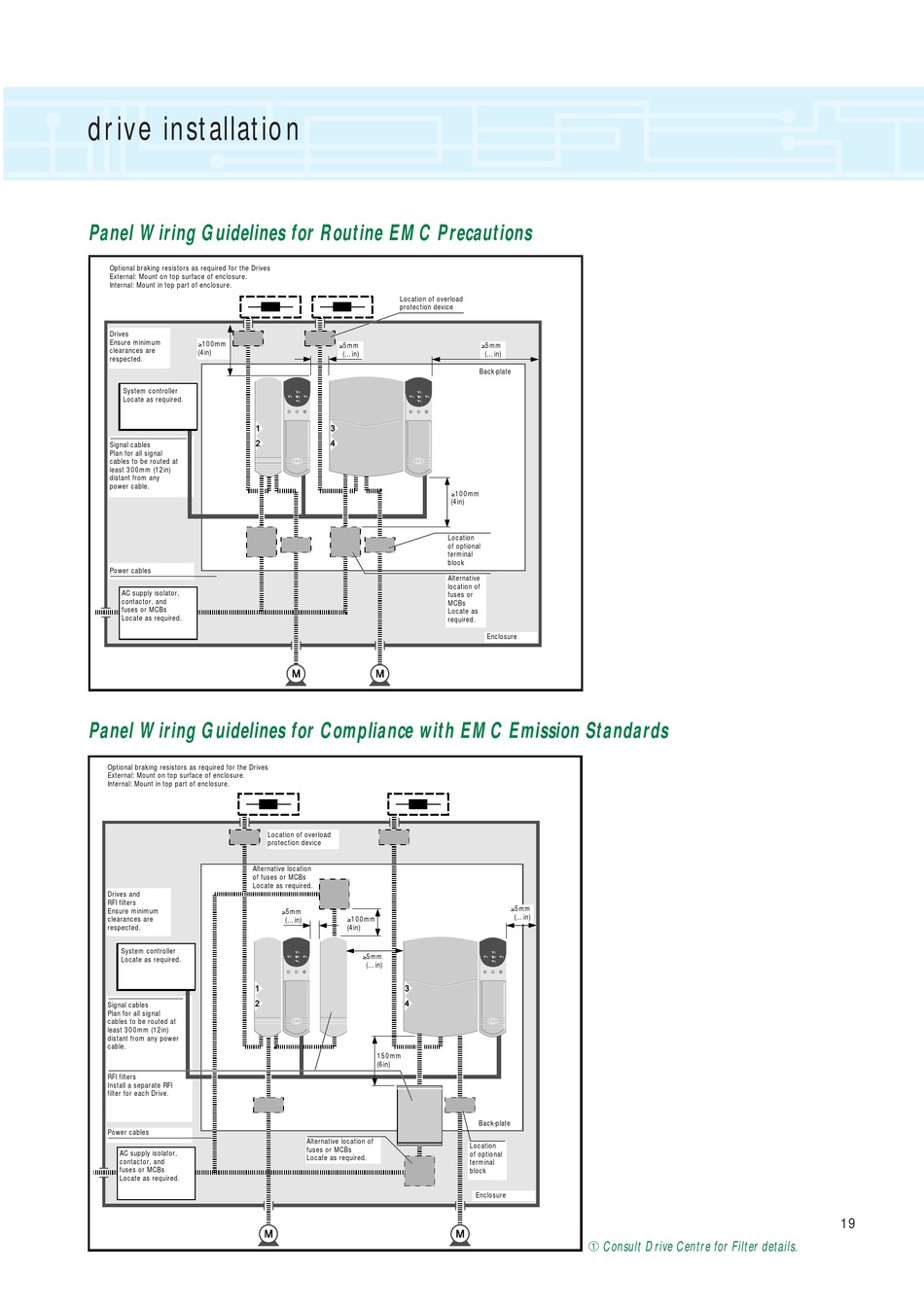

Panel Wiring Guidelines for Routine EMC Precautions
Optional braking resistors as required for the Drives
External: Mount on top surface of enclosure.
Internal: Mount in top part of enclosure.
Drives
Ensure minimum
³100mm
clearances are
(4in)
respected.
System controller
Locate as required.
Signal cables
Plan for all signal
cables to be routed at
least 300mm (12in)
distant from any
power cable.
Power cables
AC supply isolator,
contactor, and
fuses or MCBs
Locate as required.
Panel Wiring Guidelines for Compliance with EMC Emission Standards
Optional braking resistors as required for the Drives
External: Mount on top surface of enclosure.
Internal: Mount in top part of enclosure.
Alternative location
of fuses or MCBs
Locate as required.
Drives and
RFI filters
Ensure minimum
clearances are
respected.
System controller
Locate as required.
Signal cables
Plan for all signal
cables to be routed at
least 300mm (12in)
distant from any power
cable.
RFI filters
Install a separate RFI
filter for each Drive.
Power cables
AC supply isolator,
contactor, and
fuses or MCBs
Locate as required.
Location of overload
protection device
³5mm
(...in)
Location of overload
protection device
³5mm
³100mm
(...in)
(4in)
³5mm
(...in)
150mm
(6in)
Alternative location of
fuses or MCBs
Locate as required.
³5mm
(...in)
Back-plate
³100mm
(4in)
Location
of optional
terminal
block
Alternative
location of
fuses or
MCBs
Locate as
required.
Enclosure
³5mm
(...in)
Back-plate
Location
of optional
terminal
block
Enclosure
Consult Drive Centre for Filter details.
