Control Techniques Unidrive Servo Series Product Data page 38

accessories

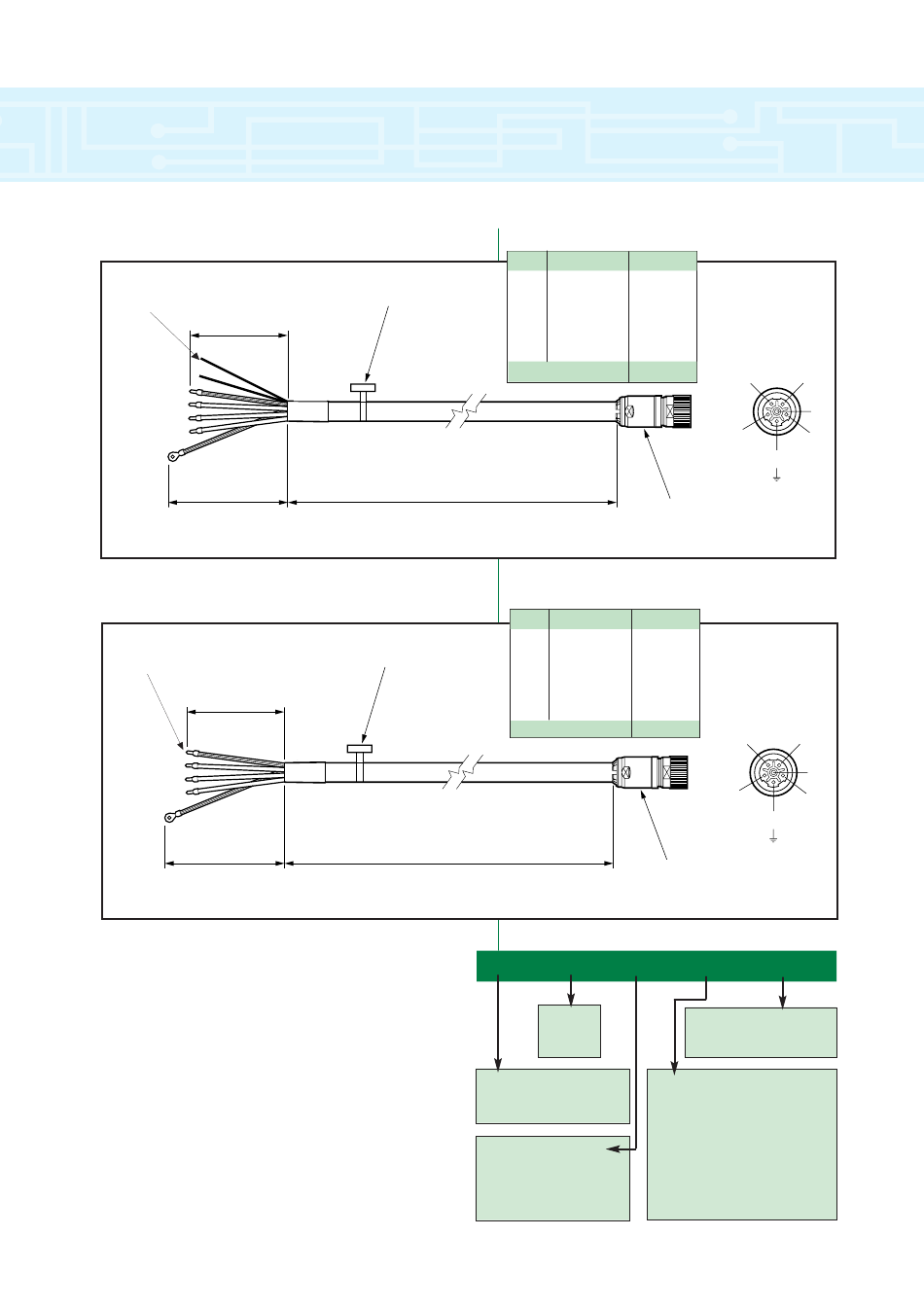

Outline Drawing - Power Cable With Brake
Drive End
Termination
115.0 ±10
Brake
Earth
Power U
Power V
Power W
Screen
130.0 ±10
Outline Drawing - Power Cable Without Brake
Drive End
Termination
115.0 ±10
Earth
Power U
Power V
Power W
Screen
130.0 ±10
Ordering Information - Power Cables
Use the information on the following chart to create an
order code. The top line is an example of an order code.
38
Drive End
Termination Identity Label
Cable length: min.= 3.0 metres / max.= 100 metres
Tolerance: -0.0 / +50mm
Drive End
Termination Identity Label
Cable length: min.= 3.0 metres / max.= 100 metres
Tolerance: -0.0 / +50mm
Power Cable Connections - with Brake
Pin Conductor Function
1 '1' Phase U
2 '2' Phase V
3 Y/G Earth
4 '3' Phase W
5 '5' Brake
6 '6' Brake
CONNECTOR BODY Screen
Connector
Assembly
(Motor End)
Power Cable Connections - without Brake
Pin Conductor Function
1 '1' Phase U
2 '2' Phase V
3 Y/G Earth
4 '3' Phase W
5 - -
6 - -
CONNECTOR BODY Screen
Connector
Assembly
(Motor End)
PB B B
Insulator:
B - PUR
Cable Type: Connector Types:
PS - Power (Standard)
A - Ferrule ends at Drive, Inter-
PB - Power (With brake)
B - Ferrule ends at Drive,
Conductor Size:
C - Ferrule ends at Drive and
A - 4x 2.5mm2 conductor
(75A - 190A)
X - Cable only
B - 4x 4.0mm2 conductor
(190B - 190D)
5 1
6
4
2
(3)
Connector
Face
5 1
6
4
2
(3)
Connector
Face
B 095
Cable Length (metres):
Min - 003 (3 metres)
Max - 100 (100 metres)
connectron at Motor (not 190)
unfinished cut end at Motor
Motor for hybrid or terminal box
