User Interface

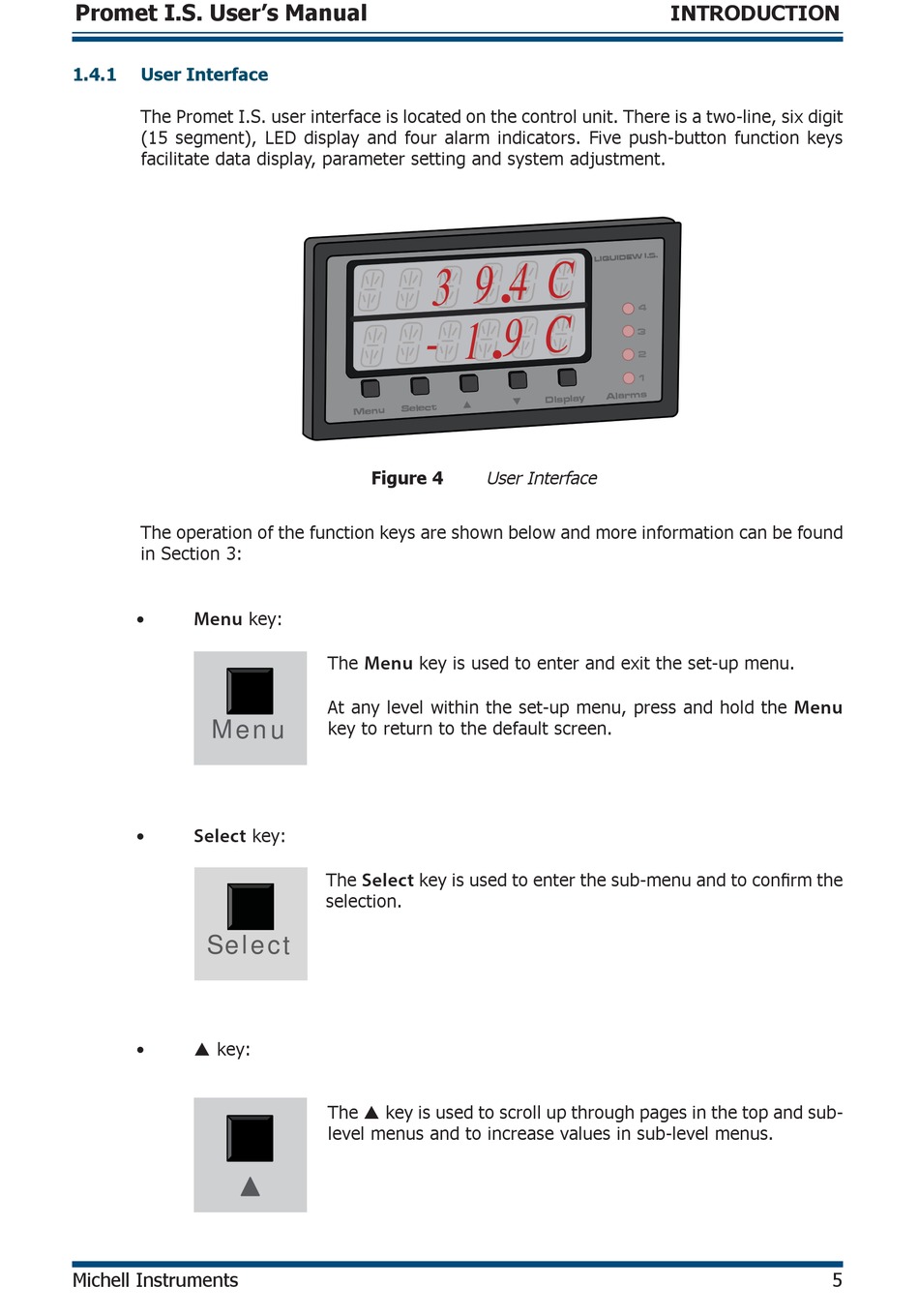

The Promet I.S. user interface is located on the control unit. There is a two-line, six digit

(15 segment), LED display and four alarm indicators. Five push-button function keys

facilitate data display, parameter setting and system adjustment.

The operation of the function keys are shown below and more information can be found

in Section 3:

•

Select

•

 key:

Michell Instruments

Figure 4

key:

The

key is used to enter and exit the set-up menu.

At any level within the set-up menu, press and hold the

key to return to the default screen.

key:

The

key is used to enter the sub-menu and to conﬁ rm the

Select

selection.

The  key is used to scroll up through pages in the top and sub-

level menus and to increase values in sub-level menus.

4 C

3 9

- 1 9 C

User Interface
