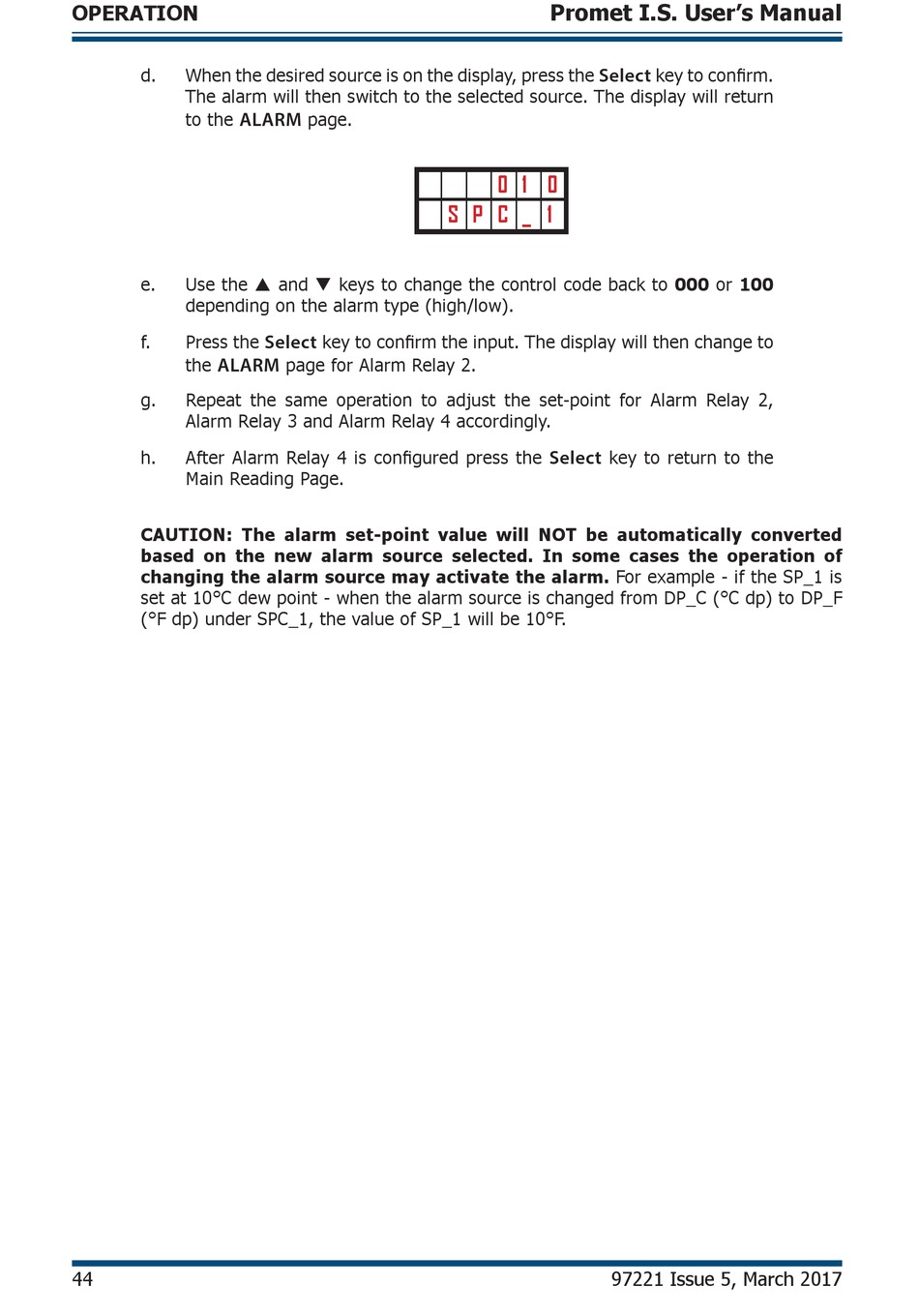

Michell Instruments Promet I.S. User Manual page 52

OPERATION
d. When the desired source is on the display, press the
The alarm will then switch to the selected source. The display will return
to the
ALARM
e. Use the  and  keys to change the control code back to 000 or 100
depending on the alarm type (high/low).
f. Press the
the
ALARM
g. Repeat the same operation to adjust the set-point for Alarm Relay 2,
Alarm Relay 3 and Alarm Relay 4 accordingly.
h. After Alarm Relay 4 is confi gured press the
Main Reading Page.
CAUTION: The alarm set-point value will NOT be automatically converted
based on the new alarm source selected. In some cases the operation of
changing the alarm source may activate the alarm. For example - if the SP_1 is
set at 10°C dew point - when the alarm source is changed from DP_C (°C dp) to DP_F
(°F dp) under SPC_1, the value of SP_1 will be 10°F.
44
page.
key to confi rm the input. The display will then change to
Select
page for Alarm Relay 2.
Promet I.S. User's Manual
Select
0 1 0
S P C _ 1
key to return to the
Select
97221 Issue 5, March 2017
key to confi rm.
