Promet EExd User's Manual
3

OPERATION

3.1

System Operation

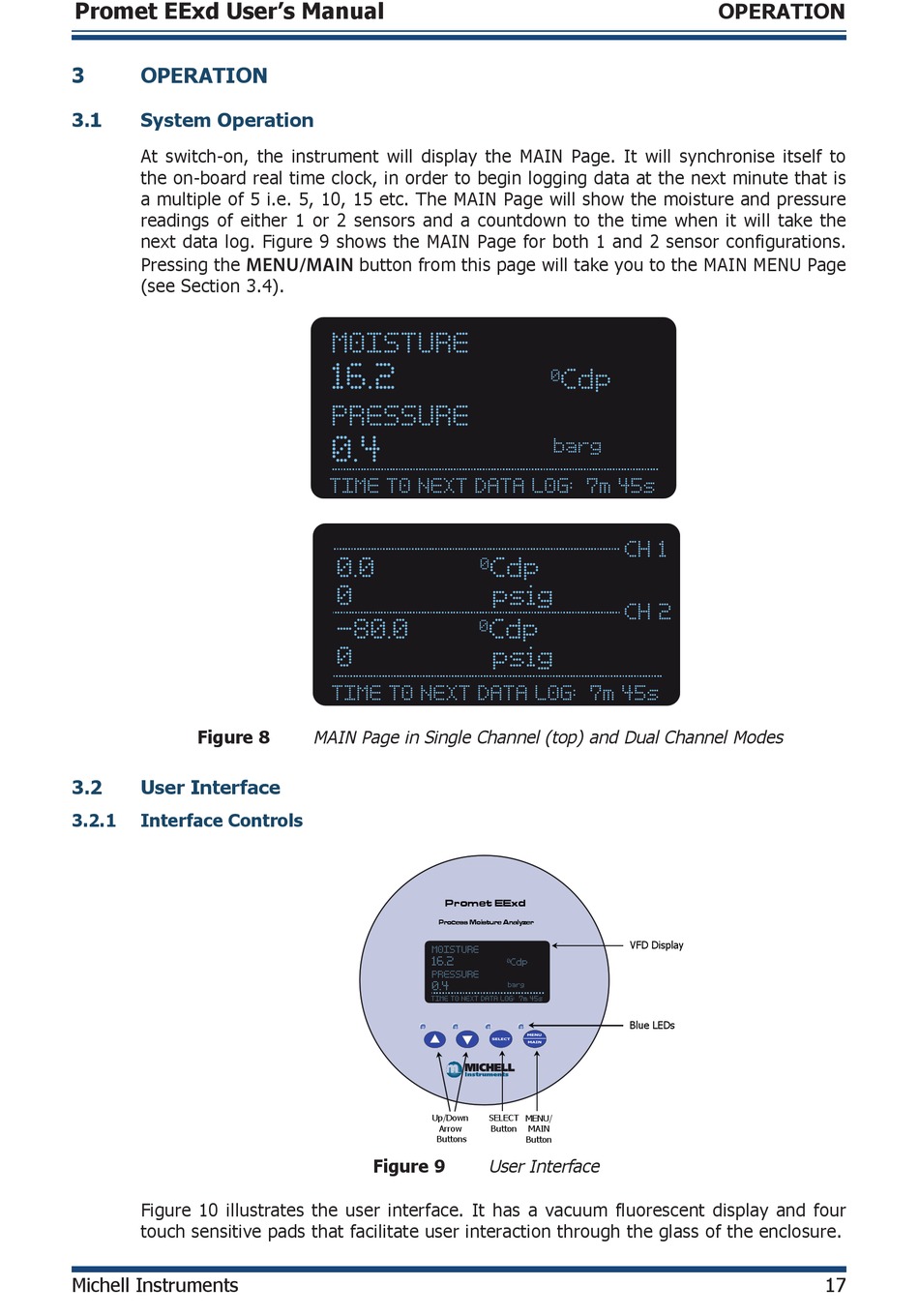

At switch-on, the instrument will display the MAIN Page. It will synchronise itself to
the on-board real time clock, in order to begin logging data at the next minute that is
a multiple of 5 i.e. 5, 10, 15 etc. The MAIN Page will show the moisture and pressure
readings of either 1 or 2 sensors and a countdown to the time when it will take the
next data log. Figure 9 shows the MAIN Page for both 1 and 2 sensor configurations.
Pressing the
(see Section 3.4).
Figure 8
3.2

User Interface

3.2.1

Interface Controls

Figure 10 illustrates the user interface. It has a vacuum fluorescent display and four
touch sensitive pads that facilitate user interaction through the glass of the enclosure.
Michell Instruments
MENU/MAIN
button from this page will take you to the MAIN MENU Page
MOISTURE
16.2
PRESSURE
0.4
TIME TO NEXT DATA LOG: 7m 45s
0.0
0
-80.0
0
TIME TO NEXT DATA LOG: 7m 45s
MAIN Page in Single Channel (top) and Dual Channel Modes
Figure 9
Cdp
0
barg
0 Cdp
psig
0 Cdp
psig
Promet EExd
Process Moisture Analyzer
MOISTURE
16.2
Cdp
0
PRESSURE
0.4
barg
TIME TO NEXT DATA LOG: 7m 45s
MENU
SELECT
MAIN
Up/Down SELECT
MENU/
Arrow Button MAIN
Buttons Button
User Interface
OPERATION
CH 1
CH 2
VFD Display
Blue LEDs
