User Interface; Figure 4 User Interface - Michell Instruments Liquidew I.S. User Manual

Liquidew I.S. User's Manual
1.4.1

User Interface

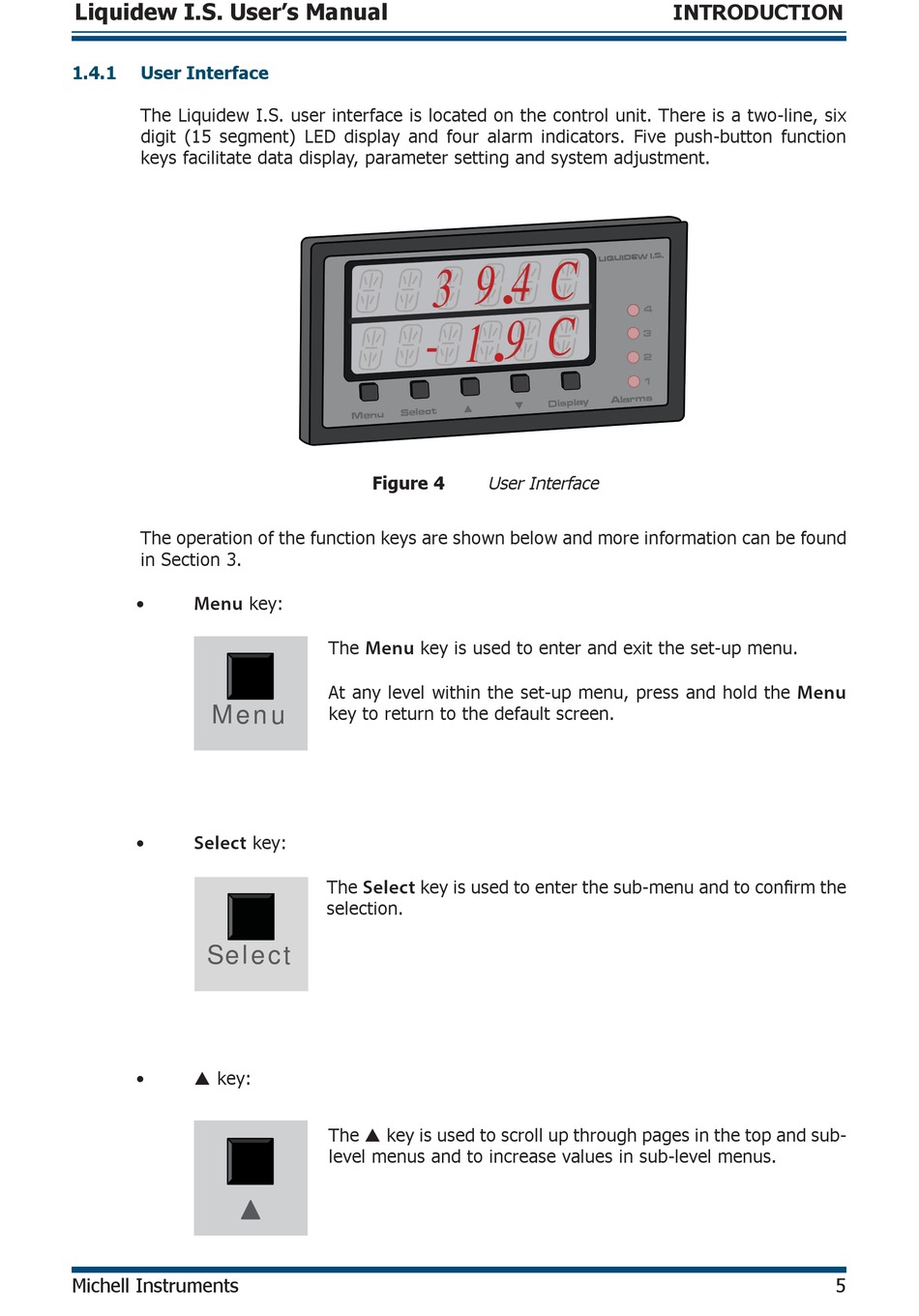

The Liquidew I.S. user interface is located on the control unit. There is a two-line, six
digit (15 segment) LED display and four alarm indicators. Five push-button function
keys facilitate data display, parameter setting and system adjustment.
The operation of the function keys are shown below and more information can be found
in Section 3.
•
Menu
Menu
•
Select
Select
•  key:
Michell Instruments
Figure 4
key:
The key is used to enter and exit the set-up menu.
Menu
At any level within the set-up menu, press and hold the
key to return to the default screen.
key:
The key is used to enter the sub-menu and to confi rm the
Select
selection.
The  key is used to scroll up through pages in the top and sub-
level menus and to increase values in sub-level menus.
.
