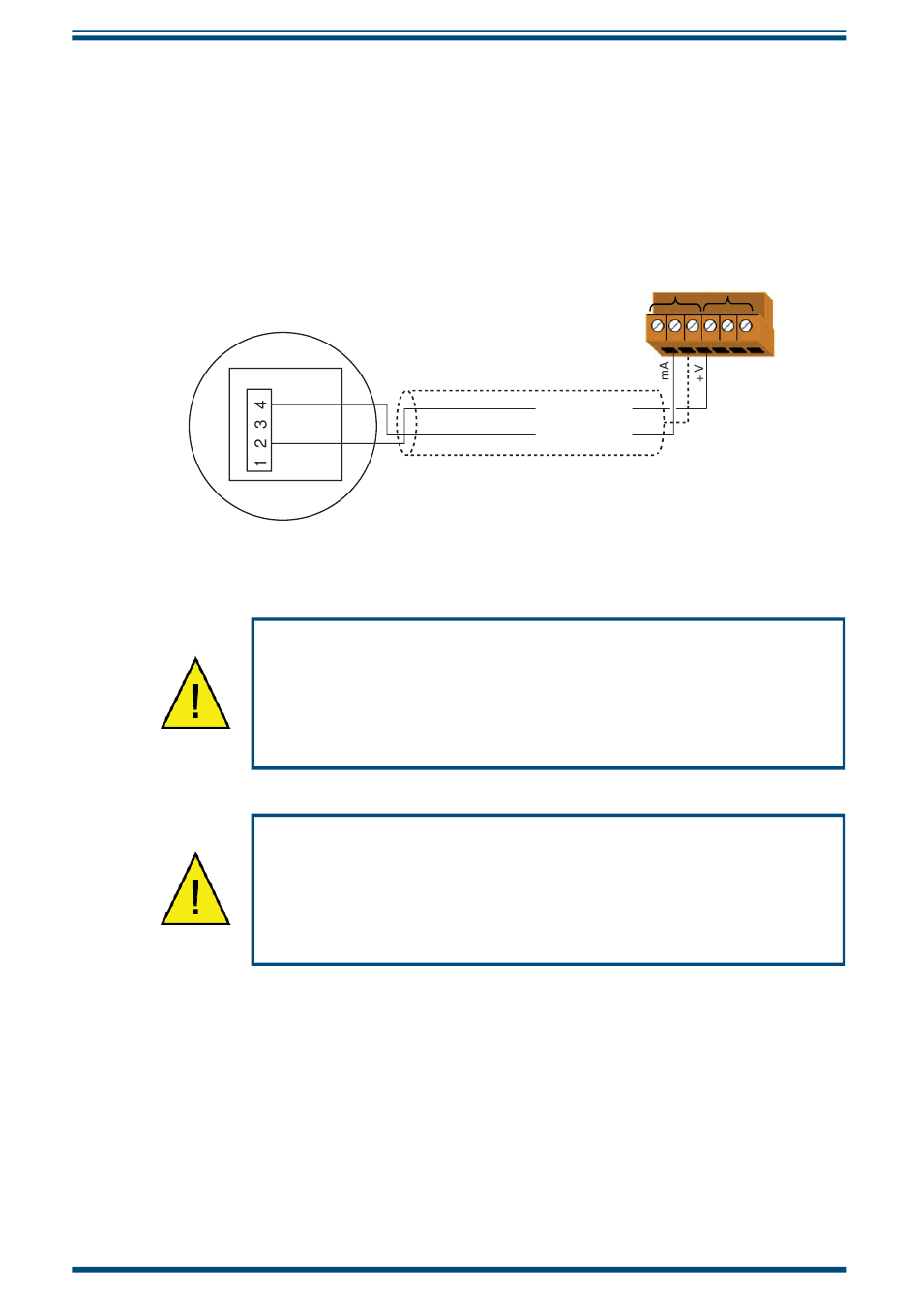

Figure 18 Pin Assignment Drawing - Michell Instruments Promet I.S. User Manual

INSTALLATION
c. Ensure that the outer diameter of the selected cable is matched to an EExe
M20 cable gland (5). Unscrew the cable gland (5) and slide the cable
through the cable gland (5) and into the terminal housing (1) through the
cable entry (3).
d. Remove the terminal block (4) from the PCB for easier operation. Connect
the signal cable leads with the crimps/wire ferrules to the screw terminals
on the terminal block (4) in accordance with the following pin-assignment
drawing.
e. Press the terminal block (4) back into its socket fi rmly.
f. Tighten the cable gland (5) around the cable. Ensure that the sealing is
not damaged and that the cable gland and seals are assembled correctly
in order to ensure ingress protection.
g. Install and tighten the terminal housing lid (2).
26
HAZARDOUS AREA
NOTE: Connect cable screen to cable gland
Figure 18
Always connect the 4-20mA return signal to a suitable load (in
this case, back into the control unit) before the power is applied.
Without this connection the transmitter may be damaged if
allowed to operate for prolonged periods. The maximum load is
500 Ω at 24 V or 250 Ω at 12 V.
When the crimps/wire ferrules are installed into the connector
terminal block ensure that they are inserted completely. When
all wire connections are made, ensure that there is a minimum
clearance distance of 2mm (0.008") between each terminal.
Promet I.S. User's Manual
12 V Min, 28 V max
+ 4-20mA lead
- 4-20mA lead
4-20mA
Pin Assignment Drawing
97221 Issue 5, March 2017
SENSOR INPUTS Block
Dew Point Temp
