Promet I.S. User's Manual
Premium Sampling Systems
Enclosure
Enclosure Mounting
Enclosure Ingress
Protection
Enclosure Temperature
Control
Heater Power Supply
Operating Environment
Hazardous Area Certifi cation
Certifi cation Codes
Pattern Approval
A.1

Dimensional Drawings

Michell Instruments
304 stainless steel (EN1.4301) enclosure
Option for complete enclosure in 316 stainless steel (EN1.4401)
All fi xtures stainless steel
Galvanized steel internal mounting plate
Open panel version available for indoor installation
Dimensions 800 x 600 x 300mm (31.5 x 23.6 x 11.8") (h x w x d)
Stainless steel wall mounting brackets
IP66
Heater/thermostat options for fi xed set-point +20°C (+68°F) or
adjustable set-point range 0 to control 50°C (+32 to +122°F)
110/120 or 220/240/255 V AC, 47/63 Hz
Power consumption 100 W max
Shaded position, on or off shore, -20 to +50°C (-4 to +122°F)
(-40 to +60°C (-40 to +140°F) max transient)
Enclosure cooling option recommended for climatic ambient > +45°C
(+113°F)
ATEX II 1 G Ex ia IIC T4 Ga (-20°C to +70°C)
IECEx Ex ia IIC T4 Ga (-20°C to +70°C)
TC TR Ex 0Ex ia IIC T4 Ga (-20°C to +70°C)
FM Class I, Division 1, Groups A B C D, T4
CSA Class I, Division 1, Groups A B C D, T4
GOST-R, GOST-K
328mm
(12.9")
Sample port
1/8" NPT (F)
CHANNEL 1 CHANNEL 3
CHANNEL 2 CHANNEL 4
483mm
(19")

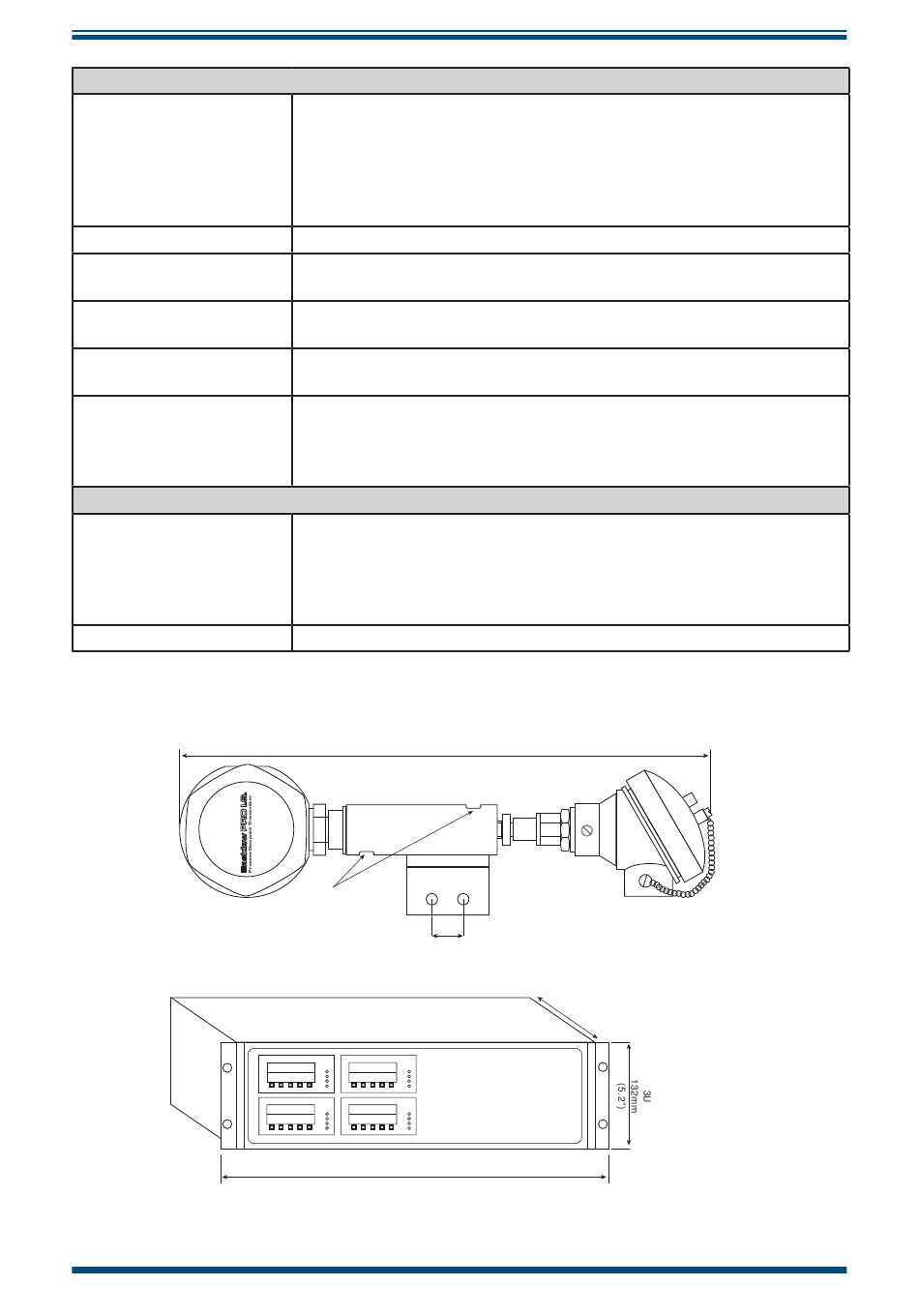

Figure 24 Dimensional Drawings
20mm
(0.8")
375mm + 100mm for cable clearance
APPENDIX A
(14.75" + 3.9")
47
