2.4.2.1 Power Supply Input Connection; Figure 10 Power Input Socket - Michell Instruments Promet I.S. User Manual

INSTALLATION

2.4.2.1 Power Supply Input Connection

85 to 265 V AC
The AC power supply connection is a push fi t socket labelled
below.
The method of connection is as follows:
a. Turn off the AC power. Ensure that both ends of the power cable are
potential free, i.e. not connected to an AC power supply.
b. Check that the
c. Push the IEC connector fi rmly into the
d. Connect the free end of the power cable to a suitable AC power supply
source (voltage range 85 to 265 V AC, 47/63 Hz) and switch on the
AC supply. The instrument may then be switched on, as required, by
pressing the
18


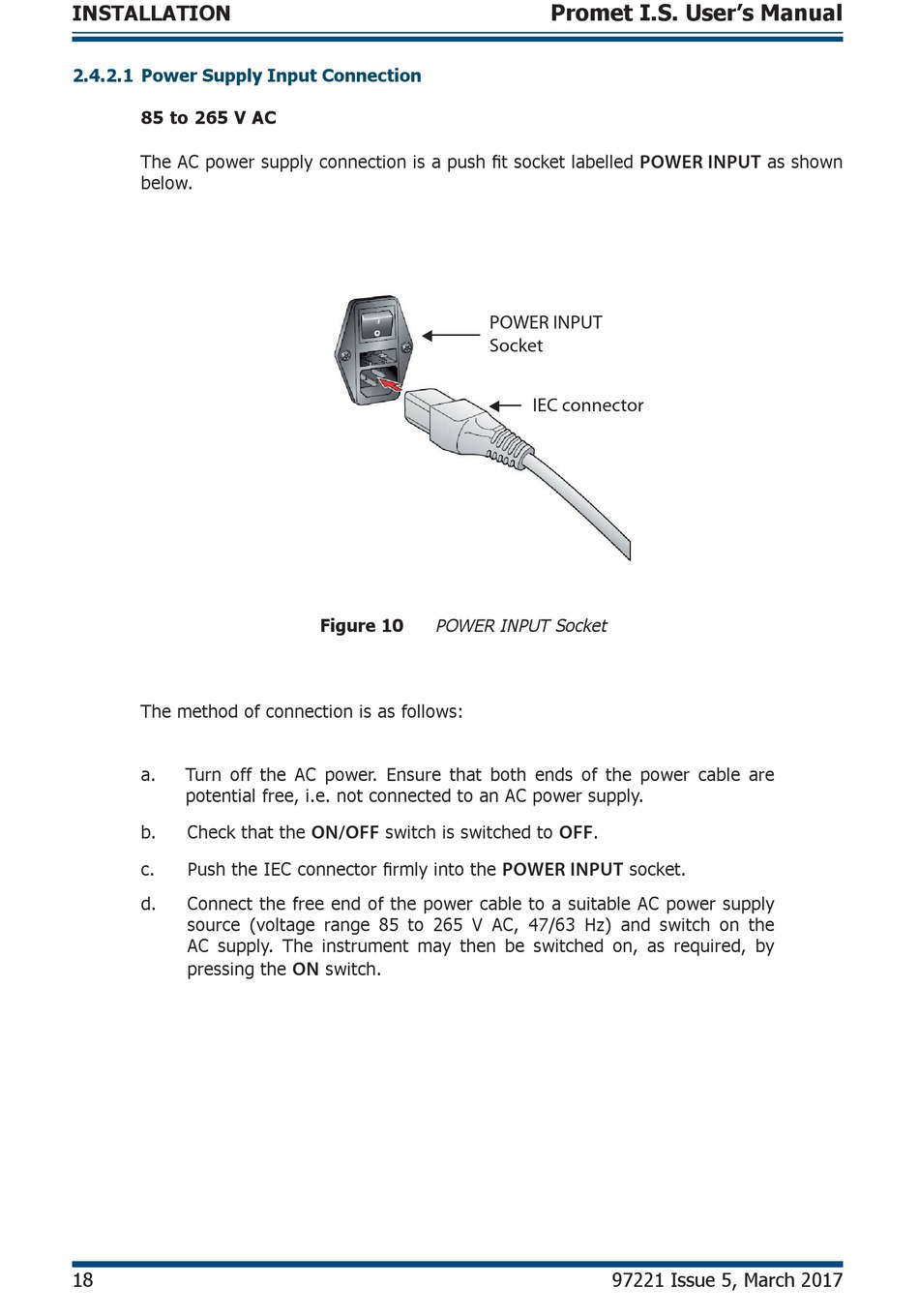

Figure 10 POWER INPUT Socket
switch is switched to
ON/OFF
switch.
ON
Promet I.S. User's Manual
POWER INPUT
POWER INPUT
Socket
IEC connector

.
OFF
socket.
POWER INPUT
97221 Issue 5, March 2017
as shown
