INSTALLATION
2.3.2

Mounting the Promet I.S. Sensor Assembly into the Sampling System

NOTE: If the analyzer has been ordered with a sampling system, the Promet
I.S. sensor assembly will have been installed and tested in the factory. In
that case disregard the following section and go to Section 2.3.3.
The Promet I.S. sensor assembly consists of:
1
Dew-point transmitter - Easidew PRO I.S.
2
Pressure transmitter (optional)
Sensor block
3
To assemble, proceed as follows:
a. Remove the protective cap on the dew-point transmitter (Easidew PRO
I.S.) before installation and retain for future use. Take care to prevent any
contamination of the sensor before installation (do not touch or handle
the sintered guard - located on the tip of the Easidew PRO I.S.).
12
HIGH PRESSURE! High pressure gases are potentially hazardous.
Energy stored in these gases can be released suddenly and with
extreme force. High pressure systems should be assembled and
operated only by people who have been trained in proper safety

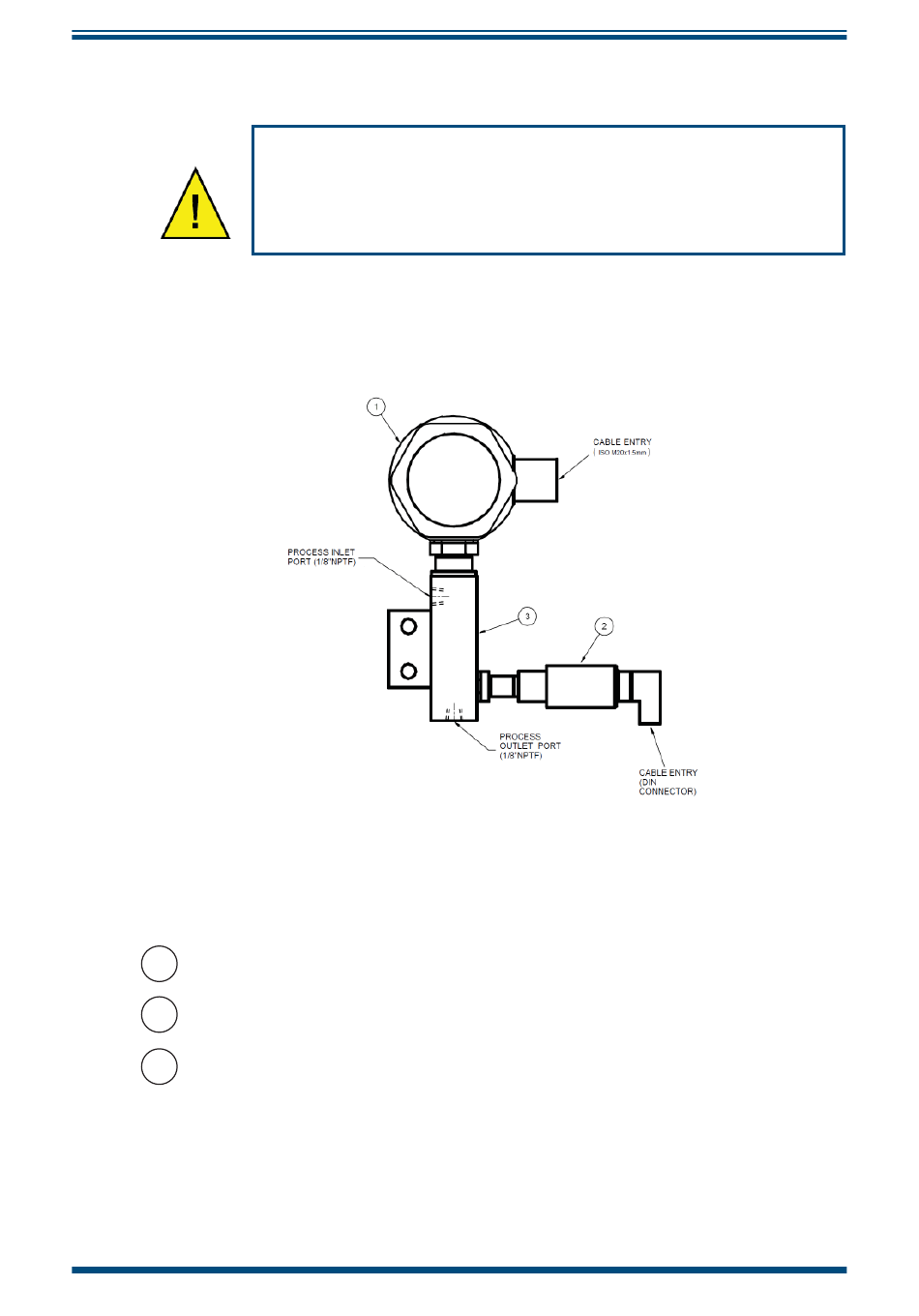

Promet I.S. Sensor Assembly
Figure 7
Promet I.S. User's Manual
practices.
97221 Issue 5, March 2017
