INSTALLATION

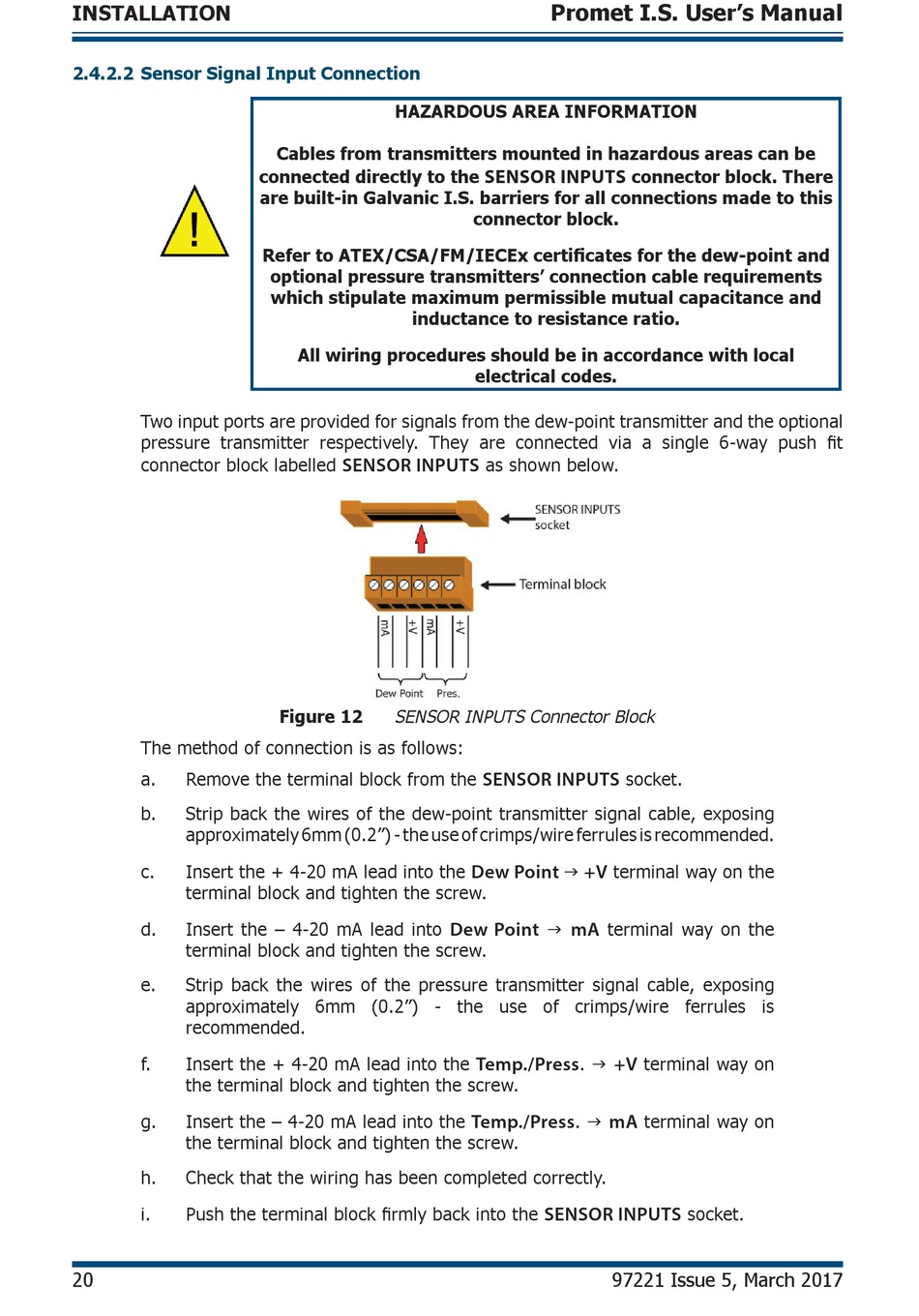

2.4.2.2 Sensor Signal Input Connection

Two input ports are provided for signals from the dew-point transmitter and the optional
pressure transmitter respectively. They are connected via a single 6-way push fi t
connector block labelled
The method of connection is as follows:
a. Remove the terminal block from the
b. Strip back the wires of the dew-point transmitter signal cable, exposing
approximately 6mm (0.2") - the use of crimps/wire ferrules is recommended.
c. Insert the + 4-20 mA lead into the
terminal block and tighten the screw.
d. Insert the – 4-20 mA lead into
terminal block and tighten the screw.
e. Strip back the wires of the pressure transmitter signal cable, exposing
approximately 6mm (0.2") - the use of crimps/wire ferrules is
recommended.
f. Insert the + 4-20 mA lead into the
the terminal block and tighten the screw.
g. Insert the – 4-20 mA lead into the
the terminal block and tighten the screw.
h. Check that the wiring has been completed correctly.
i. Push the terminal block fi rmly back into the
20
HAZARDOUS AREA INFORMATION
Cables from transmitters mounted in hazardous areas can be
connected directly to the
are built-in Galvanic I.S. barriers for all connections made to this
Refer to ATEX/CSA/FM/IECEx certifi cates for the dew-point and
optional pressure transmitters' connection cable requirements
which stipulate maximum permissible mutual capacitance and
inductance to resistance ratio.
All wiring procedures should be in accordance with local
SENSOR INPUTS
SENSOR INPUTS Connector Block
Figure 12
