Fc Identification; Type Code; Introduction - Danfoss VLT FC 51 Series Programming Manual

VLT Micro Drive FC 51

2. Introduction

2.1.1. FC Identification

Below is an example of an identification sticker. This sticker is situated on the frequency converter
and shows the type and options fitted to the unit. See following tables for details, how to read the
Type code string.

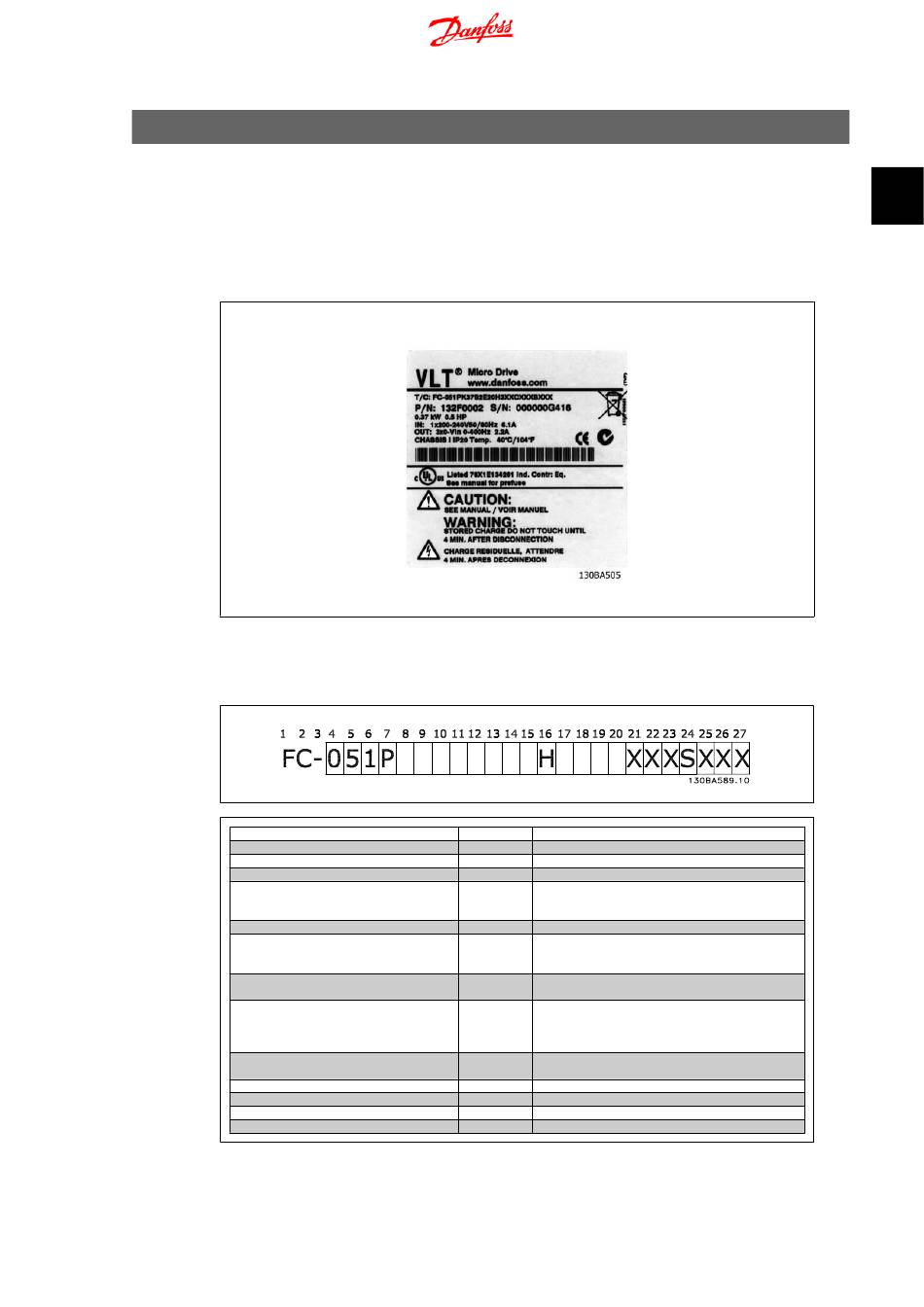

Illustration 2.1: This example shows the identification sticker.

2.1.2. Type Code

Description
Product group
Series and product type
Power size
Mains voltage
Enclosure
RFI filter
Brake
Display
Coating PCB
Mains option
Adaptation A
Adaptation B
Software release
Table 2.1: Type code description
Pos
1-3
4-6
7-10
11-12
13-15
16-17
18
19
20
21
22
23
24-27
MG.02.C2.02 - VLT ® is a registered Danfoss trademark
Possible choice
Adjustable Frequency Converters
Micro Drive
0.18 - 7.5 kW
S2: Single phase 200 - 240 V AC
T 2: Three phase 200 - 240 V AC
T 4: Three phase 380 - 480 V AC
IP20/Chassis
HX: No RFI filter
H1: RFI filter class A1/B
H3:RFI filter A1/B (reduced cable length)
B: Brake chopper included
X: No brake chopper included
X: No Local Control Panel
N: Numerical Local Control Panel (LCP)
P: Numerical Local Control Panel (LCP) with potentiom-
eter
C: Coated PCB
X. No coated PCB
X: No mains option
No adaptation
No adaptation
Latest release - std. software
