2 Removing the press clamp

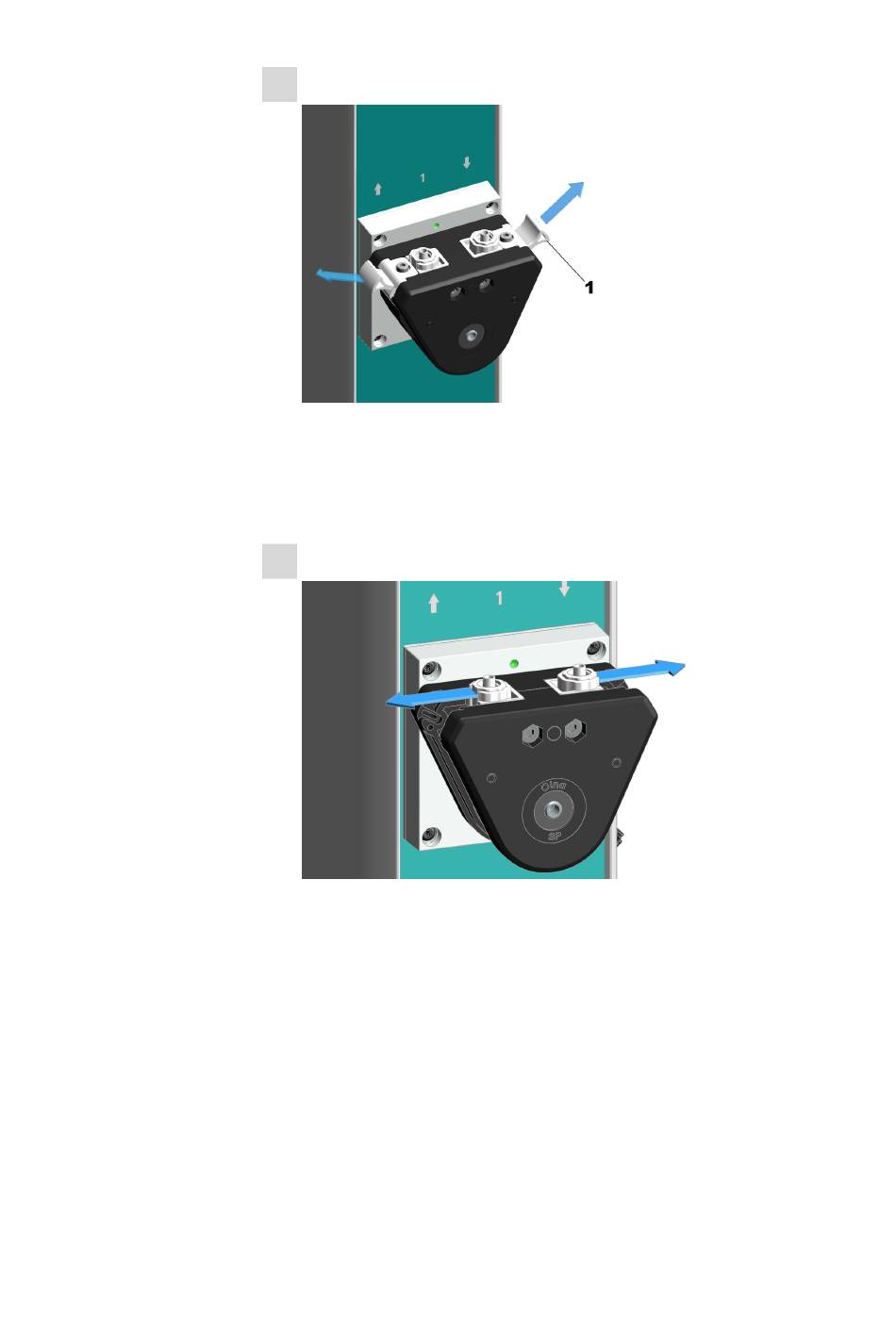

Figure 53 Removing the press clamp
Pull one side of the press clamp (1) outwards by hand.
￭
Pull off the other side.
￭
Remove the press clamp.
￭
3 Removing the pump tubing
Figure 54 Removing the pump tubing
Pull one of the connecting elements of the pump tubing outwards by
hand. Afterwards, remove the other side.
Maintenance
￭￭￭￭￭￭￭￭
79
