The slide is extended
￭
1 Removing the ring

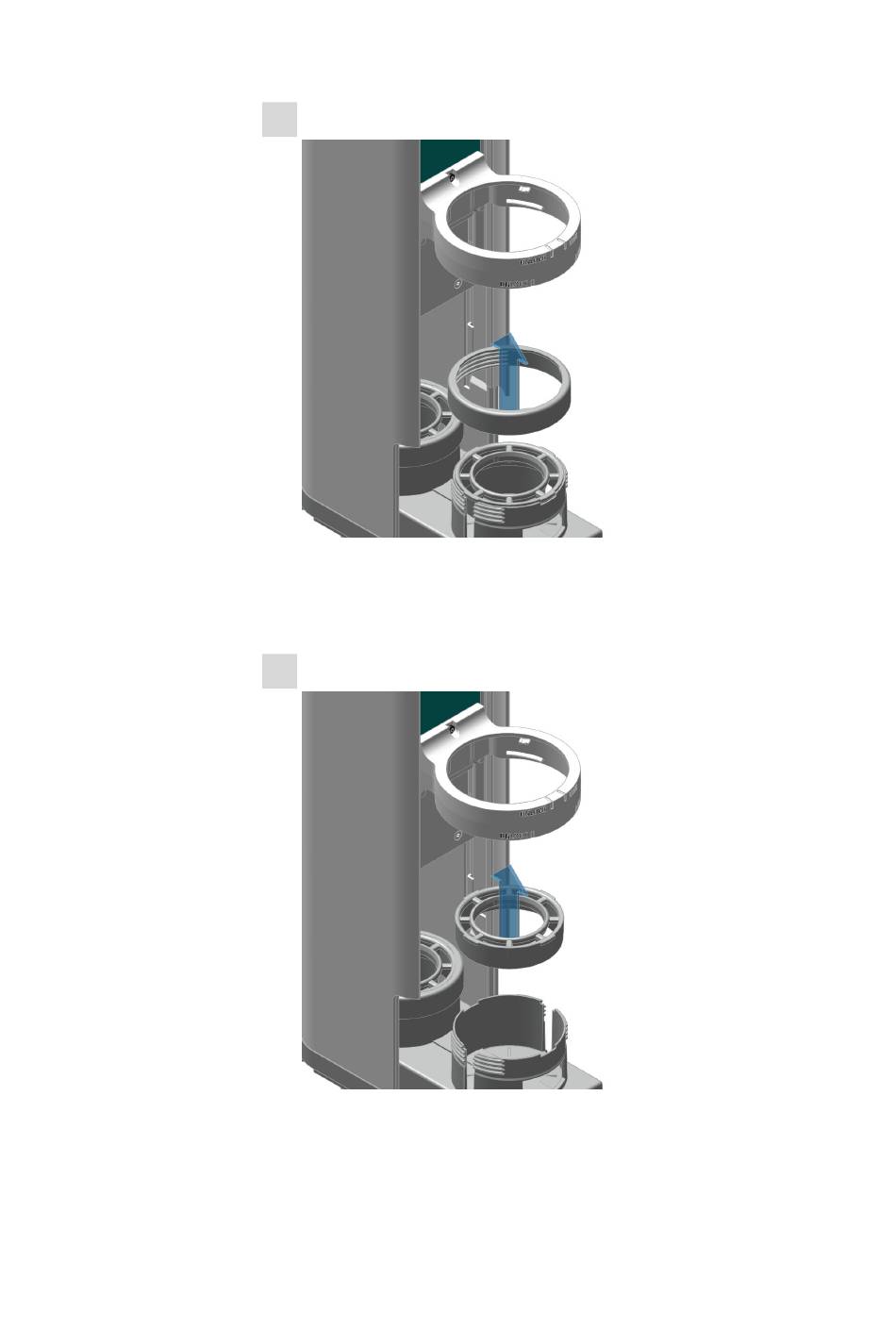

Figure 42
Removing the ring
Rotate the ring (41-2) counterclockwise by hand and remove
towards the top from the slide (41-1).
2 Removing the beaker adapter
Figure 43
Removing the beaker adapter
Remove the beaker adapter (41-3) out of the slide by hand from
above.
Maintenance
￭￭￭￭￭￭￭￭
71
