System overview

3 Functional description

3.1 System overview
3.1.1 System – Signals
Signal
￭￭￭￭￭￭￭￭
14
Visual signals
All products and components of the system that are equipped with multi-
color status displays indicate their respective status using colors and flash-
ing patterns.

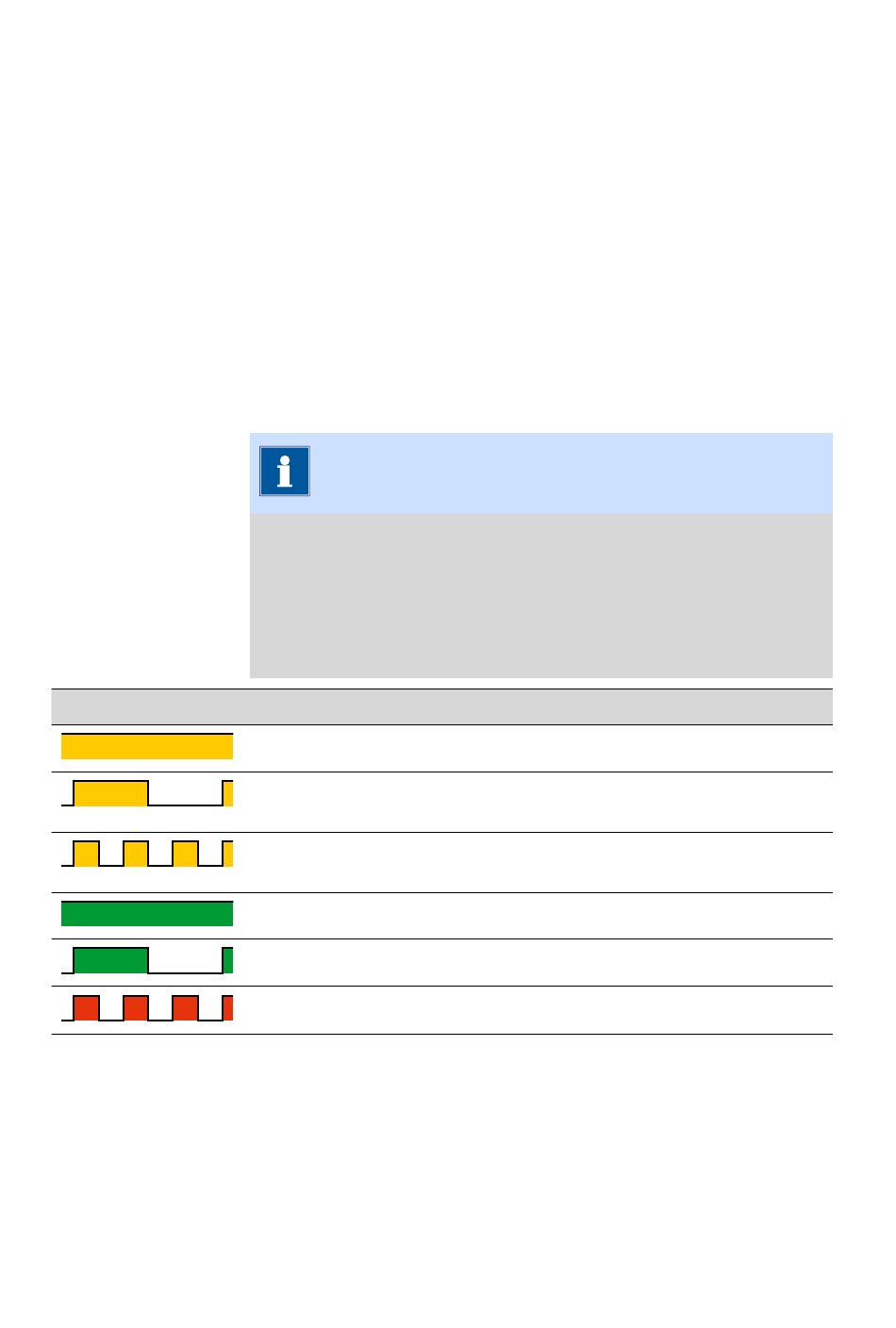

The meaning of the colors and flashing patterns is explained in the follow-
ing table.
NOTICE
Use of the flashing patterns
Not all products and components use all of the flashing patterns illus-
trated below.
However, the meaning of the flashing patterns is the same for all
products and components.
LED lights up yellow
LED flashes yellow (slowly)
LED flashes yellow (fast)
LED lights up green
LED flashes green (slowly)
LED flashes red (fast)
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
Meaning
System start or initialization
Ready for connection setup or
locking
Connection setup started or
locking underway
Ready for operation
In operation
Malfunction or error
