Connecting the tubing to the distributor of the Pick&Place module
5.6
Connecting the tubing to the distributor of the
Pick&Place module
1
Rinsing tubing
3
Distributor
5
Outlet tubing
■■■■■■■■
46

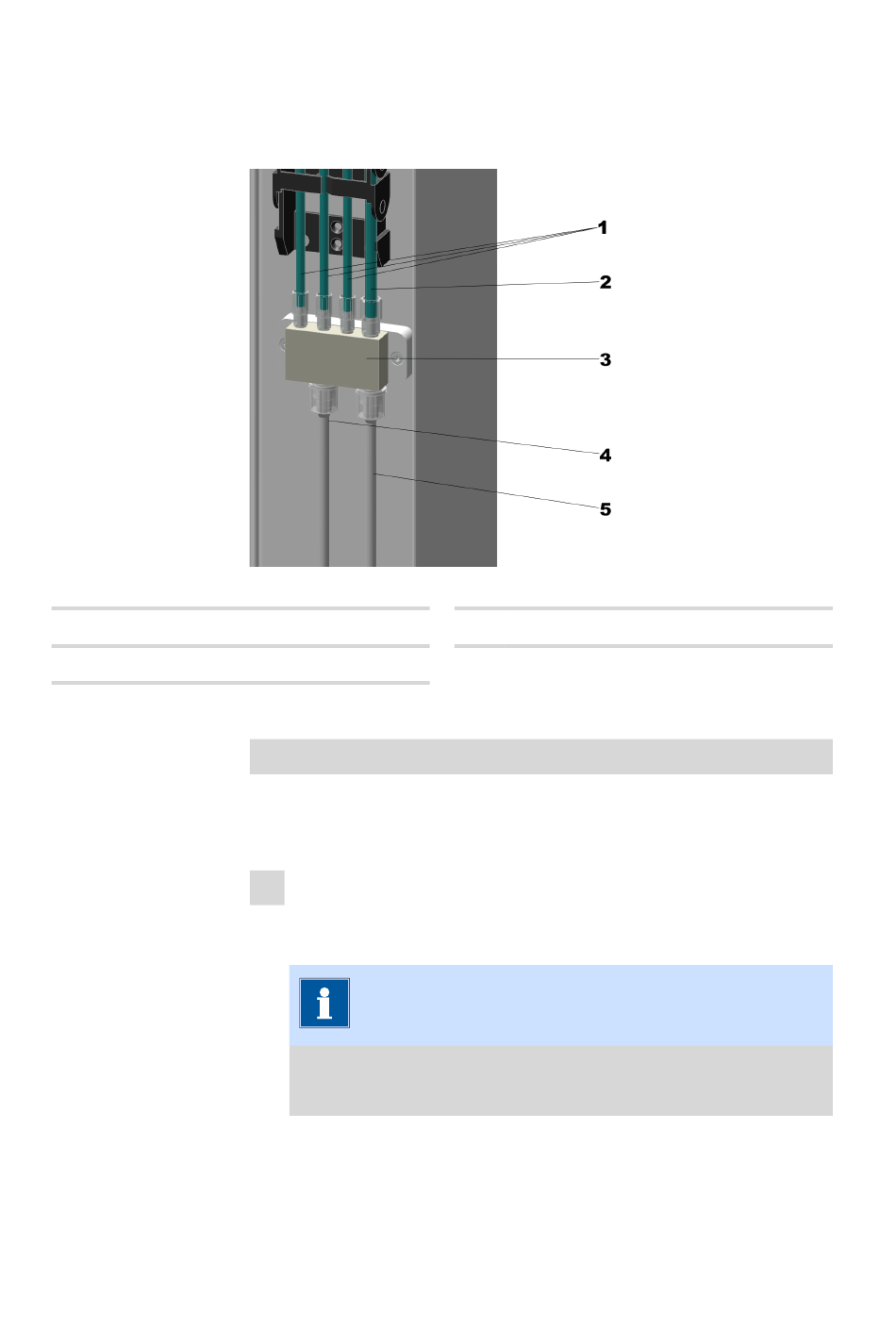

Figure 27
Connecting the tubing to the distributor
Connecting the tubing to the distributor
Prerequisites:
The sample robot is switched off
1 Connecting the rinsing tubing
Manually tighten or plug in the three rinsing tubings (27-1) in the M3
bore holes of the distributor (27-3).
NOTICE
The rinsing tubings lead to the spray nozzles of a titration head
in the Pick&Place module.
2
Aspiration tubing
4
Rinsing tubing
■■■■■■■■■■■■■■■■■■■■■■
