The safety shield is dismounted.
￭
1 Inserting the titration head
Insert the titration head (21-1) from below into the titration head
holder (21-2).
NOTICE
In case a rod stirrer is used:
The marked opening (triangle or arrow) for inserting the rod stir-
rer on the titration head should be located as close as possible to
the tower of the Pick&Place module. This ensures that the rod
stirrer is in a central position and takes up only a small amount
of space.
2 Fastening the titration head

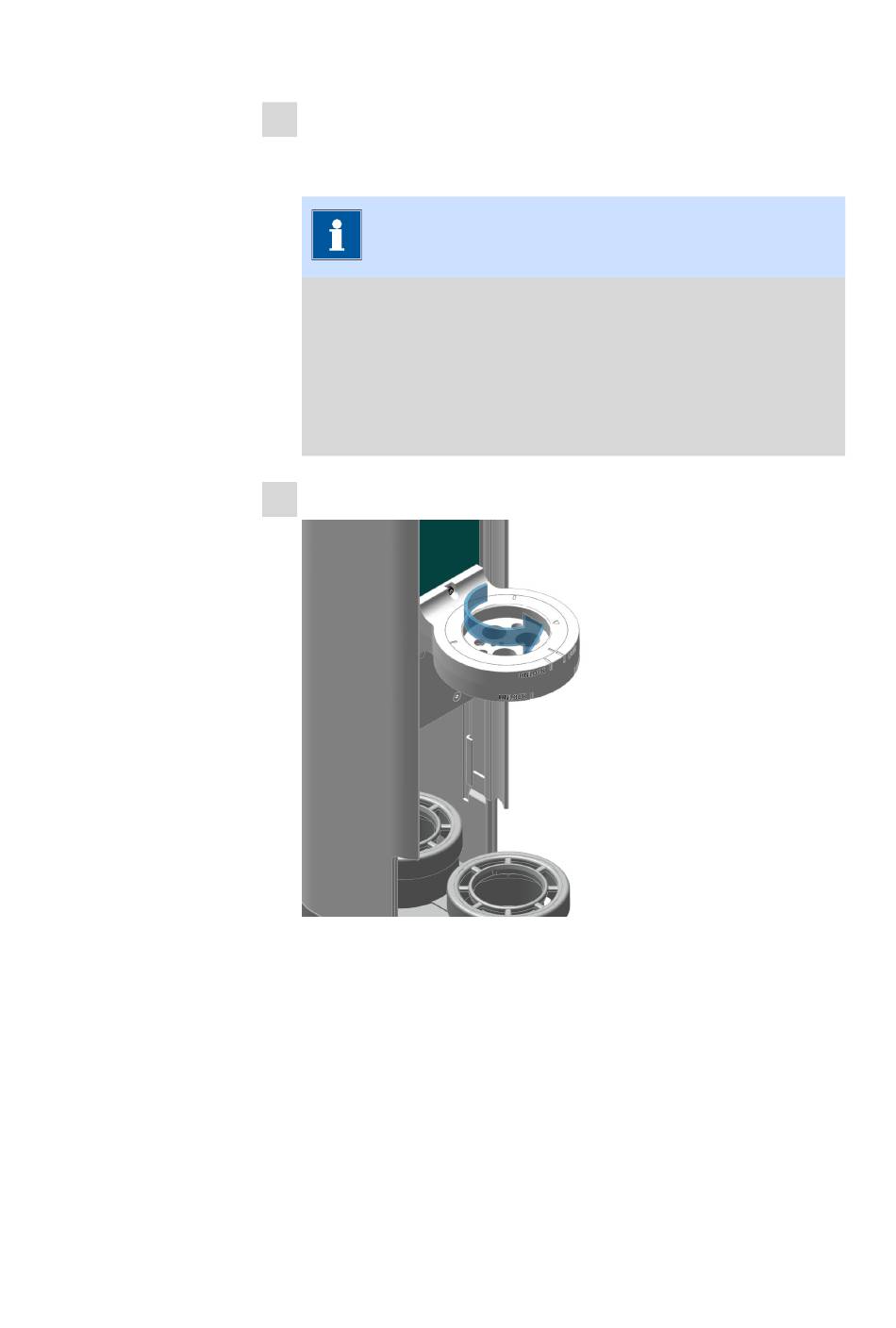

Figure 22 Fastening the titration head
Rotate the titration head by hand until the marking points to "LOCK".
