Overview – OMNIS Sample Robot Pick&Place L
3.4.3 Peristaltic pump module – Overview
1 Tubing organizer
3 Peristaltic pumps
￭￭￭￭￭￭￭￭
24
NOTICE
Extension versions
2 or 4 pumps can be mounted per pump module. In the case of the
two-way variant, the pumps are mounted on the front only and num-
bered 1 and 2. In the case of the four-way variant, 2 additional
pumps are mounted on the rear and numbered 3 and 4. Arrows indi-
cating inlet and outlet are also to be found above each peristaltic
pump next to the numbering.
Optionally, 2 additional lid trays can be installed, e.g., for applications
with covered sample beakers such as volumetric Karl Fischer titration.
Front

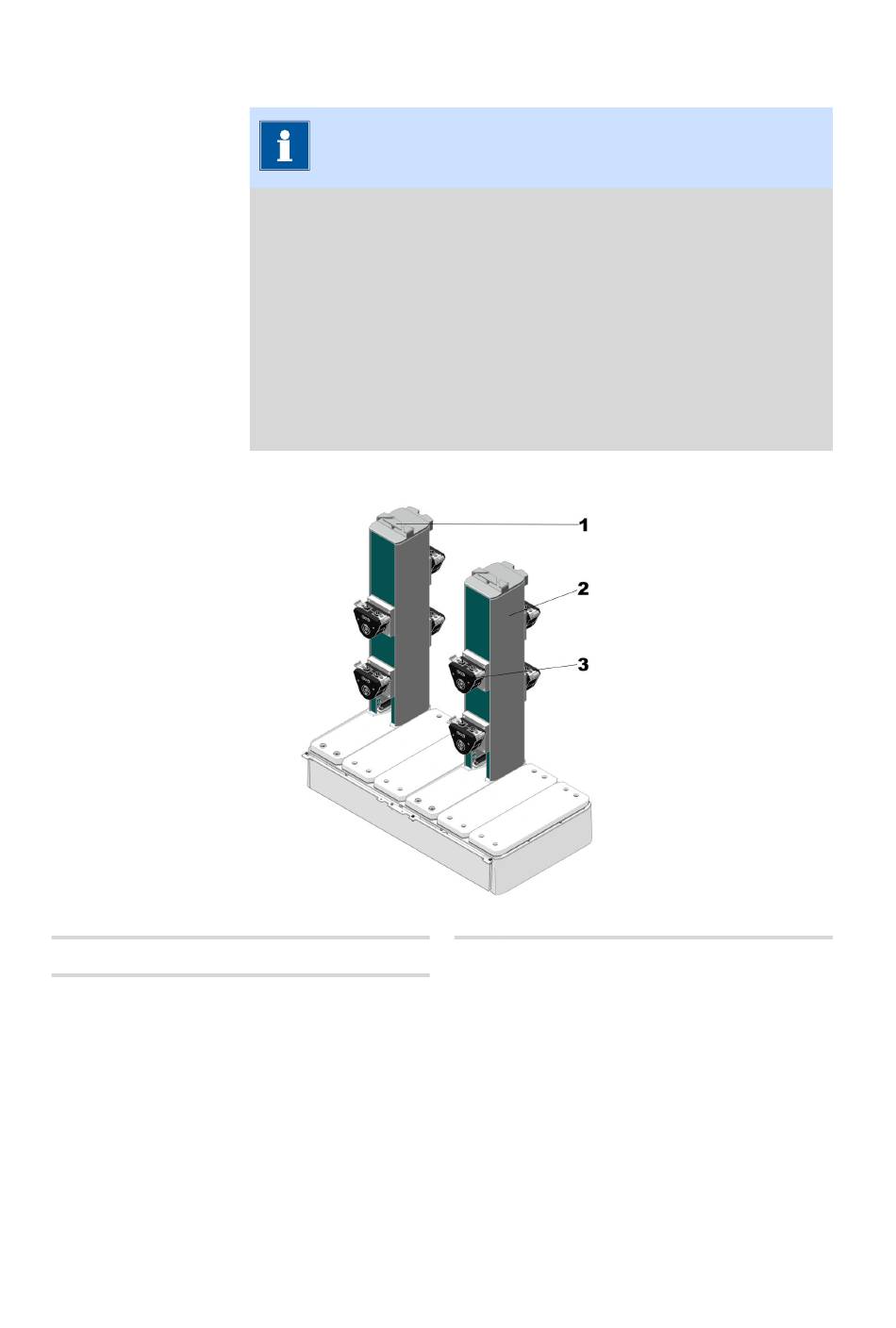

Figure 10 Front – Peristaltic pump module
2 Housing
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
