Replacing The Beaker Adapter - Metrohm OMNIS Sample Robot Pick&Place Product Manual

Checking and replacing product parts
8.4.2

Replacing the beaker adapter

1 Slide
3 Beaker adapter
￭￭￭￭￭￭￭￭
70

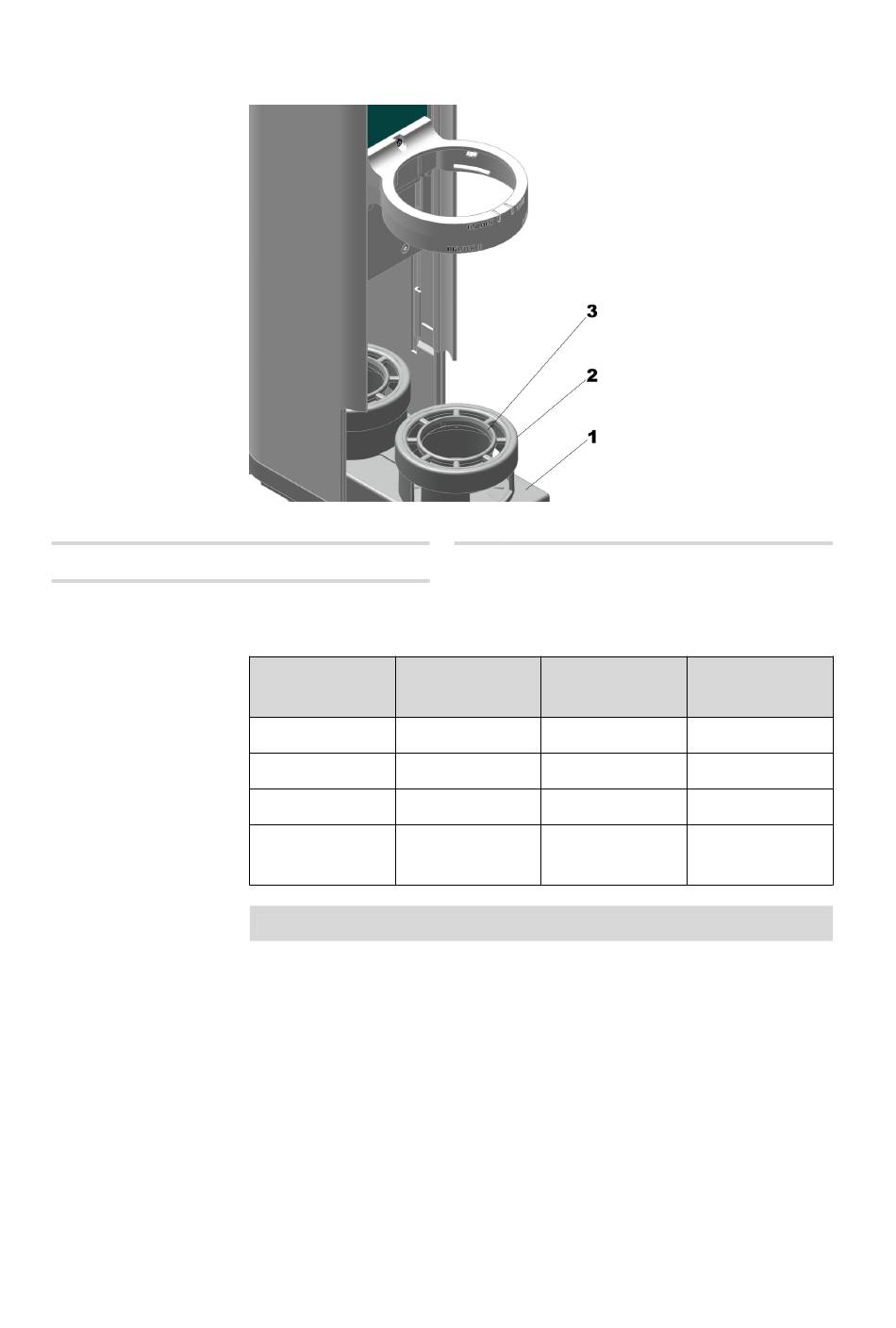

Figure 41 Replacing the beaker adapter
Table 9 Available beaker adapters and settings
Beaker vol- Beaker diam-
ume eter
75 mL 35.5 mm
120 mL 47.3 mm
200 mL 70 mm
250 mL 64.7 mm
Replacing the beaker adapter
Prerequisites:
The sample robot is switched off
￭
2 Ring
Beaker height
113 mm
113 mm
100 mm
113 mm
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
Article num-
ber
6.01404.040
6.01404.030
6.01404.020
no adapter
required
