11.4.7 Remote Mounting Kit for LCP

The LCP can be moved to the front of a cabinet by using
the remote built-in kit. The enclosure is the IP66. The
fastening screws must be tightened with a torque of max.
1 Nm.
The LCP enclosure is rated IP66
Enclosure
Max. cable length between and unit
Communication std
Table 11.15 Technical Data

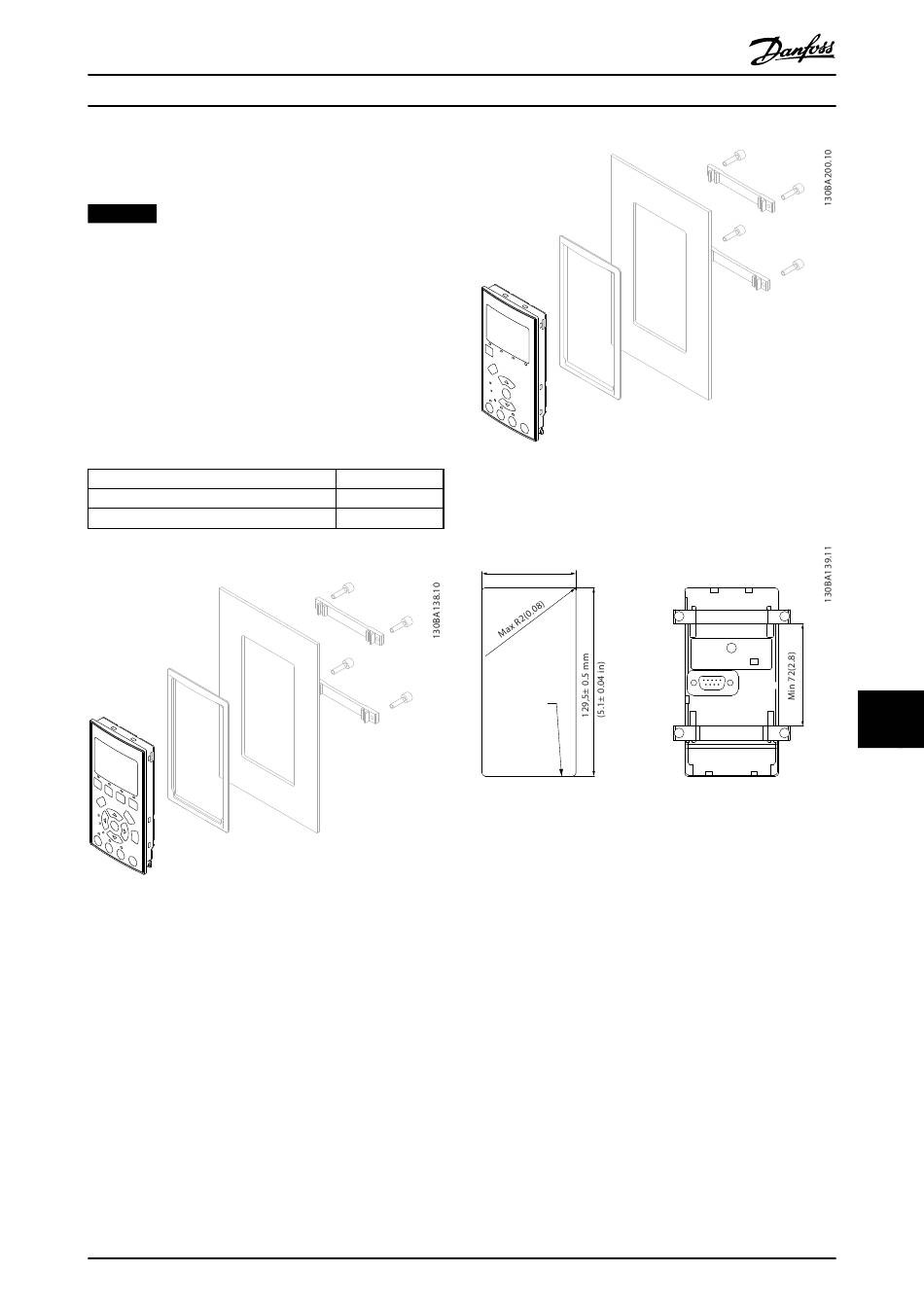

Illustration 11.27 LCP Kit with Graphical LCP, Fasteners, 3 m
Cable and Gasket
Ordering No. 130B1113
®
VLT AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
Illustration 11.28 LCP Kit with Numerical LCP, Fasteners and
Gasket
IP66 front
Ordering no. 130B1114
3 m
RS-485
64,5± 0.5 mm
(2.54± 0.04 in)
Panel
cut out
Illustration 11.29 Dimensions
